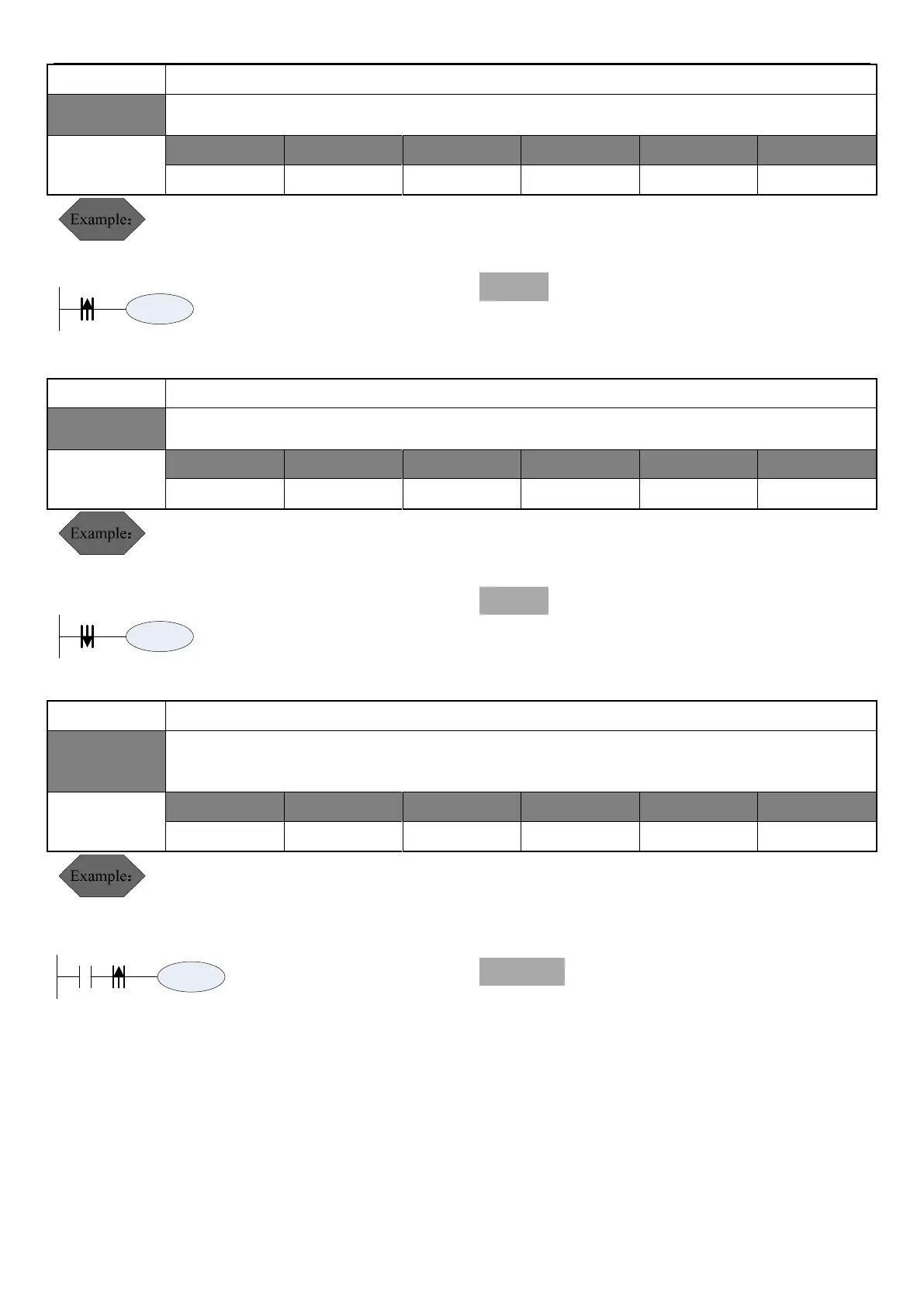

Shihlin electric SF3 Series User Manual

Command
Function
LDP
Connect the contacts to the bus bar. It is used to trigger the logic line of the start of the contact on the
rising edge.
Operand
X
Y
M
T
C
D
OK
OK
OK
OK
OK
NO
Ladder： Command：
LDP X0
OUT Y0
Command
Function
LDF
Connect the contacts to the bus bar. It is used to trigger the logic line at the beginning of the contact at
the falling edge.
Operand
X
Y
M
T
C
D
OK
OK
OK
OK
OK
NO
Ladder： Command：
LDF X0
OUT Y0
Command
Function
ANDP
Used for rising edge trigger contacts to connect in series. Perform an AND operation between the
current state of the serial connection point and the logical result before the connection point, and store
the operation result.
Operand
X
Y
M
T
C
D
OK
OK
OK
OK
OK
NO
Ladder： Command：
LD X0
ANDP X1
OUT Y0
X0
Y0
X0
Y0
X1
Y0
X0
