Shihlin electric SF3 Series User Manual

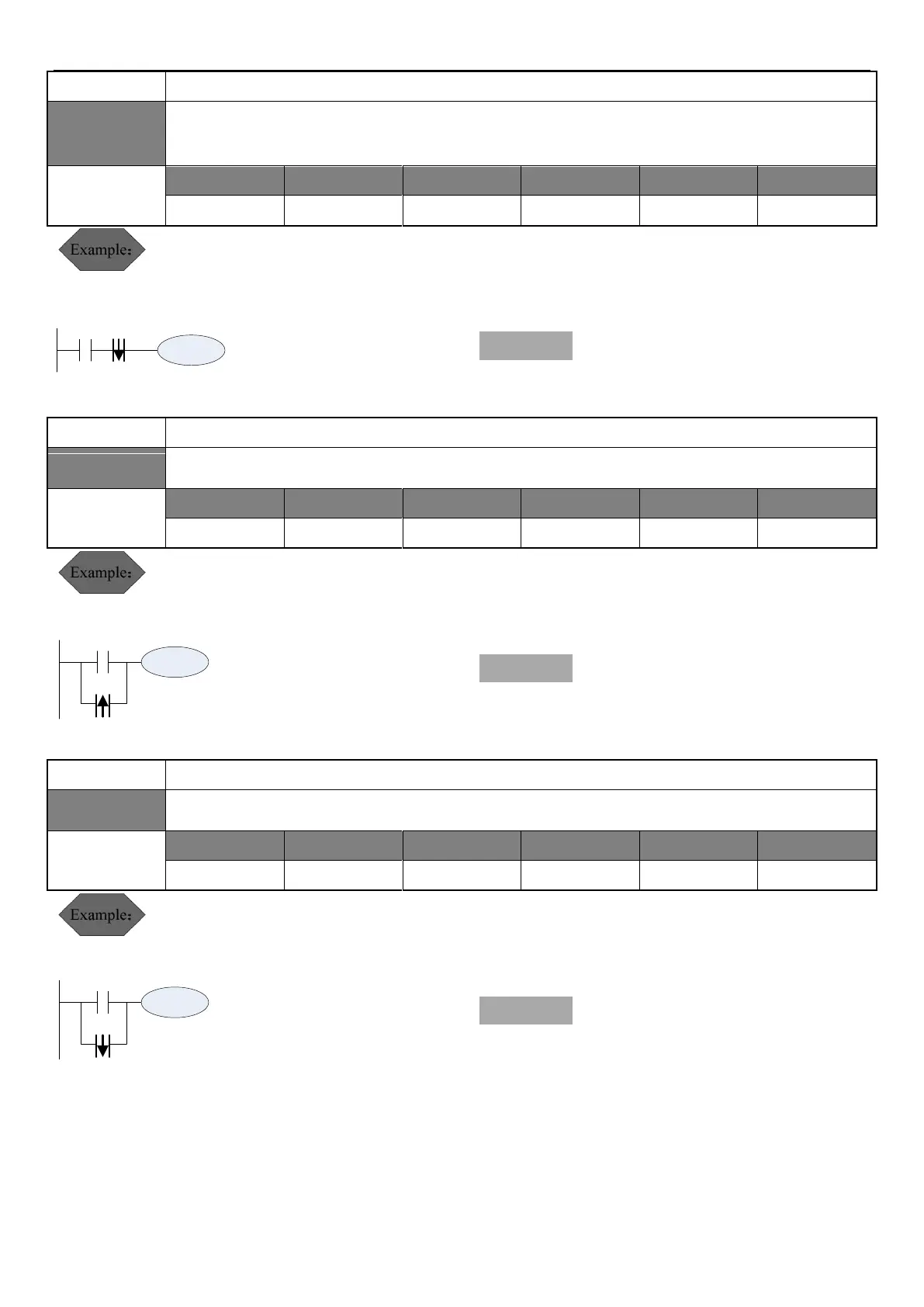

Command
Function
ANDF
Used for falling edge trigger contacts to connect in series. Perform an AND operation between
the current state of the serial connection point and the logical result before the connection point,
and store the operation result.
Operand
X
Y
M
T
C
D
OK
OK
OK
OK
OK
NO
Ladder： Command：
LD X0
ANDF X1
OUT Y0
Command
Function
ORP
Used for the parallel connection of the rising edge trigger contacts. The logical result of the parallel
connection point is subjected to an "or" operation, and the operation result is stored.
Operand
X
Y
M
T
C
D
OK
OK
OK
OK
OK
NO
Ladder： Command：
LD X0
ORP X1
OUT Y0
Command
Function
ORF
Used for the parallel connection of falling edge trigger contacts. The logical result of the parallel
connection point is subjected to an "or" operation, and the operation result is stored.
Operand
X
Y
M
T
C
D
OK
OK
OK
OK
OK
NO
Ladder： Command：
LD X0
ORP X1
OUT Y0
X1
Y0
X0
X0
Y0
X1
X0
Y0
X1
