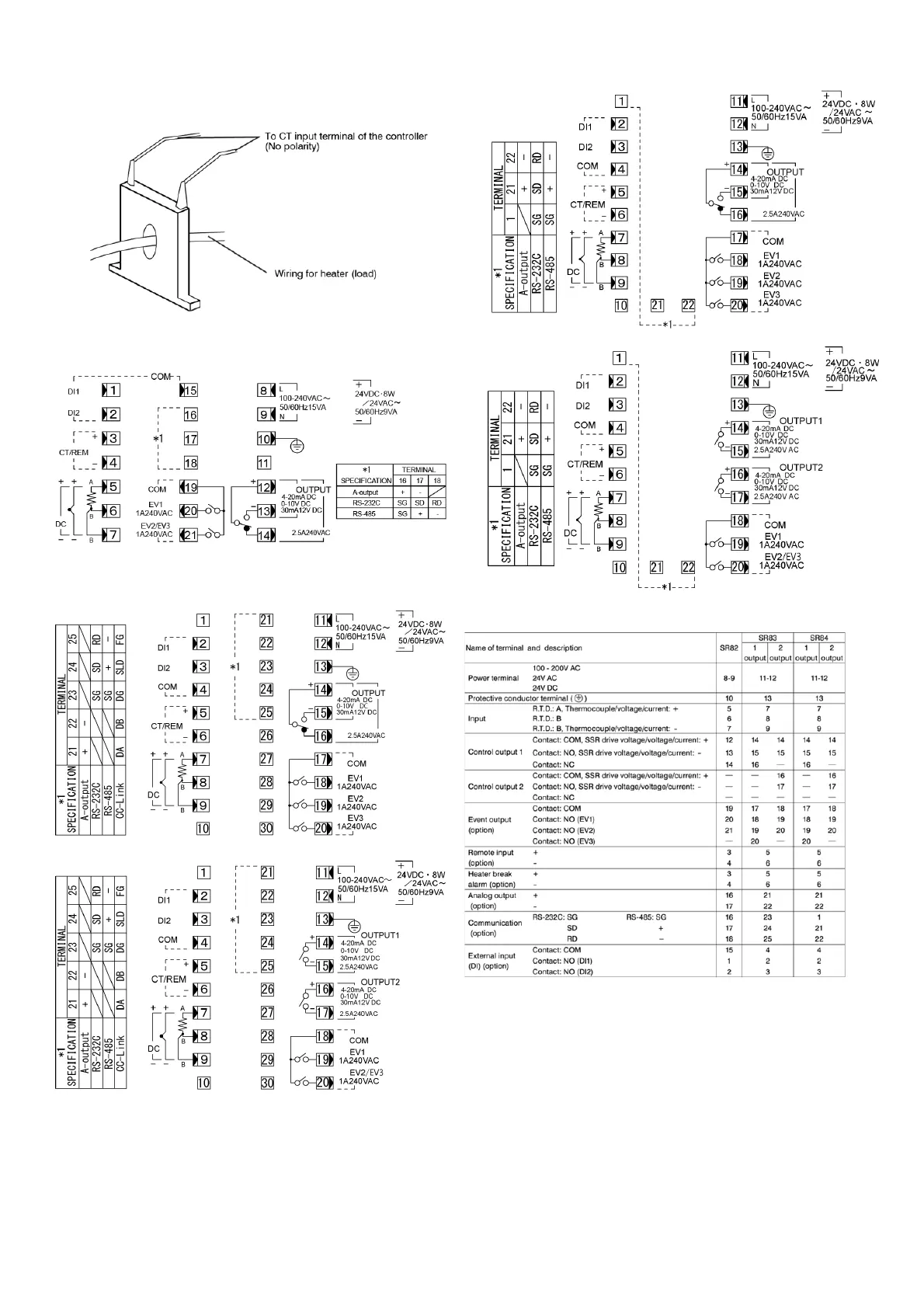

(11) Connection of current transformer (CT):
Pass one load wire through the hole specifically provided or CT.
CT terminals on the secondary side are wired to the CT input
terminal of the SR80 controller.
ʹǦͷǤ
(1) SR82
(2) SR83
1 Output
2 Output
(3) SR84
1 Output
2 Output
ʹǦ͸Ǥ

