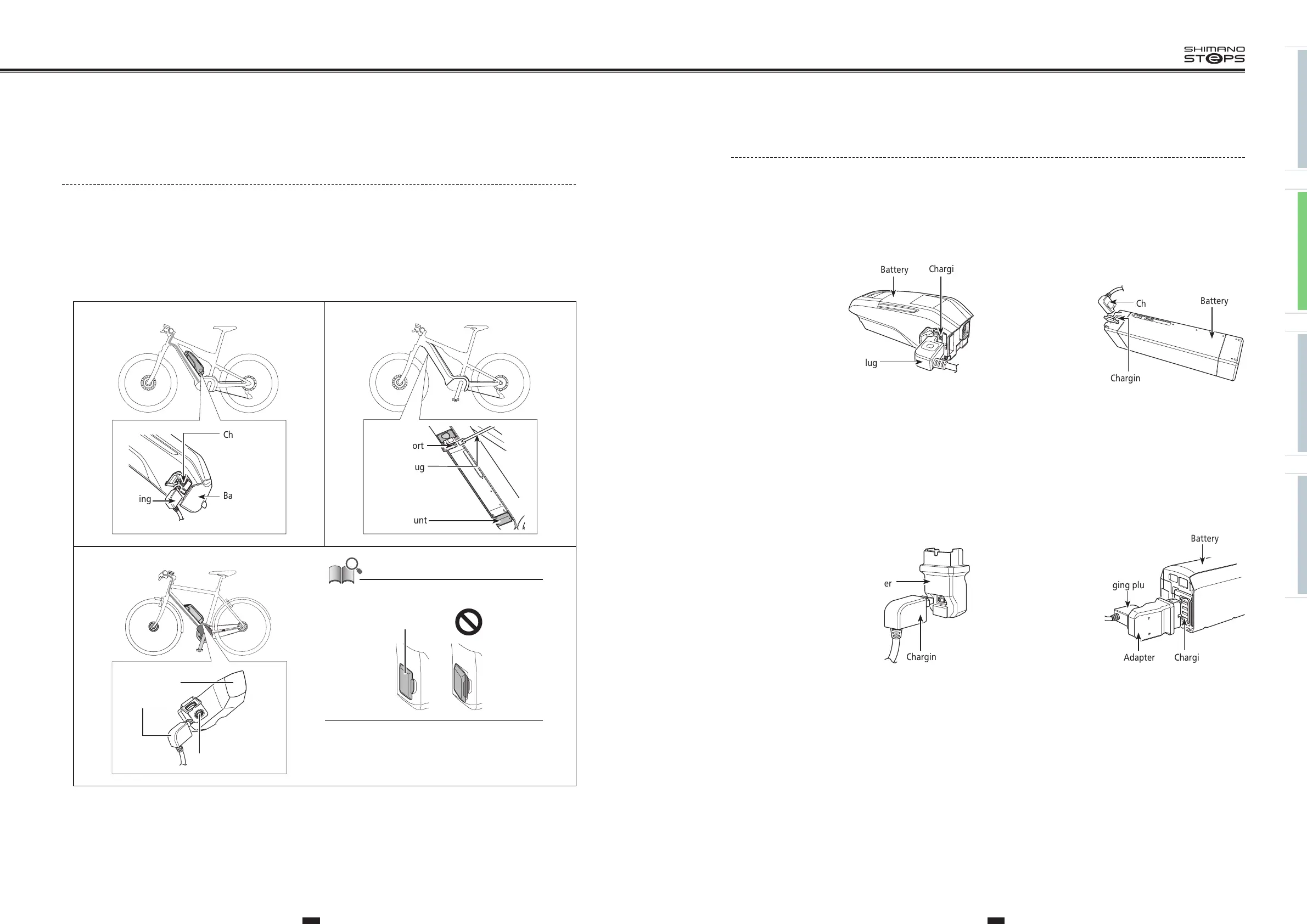

Charging the Battery while Installed onto
the Bicycle
Battery charger: EC-E6000
Battery: BT-E8010/BT-E8020/BT-E6010
1. Connect the charger’s power plug to the outlet.
2.
Insert the charging plug into the battery mount charging port.
* Place the battery charger on a steady surface such as the floor before charging.
*
Stabilize the bicycle to ensure that it does not collapse during charging.
BT-E8010
Battery mount
Charging port
Charging
plug
BT-E8020
Battery mount
Charging plug
Charging port
BT-E6010
Charging plug
Battery mount
Charging port
Make sure that the charging port cap is closed securely.
Charging port cap
When Charging the Battery Alone
Battery charger: EC-E6000
Battery: BT-E8010/BT-E8020
1. Connect the battery charger’s power plug to the outlet.
2.
Insert the charging plug into the battery's charging port.
Charge the battery on a flat surface indoors.
Charging plug
Battery
Charging port
<BT-E8010> <BT-E8020>
Charging plug
Battery
Charging port
Battery charger: EC-E6000
Battery: BT-E6010
1. Attach the adapter to the charging plug.
2.
Plug the charger’s power plug into the outlet.
3.
Plug the adapter into the battery’s charging port.
• When inserting the adapter into the charging port, insert it so that the charging plug is positioned below the adapter. The adapter cannot
be inserted if the charging plug is above the adapter.
•
Charge the battery on a flat surface indoors.
Adapter
Charging plug
Battery
Adapter Charging port
Charging plug
<BT-E6010>
