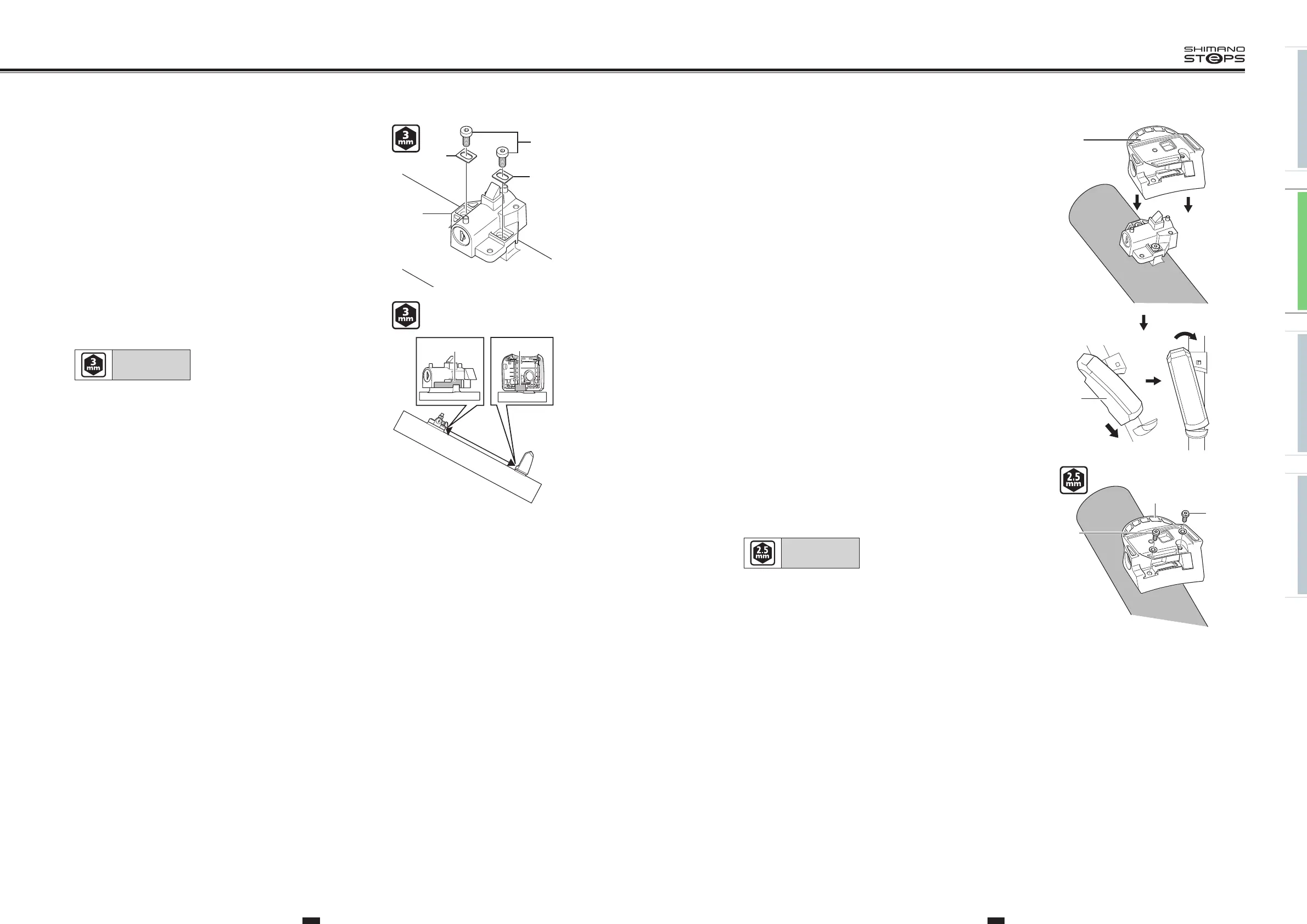

5. Temporarily attach the key unit cover to the key unit and adjust
so that the battery can be smoothly connected/disconnected and
no noise is produced due to looseness during riding.
(A)
Key unit cover
(B)
Battery
(A)
(B)
6. Secure the key unit cover with the key unit cover fixing bolts
(M4).
(A)
Key unit cover
(B)
Key unit cover fixing bolt (M4)
Tightening torque:
0.6 N·m
(A)
(B)
(B)
3. Temporarily attach the key unit with the key unit fixing bolts
(M5).
(A)
Key unit:
Key unit is not included with
Shimano products.
(B)
Key unit fixing bolt (M5)
(C)
Washer
(C)
(A)
(C)
(B)
4. Adjust the position of the key unit so that the distance between
section (A) of the key unit and section (B) of the mount lower
case is 224.4mm and then fully tighten the key unit fixing bolts.
Tightening torque:
3 N·m
224.4mm
(B)(A)
