E8000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT
BM-E8020

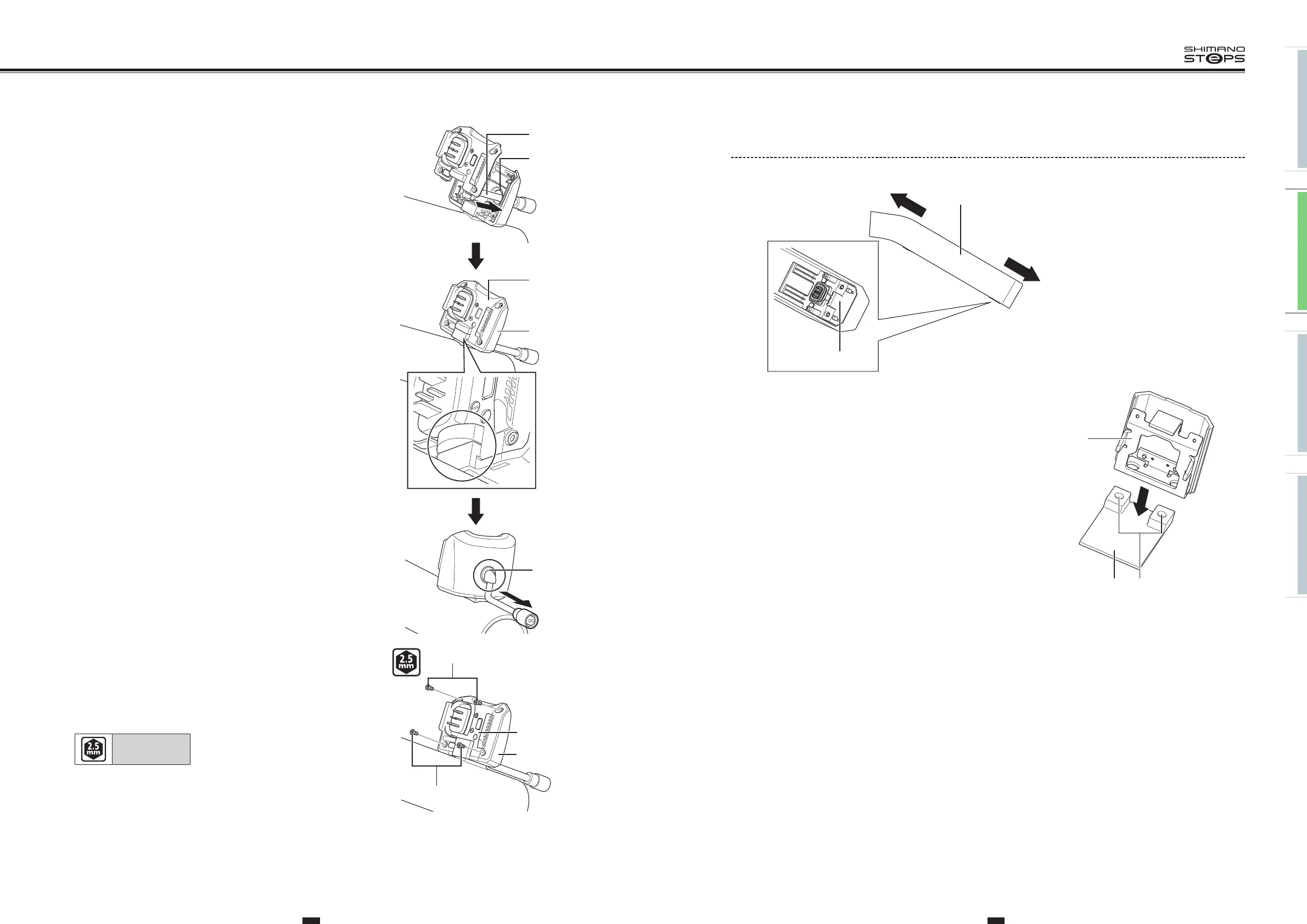

Assembly of the battery connection unit
(A)
(C)
(y)
(z)
(B)
(y)
Front of bicycle
(z)
Rear of bicycle
(A)
Frame
(B)
Battery connection unit
(C)
Mount upper case and mount
lower case when assembled
1. Align the frame mounting holes with the bolt holes in the mount
lower case.
(A)
Mount lower case
(B)
Frame
(C)
Frame mounting holes
(A)
(B) (C)
7. Route the battery cable through the cable routing hole.
Align the protruding parts of the mount upper case and mount
lower case.
Pull the battery cable until the rubber bush is implanted in the
cable routing hole.
(A)
Battery cable
(B)
Cable routing hole
(C)
Mount upper case
(D)
Mount lower case
(E)
Rubber bush
(A)
(B)
(C)
(E)
(D)
8. Tighten on the mount upper case using the mount upper case
fixing bolts (M3).
(A)
Mount upper case
(B)
Mount lower case
(C)
Mount upper case fixing bolt (M3)
Tightening torque:
0.6 N·m
(A)
(B)
(C)
(C)
