E8000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT

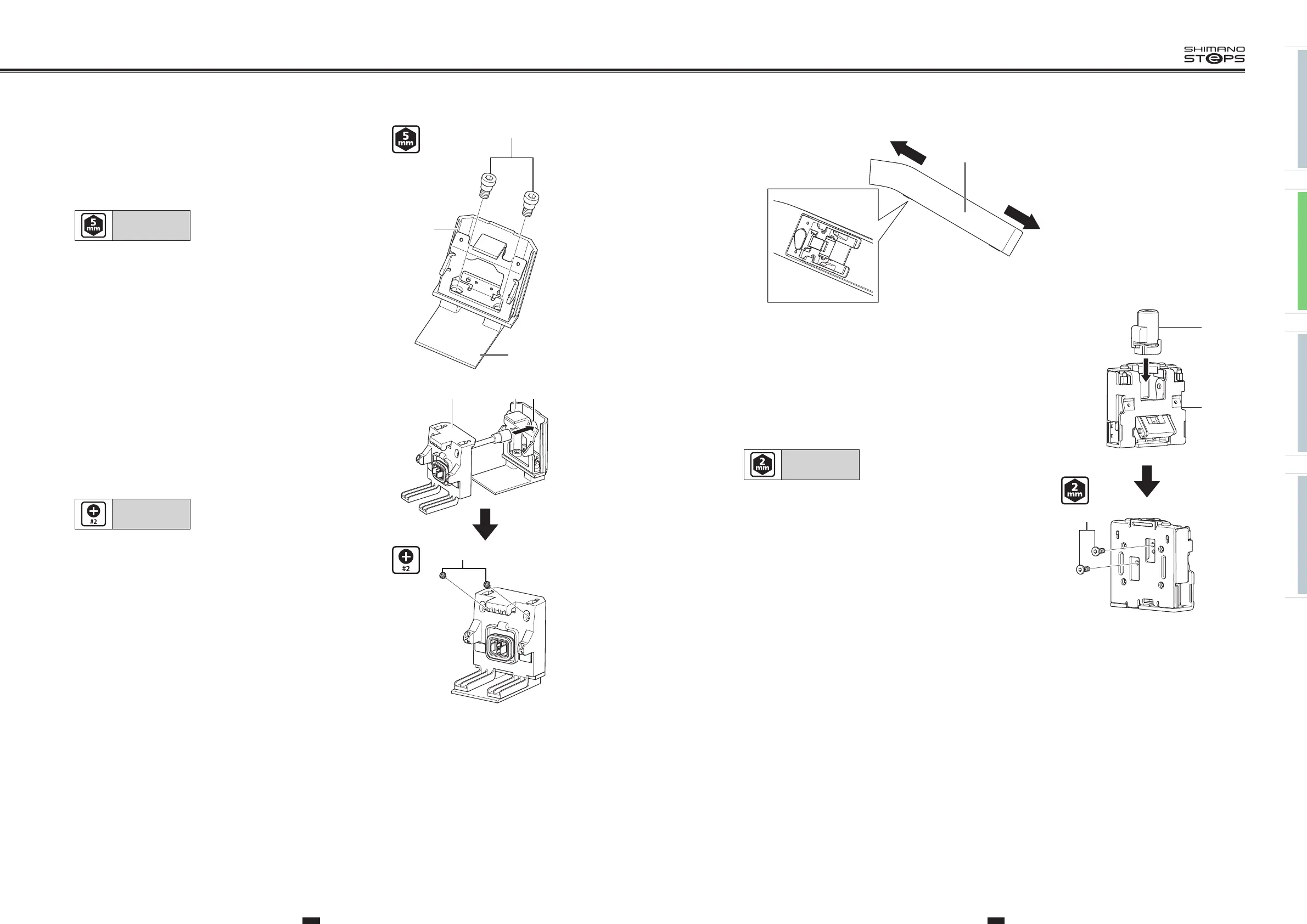

Assembly of the key unit
(A)
(y)
(z)
(B)
(y)
Front of bicycle
(z)
Rear of bicycle
(A)
Frame
(B)
Key unit
4. Insert the key cylinder into the key unit.
Secure the key cylinder in place by tightening the key cylinder
fixing bolts (M4) from the reverse side of the key unit.
(Z)
Reverse side of key unit
(A)
Key cylinder:
Key cylinder is not included with
Shimano products.
(B)
Key unit
(C)
Key cylinder fixing bolt (M4)
Tightening torque:
0.6 N·m
(C)
(Z)
(A)
(B)
2. Secure the mount lower case to the frame by the tightening the
mount fixing bolts (M8).
(A)
Mount fixing bolt (M8)
(B)
Mount lower case
(C)
Frame
Tightening torque:
10 N·m
(A)
(B)
(C)
3. Route the battery cable through the cable routing hole in the
mount lower case and then tighten on the mount upper case
using the mount upper case fixing bolts (M3).
(A)
Mount upper case
(B)
Mount lower case
(C)
Cable routing hole
(D)
Mount upper case fixing bolt (M3)
Tightening torque:
0.6 N·m
(A)
(D)
(B) (C)
