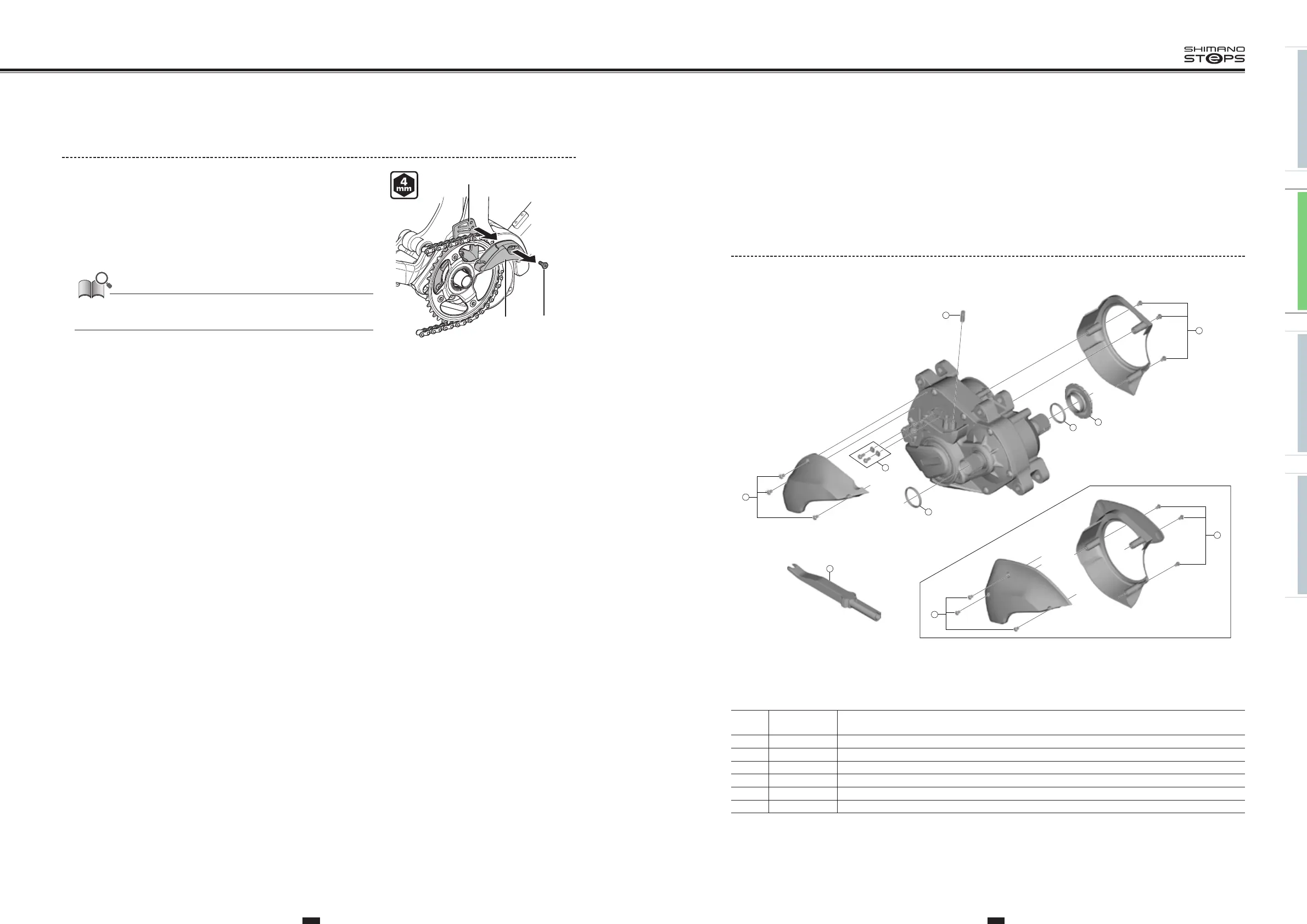

EXPLODED VIEW
See our website at http://si.shimano.com for the latest information.
DU-E8000
Drive Unit
SM-DUE80
Drive Unit Cover
Drive Unit
DU-E8000
SM-DUE80
Drive Unit Cover
SHIMANO
CODE NO.
DESCRIPTION
1 Y6VE15000 Dummy Plug
2 Y72F98010 Screw (2 pcs.) & Nut (2 pcs.)
3 Y72F00018 SPACER SPINDLE
4 Y72F00002 LOCK RING
5 Y6VE16000 TL-EW02 Plug Tool
6 Y72G98010 Caver Fixing Bolts (3 pcs.)
Oct.-2016-4067
© Shimano Inc. I
Specifications are subject to change without notice.
28L21000000-6101-006
28L22000000-6101-007
ITEM
NO.
SM-DUE80-B
SM-DUE80-A
SM-DUE80-A
3
3
2
4
5
6
6
6
6
1
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y6VE15000 Dummy Plug
2 Y72F98010 Screw (2 pcs.) & Nut (2 pcs.)
3 Y72F00018 SPACER SPINDLE
4 Y72F00002 LOCK RING
5 Y6VE16000 TL-EW02 Plug Tool
6 Y72G98010 Caver Fixing Bolts (6 pcs.)
Mar.-2017-4067
© Shimano Inc. I
Replacing the Guide of the Chain Device
1. Loosen the guide fixing bolt (M5) to remove the guide from the
back plate, and then replace it.
(A)
Guide
(B)
Guide fixing bolt (M5)
(C)
Back plate
A chain device cannot be used with SM-CRE80
(44T CL: 50mm Double chain guard).
(B)
(C)
(A)
