E8000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT
SM-CDE80
Chian Device
Chian Device
SM-CDE80
SHIMANO
CODE NO.
DESCRIPTION
1 Y1VV00005 Bolt M5
2 Y1VV98010 Back Plate Fixing Bolts (3 pcs.)
3 Y1VV00001 Back Plate
Aug.-2016-4151
© Shimano Inc. I
Specifications are subject to change without notice.
28L21000000-6101-006
28L22000000-6101-007
ITEM
NO.
3
2
1
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y1VV00005 Bolt M5
2 Y1VV98010 Back Plate Fixing Bolts (3 pcs.)
3 Y1VV00001 Back Plate
Jan.-2017-4151
© Shimano Inc. I
FC-E8050 FC-E8000
SM-CRE80 SM-CRE80-B

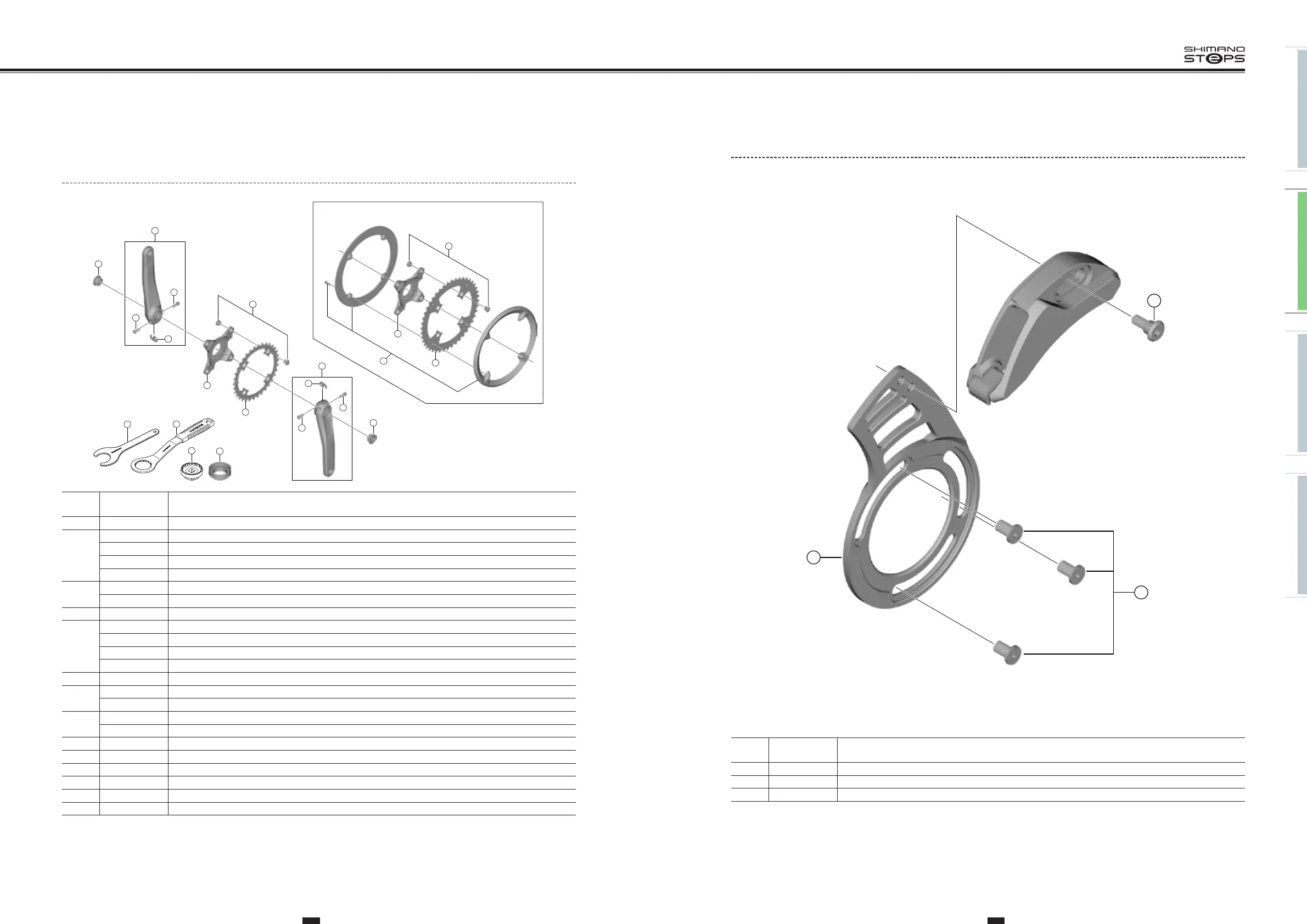

E8000 Series Crankset
E8000 Series Crankset
FC-E8050 FC-E8000
SM-CRE80 SM-CRE80 -B
SHIMANO
CODE NO.
DESCRIPTION
1 Y1F811100 Crank Arm Fixing Bolt
Y1VW98010 Left Hand Crank Arm Unit 170 mm for FC-E8050
Y1VW98020 Left Hand Crank Arm Unit 175 mm for FC-E8050
Y1VX98010 Left Hand Crank Arm Unit 170 mm for FC-E8000
Y1VX98020 Left Hand Crank Arm Unit 175 mm for FC-E8000
Y1KS98030 Clamp Bolt (M6 x 19) & Washer for FC-E8050
Y1GS00030 Clamp Bolt (M6 x 19) for FC-E8000
4 Y1FU98120 Plate
Y1VW98030 Right Hand Crank Arm Unit 170 mm for FC-E8050
Y1VW98040 Right Hand Crank Arm Unit 175 mm for FC-E8050
Y1VX98030 Right Hand Crank Arm Unit 170 mm for FC-E8000
Y1VX98040 Right Hand Crank Arm Unit 175 mm for FC-E8000
6 Y1VY98010 Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) & Nut (1 Unit = 4 pcs.)
Y1VY00010 4 Arm Adapter (SM-CRE80)
Y1VY00020 4 Arm Adapter (SM-CRE80-B)
Y1VY00030 Chainring 34T (SM-CRE80/SM-CRE80-B)
Y1VY00040 Chainring 38T (SM-CRE80/SM-CRE80-B)
9 Y13009210 TL-FC32 Adapter Tool
10 Y13098000 TL-FC36 Adapter Tool
11 Y13009230 TL-FC33 Adapter Tool
12 YEZY00016 TL-FC39 FC Installation Tool
13 Y1VY44000 Chainring 44T (SM-CRE80)
14 Y1VY98020 44T Double Chain Guard Unit
Feb.-2017-4068
© Shimano Inc. I
Specifications are subject to change without notice.
28L21000000-6101-006
28L22000000-6101-007
5
ITEM
NO.
7
8
2
3
J
A
P
A
N
T
L
-
F
C
3
2
T
L
-
F
C
3
6
T
A
I
W
A
N
9
8
7
7
5
2
6
6
4
3
3
3
3
1
1
10
11
12
13
14
4
44T Double Chain Guard
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y1F811100 Crank Arm Fixing Bolt
2
Y1VW98010 Left Hand Crank Arm Unit 170 mm for FC-E8050
Y1VW98020 Left Hand Crank Arm Unit 175 mm for FC-E8050
Y1VX98010 Left Hand Crank Arm Unit 170 mm for FC-E8000
Y1VX98020 Left Hand Crank Arm Unit 175 mm for FC-E8000
3
Y1KS98030 Clamp Bolt (M6 x 19) & Washer for FC-E8050
Y1GS00030 Clamp Bolt (M6 x 19) for FC-E8000
4 Y1FU98120 Plate
5
Y1VW98030 Right Hand Crank Arm Unit 170 mm for FC-E8050
Y1VW98040 Right Hand Crank Arm Unit 175 mm for FC-E8050
Y1VX98030 Right Hand Crank Arm Unit 170 mm for FC-E8000
Y1VX98040 Right Hand Crank Arm Unit 175 mm for FC-E8000
6 Y1VY98010 Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) & Nut (1 Unit = 4 pcs.)
7
Y1VY00010 4 Arm Adapter (SM-CRE80)
Y1VY00020 4 Arm Adapter (SM-CRE80-B)
8
Y1VY00030 Chainring 34T (SM-CRE80/SM-CRE80-B)
Y1VY00040 Chainring 38T (SM-CRE80/SM-CRE80-B)
9 Y13009210 TL-FC32 Adapter Tool
10 Y13098000 TL-FC36 Adapter Tool
11 Y13009230 TL-FC33 Adapter Tool
12 YEZY00016 TL-FC39 FC Installation Tool
13 Y1VY44000 Chainring 44T (SM-CRE80)
14 Y1VY98020 44T Double Chain Guard Unit
Feb.-2017-4068
© Shimano Inc. I
