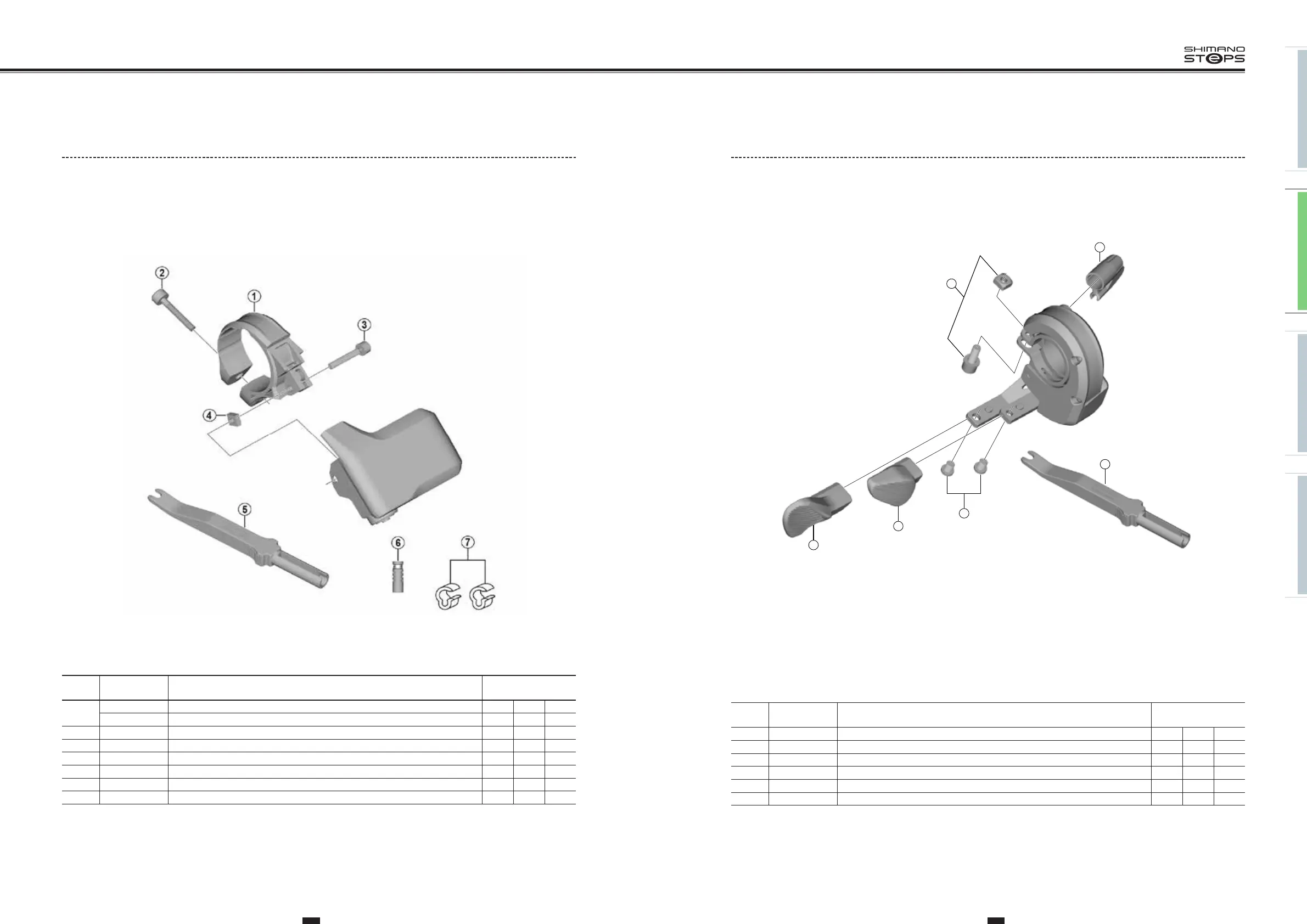

SW-E8000-L
Switch Unit for Assist
Switch Unit for Assist
SW-E8000
-L
S
W
-
M
8
0
5
0
ITEM
NO.
INTERCHANGE-
ABILITY
SHIMANO
CODE NO.
DESCRIPTION
1 Y0B200019 Cable Cap
A
2 Y0B298010 Clamp Bolt (M4 x 12) & Nut
A
3 Y01W98010 Lever Slide Fixing Bolt (2 pcs.)
A
4 Y0B300010 A Lever L
A
5 Y0B300002 B Lever L
A
6 Y6VE16000 TL-EW02 Plug Tool
A
A: Same parts.
Aug.-2016-4066
©
Shimano Inc. I
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
28L21000000-6101-006
28L22000000-6101-007
ITEM
NO.
INTERCHANGE-
ABILITY
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
3
4
5
1
2
6
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
INTERCHANGE-
ABILITY
1 Y0B200019 Cable Cap A
2 Y0B298010 Clamp Bolt (M4 x 12) & Nut A
3 Y01W98010 Lever Slide Fixing Bolt (2 pcs.) A
4 Y0B300010 A Lever L A
5 Y0B300002 B Lever L A
6 Y6VE16000 TL-EW02 Plug Tool A
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
May.-2017-4066
© Shimano Inc. I
SW-M8050
SC-E8000
E8000 Series System Information Display
E8000 Series System Information Display
SC-E8000
S
C
-
M
T
8
0
0
SHIMANO
CODE NO.
DESCRIPTION
Y71F00002 Stay A (φ31.8)
A
Y71F00003 Stay B (φ35)
A
2 Y7GC00700 Stay Fixing Bolt
A
3 Y72K00002 Case Fixing Bolt
4 Y7GC00600 Case Nut
A
5 Y6VE16000 TL-EW02 Plug Tool
A
6 Y6VE15000 Dummy Plug
A
*7 Y70H98040 Band A (2 pcs.)
A: Same parts.
Feb.-2017-4069A
B: Parts are usable, but differ in materials, appearance, finish, size, etc. ©
Shimano Inc. I
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
ITEM
NO.
INTERCHANGE-
ABILITY
1
S
C
-
M
T
8
0
0
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
INTERCHANGE-
ABILITY
1
Y71F00002 Stay A (Ø31.8) A
Y71F00003 Stay B (Ø35) A
2 Y7GC00700 Stay Fixing Bolt A
3 Y72K00002 Case Fixing Bolt
4 Y7GC00600 Case Nut A
5 Y6VE16000 TL-EW02 Plug Tool A
6 Y6VE15000 Dummy Plug A
*
7 Y70H98040 Band A (2 pcs.)
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Feb.-2017-4069A
© Shimano Inc. I
