E8000 Series
E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT

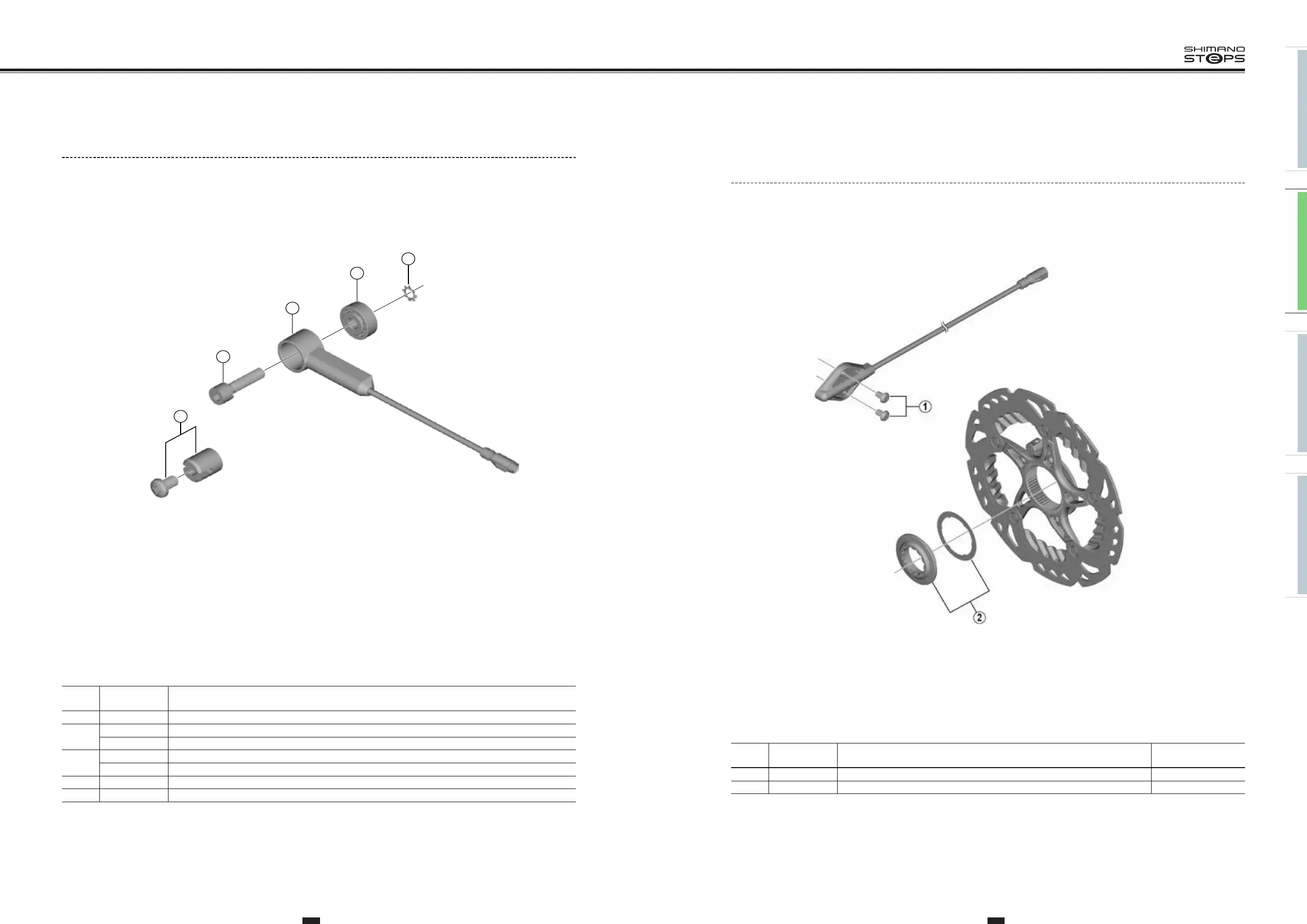

SM-DUE11
Speed Sensor Unit
RT-EM900/EM800
Disc Brake Rotor
E8000 Series Speed Sensor Unit
SM-DUE11
RT-EM900/EM800
Disc Brake Rotor
SHIMANO
CODE NO.
DESCRIPTION
1
Y72J98010
Speed Sensor Fixing Bolt (M3) 2 pcs.
2
Y8K198010
Lock Ring & Washer
A: Same parts. Jun.-2017-4279
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
© Shimano Inc. I
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
ITEM
NO.
INTERCHANGE-
ABILITY
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
INTERCHANGE-
ABILITY
1 Y72J98010 Speed Sensor Fixing Bolt (M3) 2 pcs.
2 Y8K198010 Lock Ring & Washer
A: Same parts.
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Jun.-2017-4279
© Shimano Inc. I
SM-DUE10
Speed Sensor Unit
Speed Sensor Unit
SM-DUE10
SHIMANO
CODE NO.
DESCRIPTION
1 Y72H98010 Magnet Unit
Y70L000G0 Speed Sensor Fixing Bolt L16 (4 mm Hexagon Head)
Y70L000U0 Speed Sensor Fixing Bolt L22 (4 mm Hexagon Head)
Y72H00007 Speed Sensor L550
Y72H00010 Speed Sensor L1410
4 Y70L000F0 Spacer
5 Y70L000M0 Toothed Washer
Sep.-2016-4150
© Shimano Inc. I
Specifications are subject to change without notice.
28L21000000-6101-006
28L22000000-6101-007
ITEM
NO.
2
3
2
1
3
4
5
ITEM
NO.
SHIMANO
CODE NO.
DESCRIPTION
1 Y72H98010 Magnet Unit
2
Y70L000G0 Speed Sensor Fixing Bolt L16 (4 mm Hexagon Head)
Y70L000U0 Speed Sensor Fixing Bolt L22 (4 mm Hexagon Head)
3
Y72H00007 Speed Sensor L550
Y72H00010 Speed Sensor L1410
4 Y70L000F0 Spacer
5 Y70L000M0 Toothed Washer
Sep.-2016-4150
