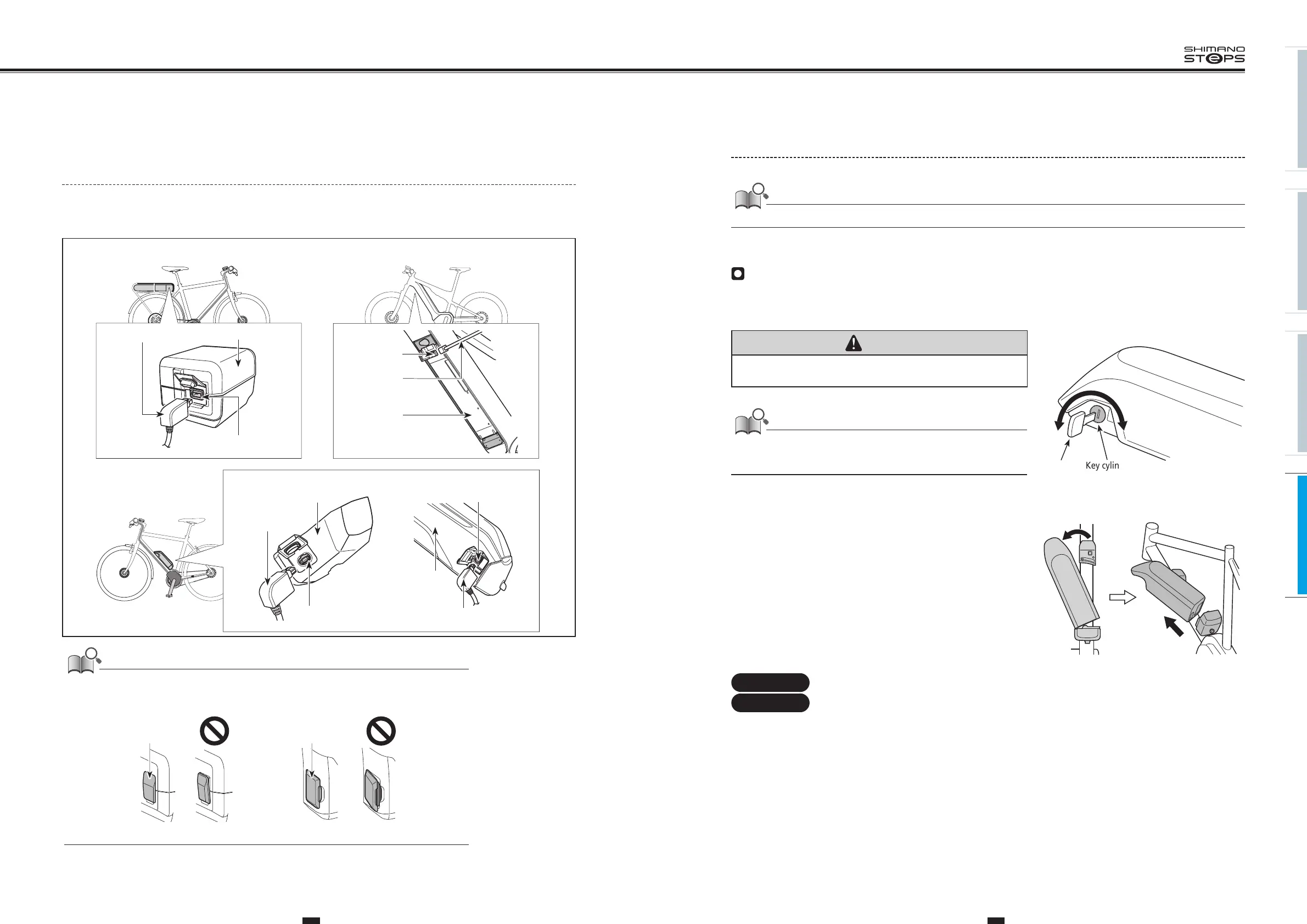

Charging the Battery While Installed onto
the Bicycle
with EC-E6000 only
1. Insert the Battery Charger power plug into the outlet.
2.
Insert the charging plug into the charging port on the battery mount or the battery.
<BT-E6000/BT- E6001>
Battery mount
Charging port
Charging plug
<BT-E8020>
Battery
Charging plug
Charging port
<BT-E6010/BT-E8010>
Battery mount
Charging plug
Charging port
<BT-E6010> <BT-E8010>
Battery
Charging port
Charging plug
<BT-E6000/BT-E6001>
<BT-E6010/BT-E8010>
<BT-E8020>
• Place the battery charger main body on a steady surface such as the floor before charging.
• Stabilize the bicycle to ensure that it does not collapse during charging.
• Make sure that the charging port cap is closed securely.
Charging port cap Charging port cap
<BM-E6000> <BM-E6010>
Charging the Battery Alone
Charge the batteries on a flat surface indoors.
Battery for Down Tube
1. Turn off the power.
2.
Insert the key into the key cylinder in the battery holder, then turn the key to the unlocking position.
Key cylinder
unlock
lock
Key
CAUTION
To prevent the battery from dropping off, do not ride the bicycle with the key
inserted.
• The position of the key does not affect the insertion of the battery. You can
insert it regardless of the key position.
• You cannot remove the key when it is not in the inserting position.
3.
Hold the upper part of the battery and slide it to the left to
remove it.
BT-E8010
BT-E8020
4. Refer to ”Removing the Battery” (page 33).
Refer to ”When Charging the Battery Alone” (page 29).
Refer to ”Installation of the Battery” (page 32).
