E6000 MANUALE8000 CONCEPT E8000 MANUAL E6000 CONCEPT

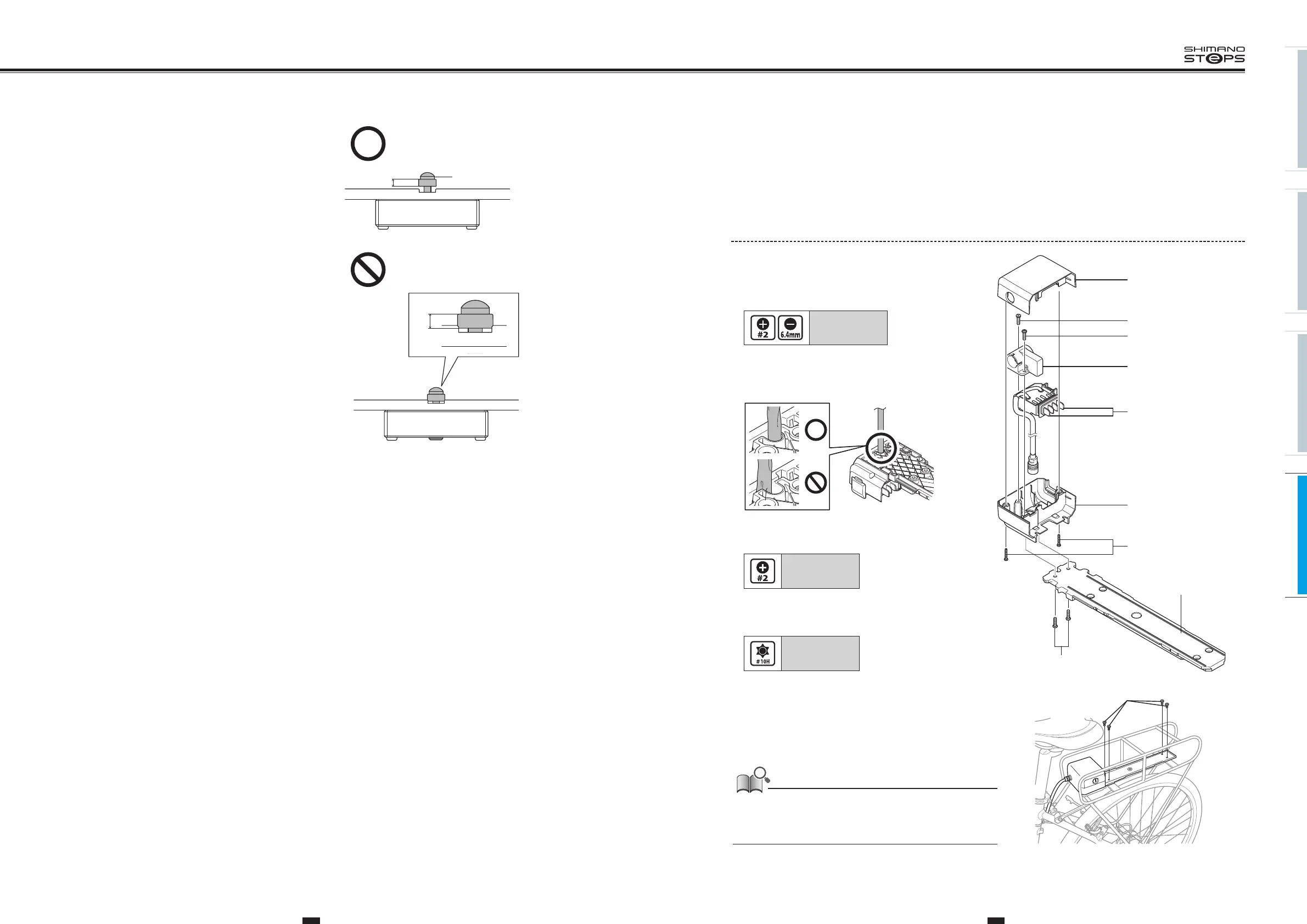

INSTALLING/REMOVING THE
BATTERY MOUNT
For Rear Carrier
<BM-E6000>
1. Secure the key unit to the lower case sub assembly by
tightening M4 bolt (A) and (B).
• For (A) using the screwdriver #2
•
For (B) using the 6.4 mm flat-blade screw driver
Tightening torque:
1.6 to 1.8 N·m
2. Align the harness assembly chamfer and battery
mount rail, in that order, with the lower case sub
assembly.
3. Mount the lower case sub assembly and the battery
mount rail using the M4 bolt (C).
Tightening torque:
1.6 to 1.8 N·m
4. Assemble the upper case sub assembly with the lower
case sub assembly by 2 bolts.
Tightening torque:
1.1 to 1.3 N·m
5. Align the mounting holes in the carrier with those in
the battery mount.
6.
Insert hexagon socket head cap screws into the upper
part of the battery mount and tighten it to the carrier.
Bolts and nuts are not included with Shimano products. Use those
supplied by the manufacturer.
For information on the tightening torques, contact the manufacturer
of the carrier.
Lower case sub assembly
Battery mount rail
(A) M4 bolt
Key unit (not included with
the product)
Harness assembly chamfer
Hexalobular #10H
(B) M4 bolt (one-way type)
(C) M4 bolt
Upper case sub assembly
Hexagon socket head cap screw (M5)
(not included with the product)
3. Adjust the chain tension so that part C of the
projection part is not hidden by the chain
tension measurement tool's frame.
Projection part
Part C not hidden by tool’s
frame
C
Part C hidden by tool’s frame
C
