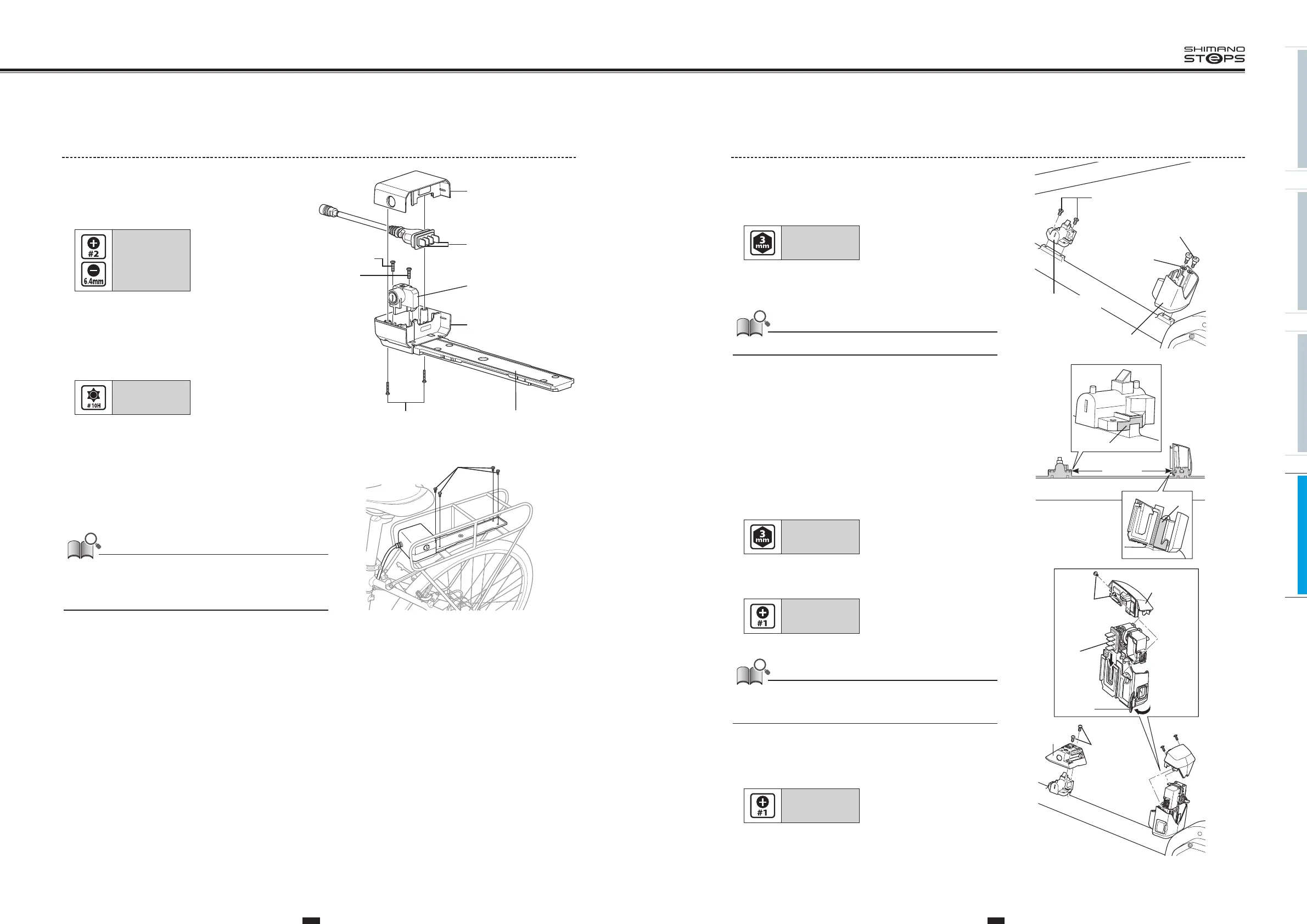

For Down Tube Mounting
<BM-E6010>
1. Attach the mount lower case to the mounting holes in
the frame, insert the mount fixing bolts (M5) into the
washers, and secure the case using the bolts.
With the 3 mm Allen key
Tightening torque:
3 N·m
2. Temporarily attach the key unit with the key unit
fixing bolts (M5).
Key unit is not included with Shimano products.
Key unit fixing bolt (M5)
Washers
Key unit (not
included with
the product)
Mount lower case
Mount fixing bolt
(M5)
3. Adjust the position of the key unit to allow a
clearance of 223 mm between (a) and (b) shown in the
illustration.
4.
Temporarily attach the key unit cover and perform
adjustment to make sure that the battery can be
smoothly connected and disconnected and no noise
will be produced due to looseness during traveling.
5.
Fully tighten the key unit fixing bolts.
With the 3 mm Allen key
Tightening torque:
3 N·m
223 mm
(a)
(b)
6. Fully tighten the key unit cover fixing bolts (M4) to
attach the key unit cover.
Tightening torque:
0.6 N·m
• For BM-E6010, make sure to pull open the charging port cap fully
before inserting the plug, as in the illustration. Inserting the plug with
the cap closed will disrupt the proper opening/closing of the cap.
7. Insert the plug into the mount lower case. Insert the
plug between the mount upper case, and secure them
using the mount upper case fixing bolts (M3).
Tightening torque:
0.6 N·m
Mount upper
case
Mount upper
case fixing
bolt (M3)
Plug
Charging
port cap
Key unit cover
fixing bolt
(M4)
Key unit
cover
For Rear Carrier
<SM-BME60>
1. Secure the key unit to the lower case sub assembly by
tightening M4 bolt (A) and (B).
• For (A) using the Screwdriver #2
•
For (B) using the 6.4 mm flat-blade screw driver
Tightening torque:
1.6 to 1.8 N·m
2. Align the harness assembly chamfer with the lower
case sub assembly.
3.
Assemble the upper case sub assembly with the lower
case sub assembly by 2 bolts.
Tightening torque:
1.1 to 1.3 N·m
(A) M4 bolt
(B) M4 bolt
(one-way type)
Hexalobular #10H
Key unit (not included with
the product)
Lower case sub assembly
Battery mount rail
Upper case sub assembly
Harness assembly chamfer
4. Align the mounting holes in the carrier with those in
the battery mount.
5.
Insert hexagon socket head cap screws into the upper
part of the battery mount and tighten it to the carrier.
Bolts and nuts are not included with Shimano products. Use those
supplied by the manufacturer.
For information on the tightening torques, contact the manufacturer
of the carrier.
Hexagon socket head cap screw (M5)
(not included with the product)
