Shimano BL-M4100 - Page 41

41
MAINTENANCE
SHIMANO genuine mineral oil replacement
BR-M6120

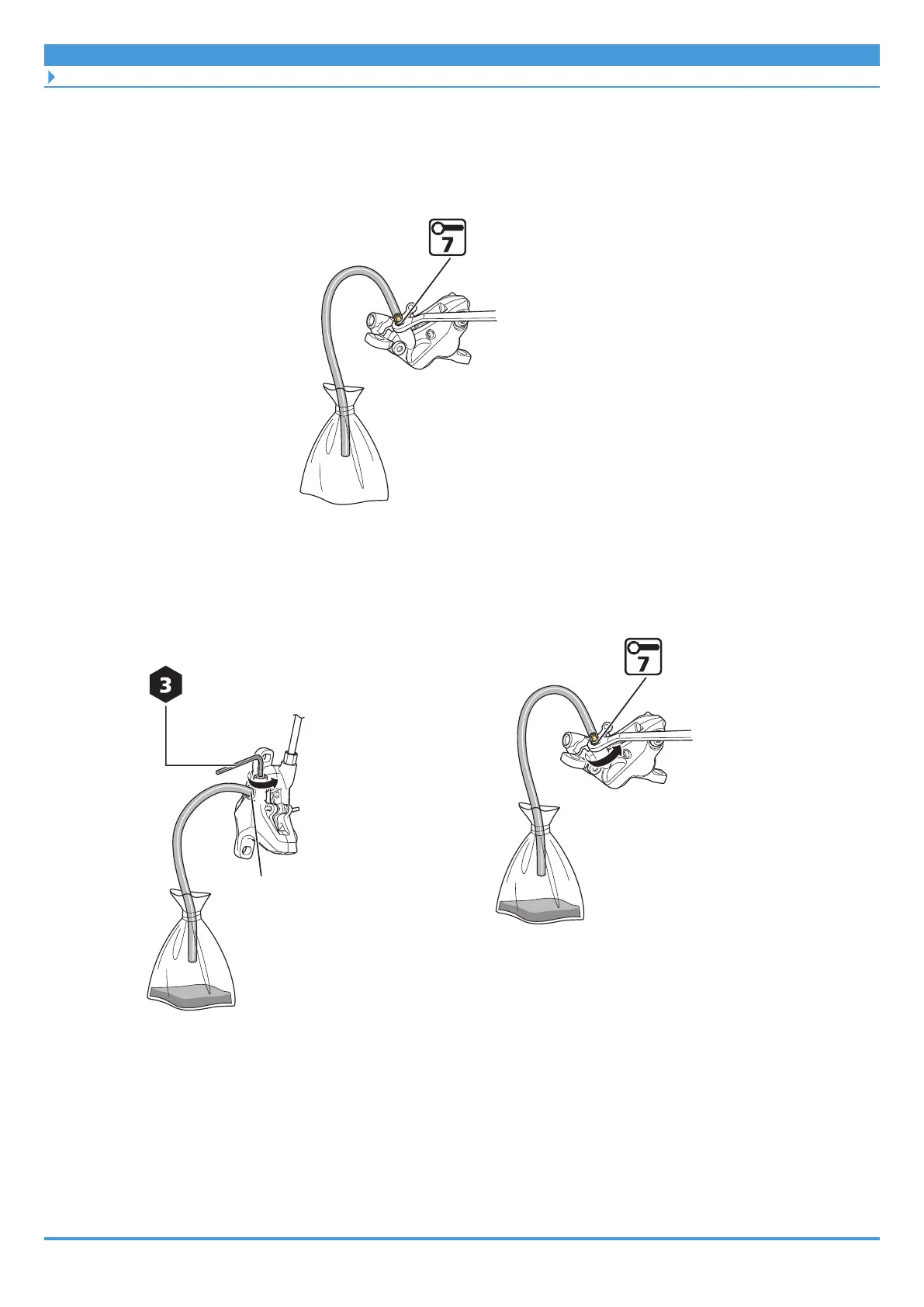

(1) Place a 7 mm box wrench in the position shown in the figure.
(2) Connect the tube with bag attached to the bleed nipple.
Bleed nipple
5. Loosen the bleed screw/bleed nipple.
The oil will begin to drain. Operating the brake lever while the oil drains will allow the oil
to drain more easily.
BR-M6100/BR-MT410
Bleed boss
Bleed screw
Bleed nipple
BR-M6120
