Shimano BL-M4100 - Assembly to the Brake Caliper

55
MAINTENANCE
Replacing the brake hose
Assembly to the brake caliper
` Straight type

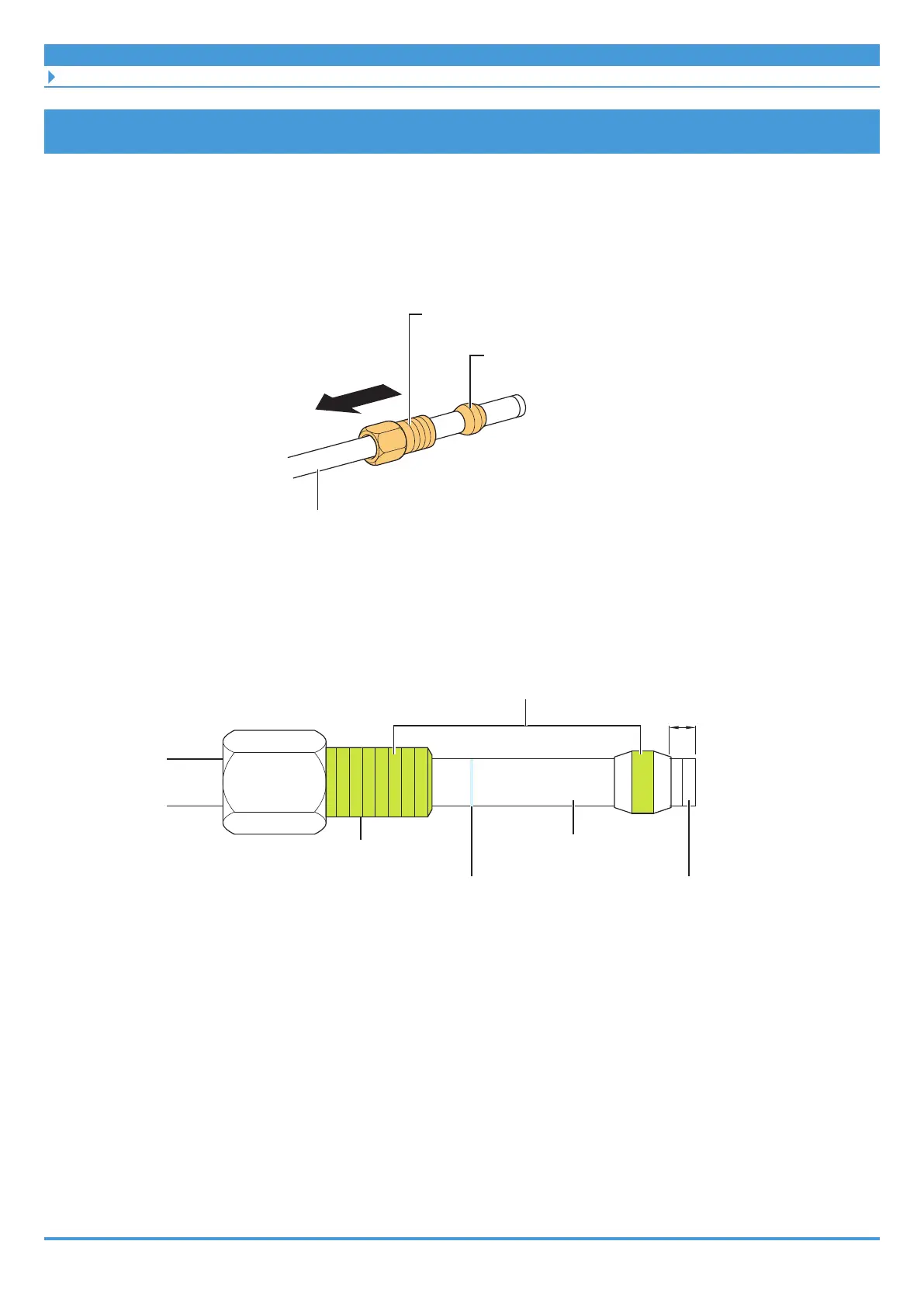

1. Pass the connecting bolt and olive over the brake hose in the order
shown below.
Olive
Connecting bolt
Brake hose
2. Check that the olive is in the position shown in the figure, and then
apply Premium Grease to the threads of the connecting bolt and outer
surface of the olive.
Connector insert
Brake hose
Witness mark
Premium Grease
Connecting bolt
2 mm
