Shimano BL-M4100 - Adjustment Procedures; Adjusting Brake Lever Reach

35
ADJUSTMENT
Adjusting the reach
ADJUSTMENT
Adjusting the reach

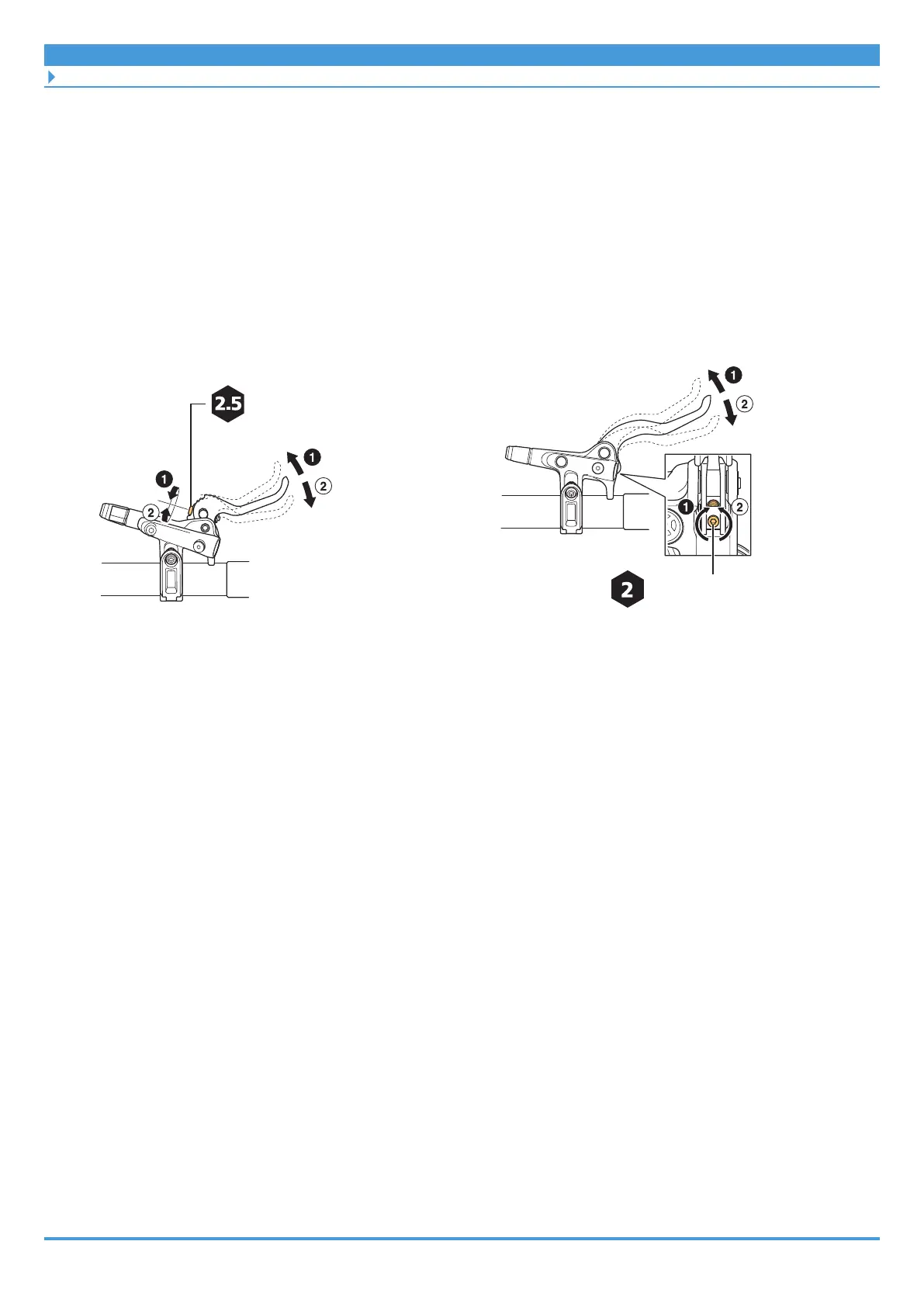

1. Turn the adjustment bolt to adjust the reach.
Tightening the adjustment bolt (clockwise) widens the distance between the initial
position of the brake lever and the handlebar, while loosening bolt (counterclockwise)
narrows it.
Reach adjustment
bolt
BL-M6100
BL-M4100
Reach adjustment
bolt
