10
INSTALLATION/REMOVAL
Installing the front derailleur

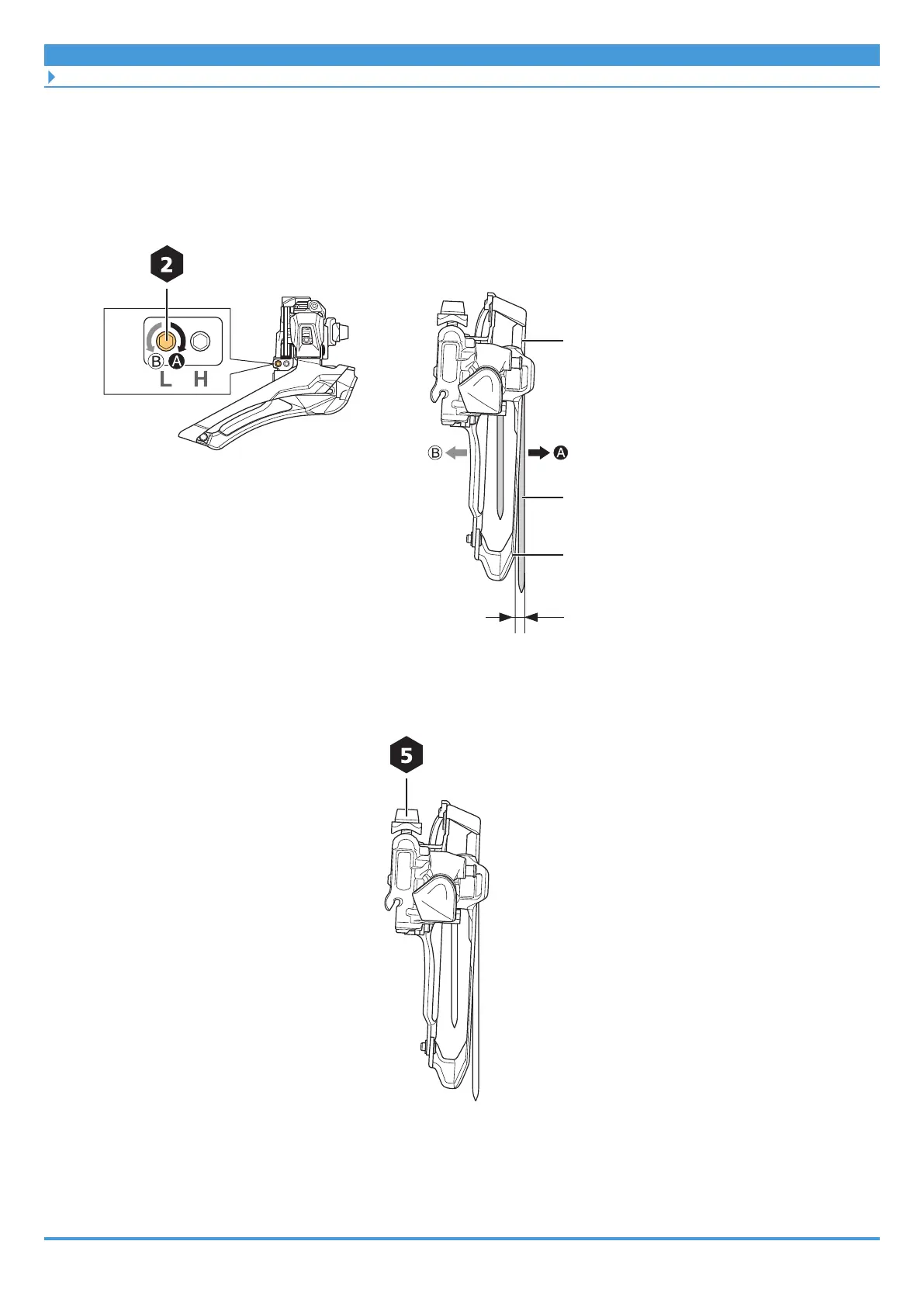

2. Adjust the position of the chain guide.
Use the low adjustment bolt to align the front end of the chain guide outer plate with
the surface of the largest chainring.
At this point, adjust the chain guide so that its rear end is 0.5 - 1.0 mm inside.
Low adjustment bolt
Front end of chain guide outer
plate
Rear end of chain guide
0.5 - 1 mm
Largest chainring
3. Fix the front derailleur in place.
Mounting bolt
5 - 7 N·m
