INSTALLATION/REMOVAL
Installing the front derailleur
INSTALLATION/REMOVAL
NOTICE
• With a carbon frame, even the recommended tightening torque may be too tight and
cause damage to the frame, or too loose and not sufficiently attached to the frame.
For the appropriate torque value, consult with the manufacturer of the completed
bicycle or the manufacturer of the frame.
Installing the front derailleur
Installing the backup plate
If installing the front derailleur to a brazed-on type frame, a backup plate must be attached to
the seat tube.
Be sure to install this in order to prevent damage to the frame from the pressure of the front
derailleur support bolt.

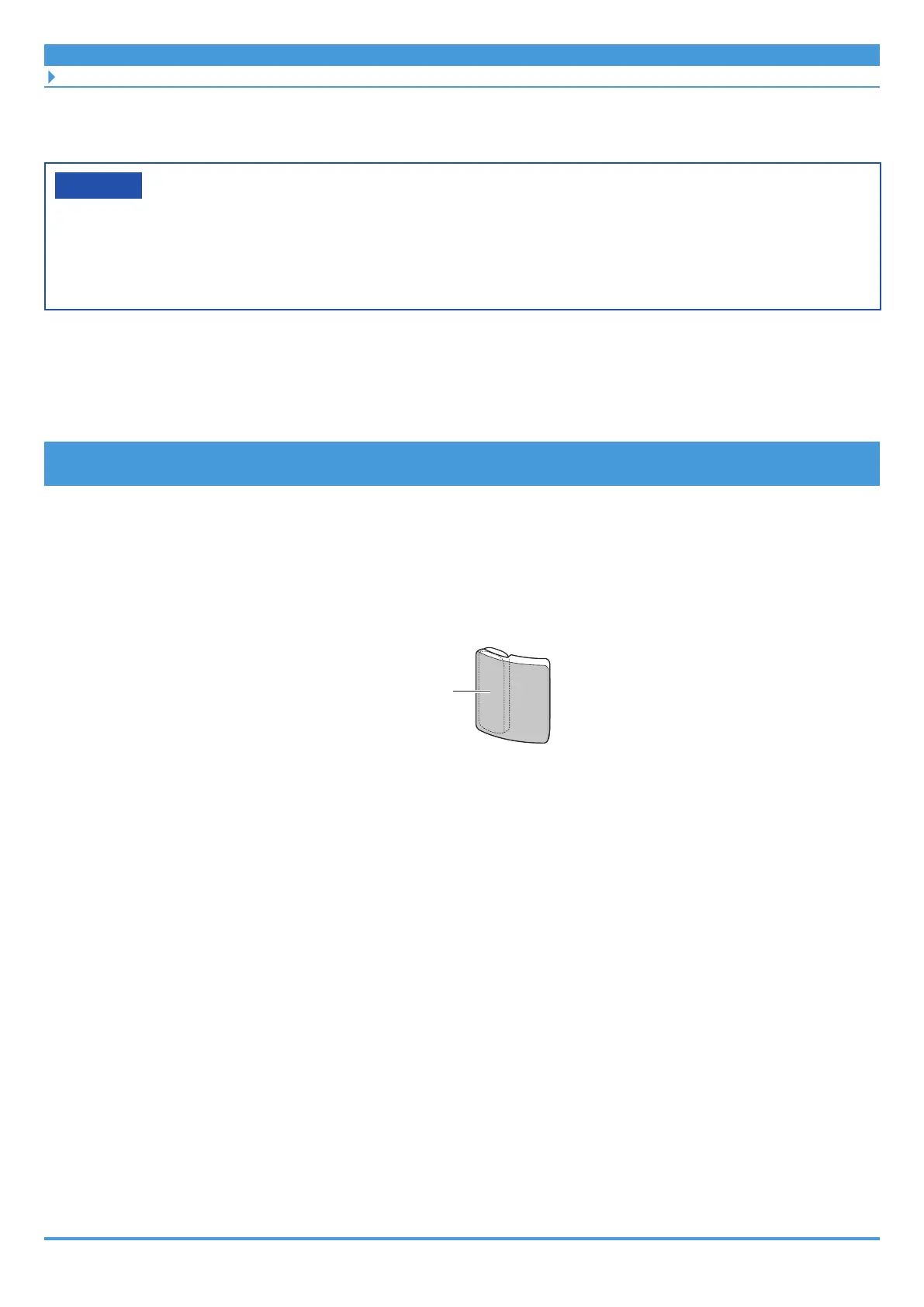

Tape
[1]
1. Check the installation location.
Check the position where the support bolt directly touches the frame when the support
bolt of the front derailleur is being adjusted.
