INSTALLATION/REMOVAL
Installing the front derailleur
Installing the front derailleur
1. Adjust the installation height and temporarily attach the front
derailleur to the frame.

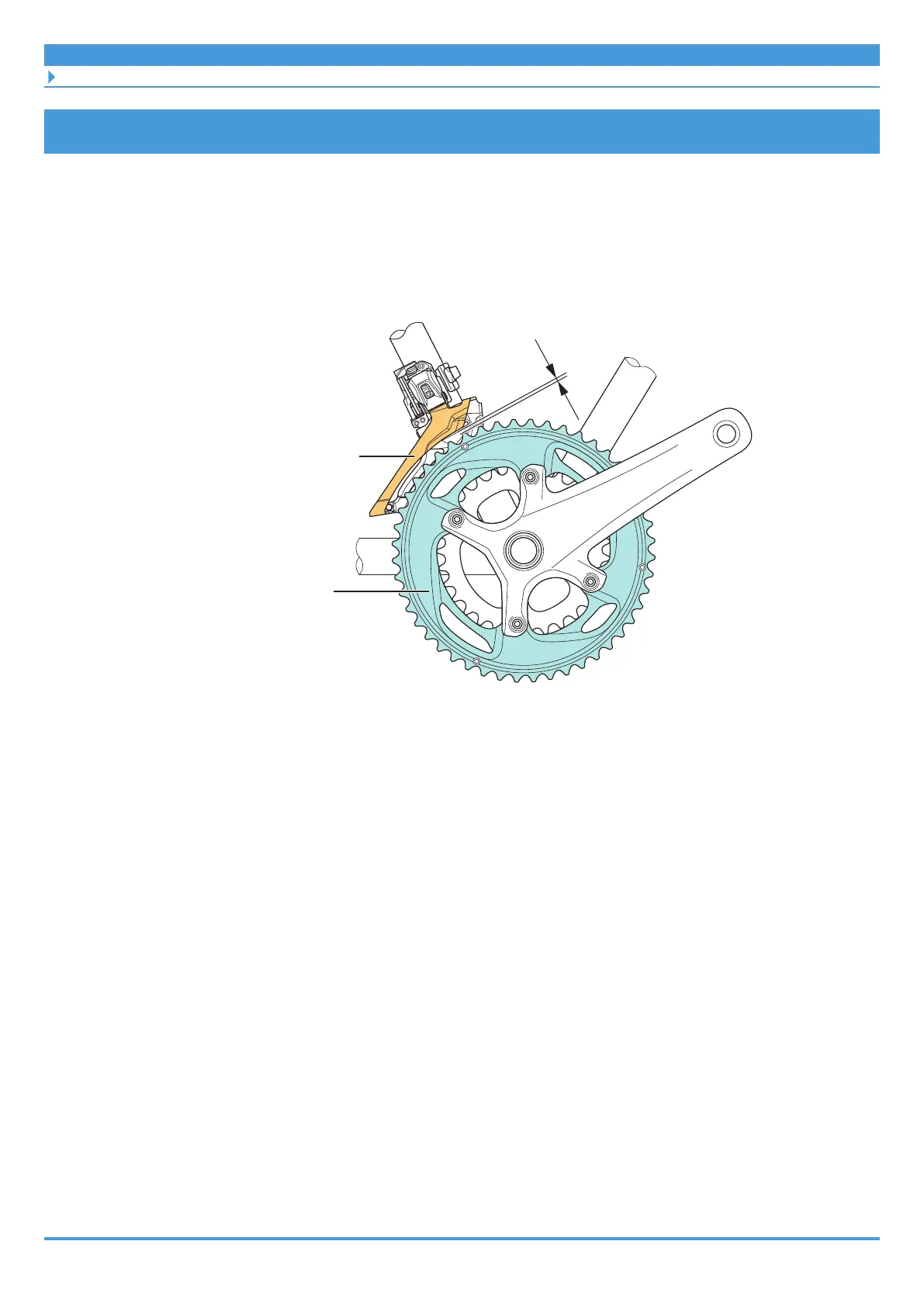

Adjust the installation height so that the distance from the tips of the teeth of the largest
chainring is 1 - 3 mm.
1 - 3 mm
Chain guide outer plate
Largest chainring
