Shimano FD-RX810 - Low Adjustment

22
ADJUSTMENT
Installing the inner cable and adjusting gear shifting

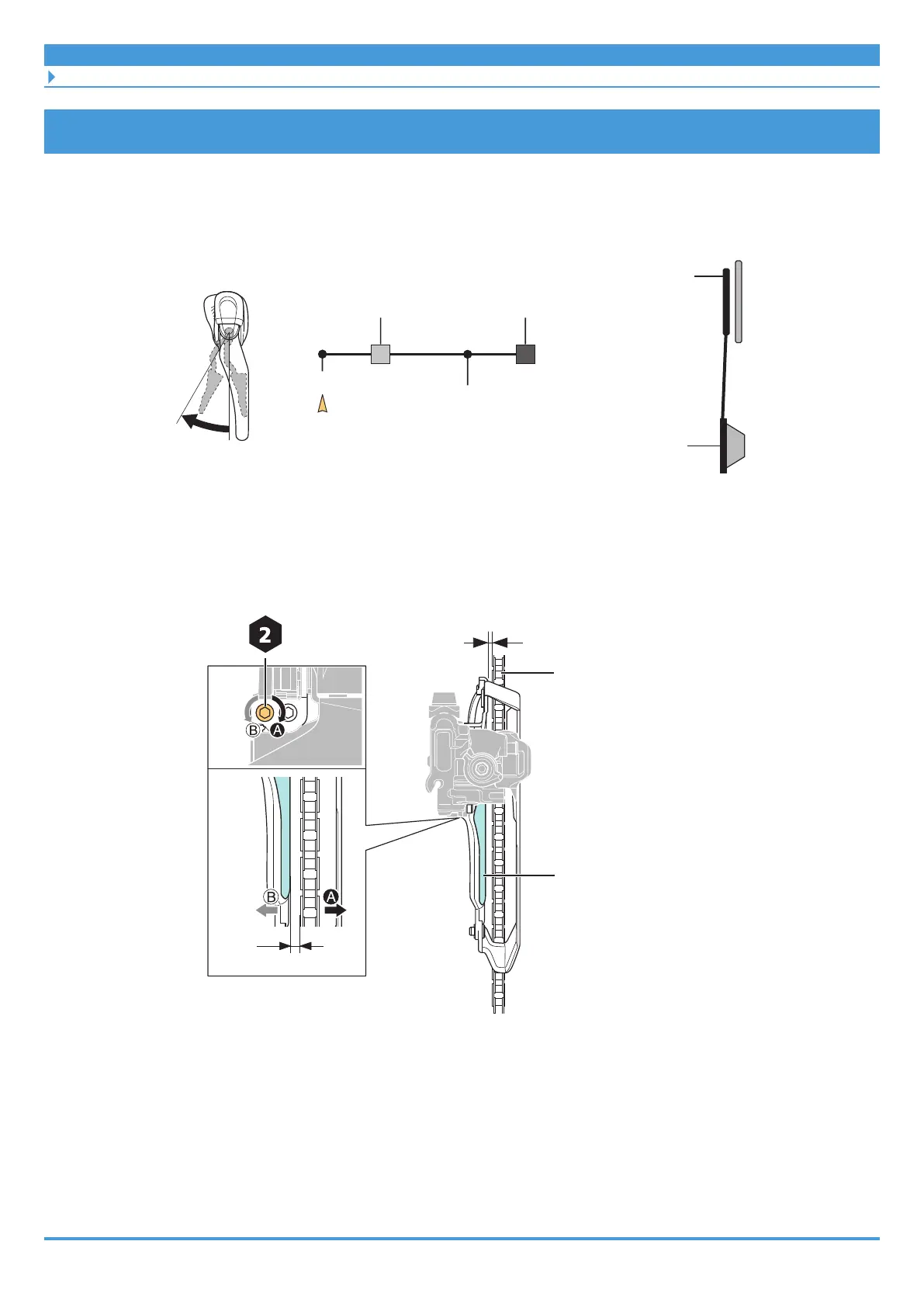

Low adjustment
1. Align with the gear where the lever is released from the low side to
the L-trim position.
T-trim
L-trim
Low
Low adjustment point
Top
Smallest chainring
Largest sprocket
2. Adjust the lowest position of the chain guide.
Adjust so that the clearance between the skid plate of the chain guide and the chain is 0
- 0.5 mm.
Low adjustment bolt
Skid plate
(resin part)
Chain
0 - 0.5 mm
