17
ADJUSTMENT

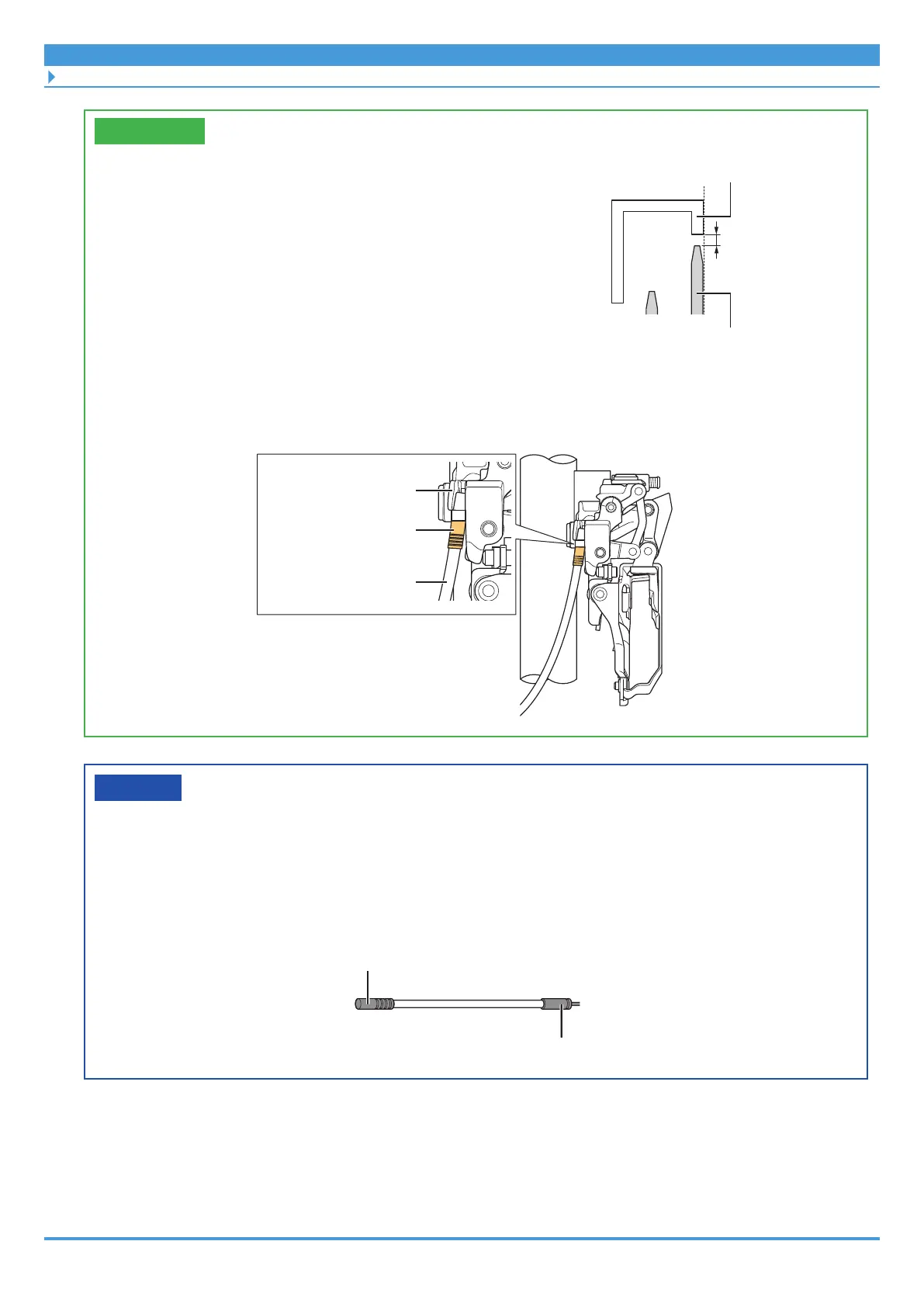

Installing the inner cable and adjusting gear shifting
TECH TIPS
• Fixing the cable with the chain guide outer
plate and the surface of the largest
chainring aligned, allows you to decrease
the amount of cable tension adjustment
when adjusting gear shifting.
Largest chainring
1 - 3 mm
• For the full outer model and built-in type, make sure that the outer casing is
firmly secured to the outer casing holder before use.
Outer casing holder
Outer casing
Outer cap
(resin type)
NOTICE
• Be sure to check that the inner cable runs through the cable guide.
• If using a full outer model, the end of the outer casing with the outer cap (resin
type) should be at the derailleur side.
• If using it in a cold region, use a sealed outer cap (resin type) to prevent freezing.
Cap with long tongue
Outer cap (resin type)
To Next Page
