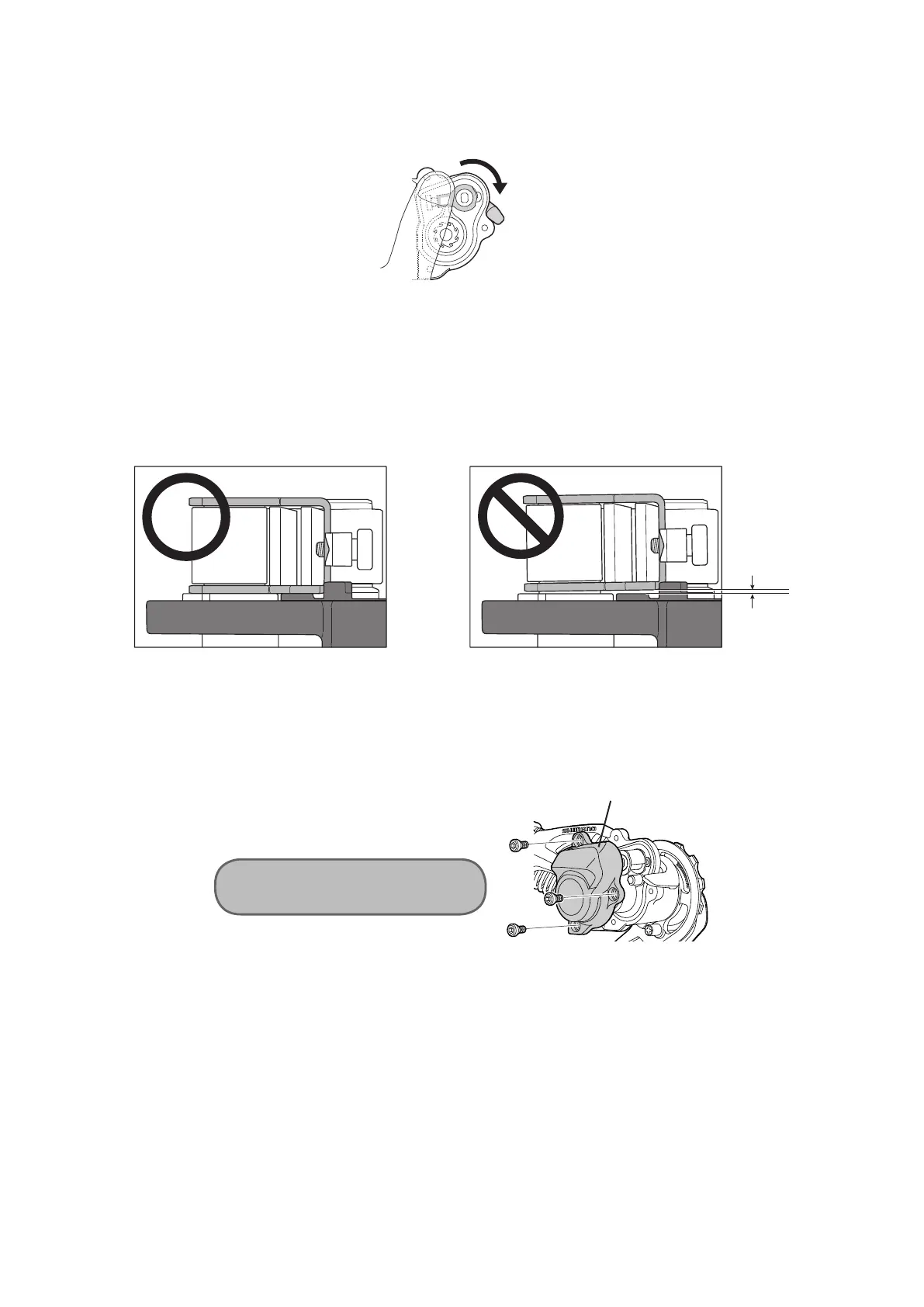

While pressing the friction unit with your finger, set the lever switch to the OFF position. At that time, make sure that the
friction unit is in contact with the bottom of the plate unit.
OFF
Note:
Do not install the plate unit cover with the switch base floating off the bottom of the plate unit. Sufficient sealing
performance will not be obtained, which will cause rust to appear in the inner mechanism, potentially resulting in the adhesion
of the plate.
OK Not OK
6.
Install the plate unit cover.
Plate unit cover
2 mm Allen key
Tightening torque:
1.0 - 1.5 N·m {9 - 13 in. lbs.}
