MAINTENANCE
 Replacing the bump stopper/holder (RD-M820)
Note: Remove the rear derailleur from the frame before replacement.

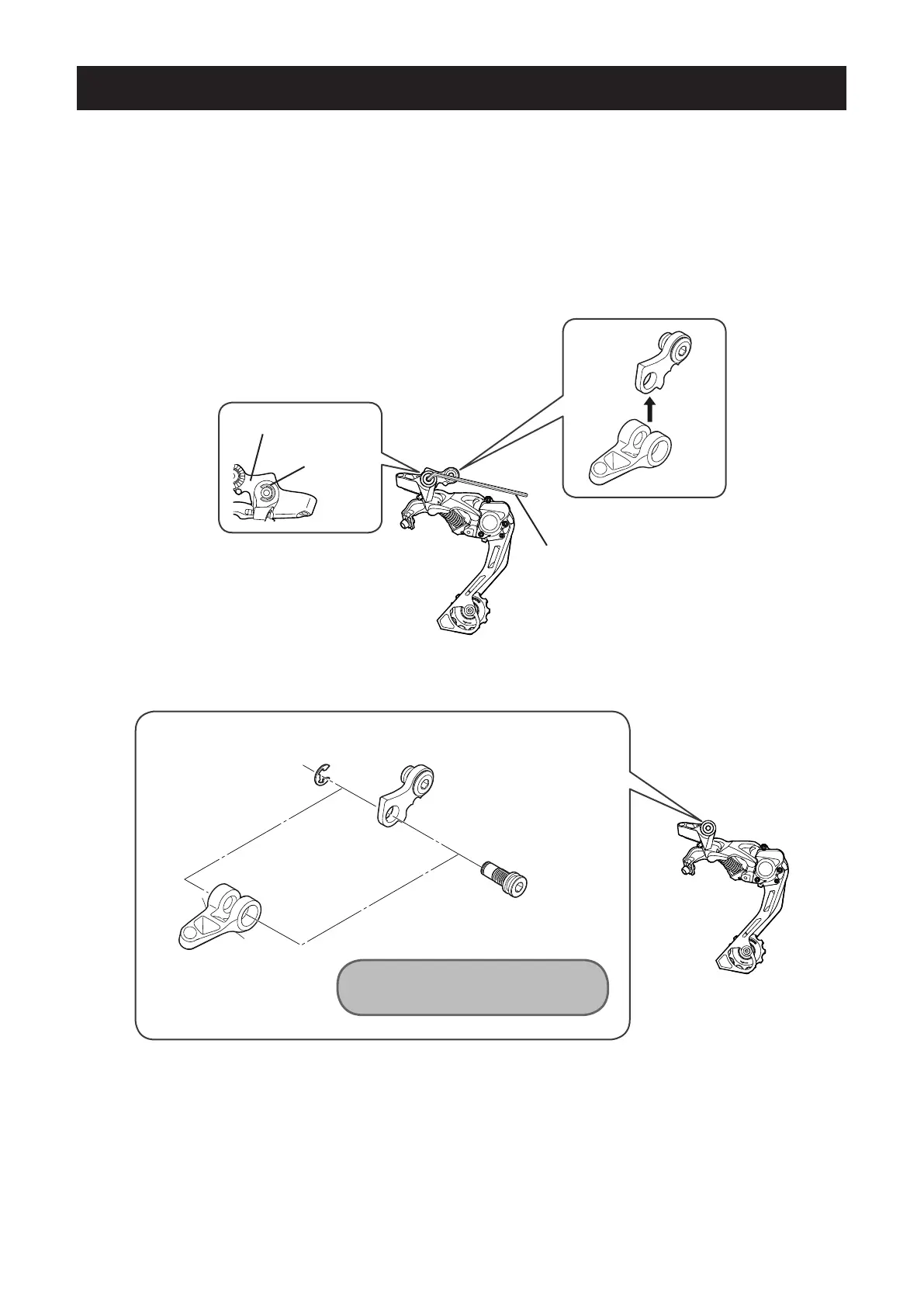

1. Using a flat-head screwdriver, remove the E-ring.
2. Remove the bracket axle with a 5 mm Allen key and remove the bracket.
• If there is a spacer, remove it.
E-ring
5 mm Allen key
1
2
Bracket
Tightening torque:
8.0 - 10.0 N·m {70 - 87 in. lbs.}
