17

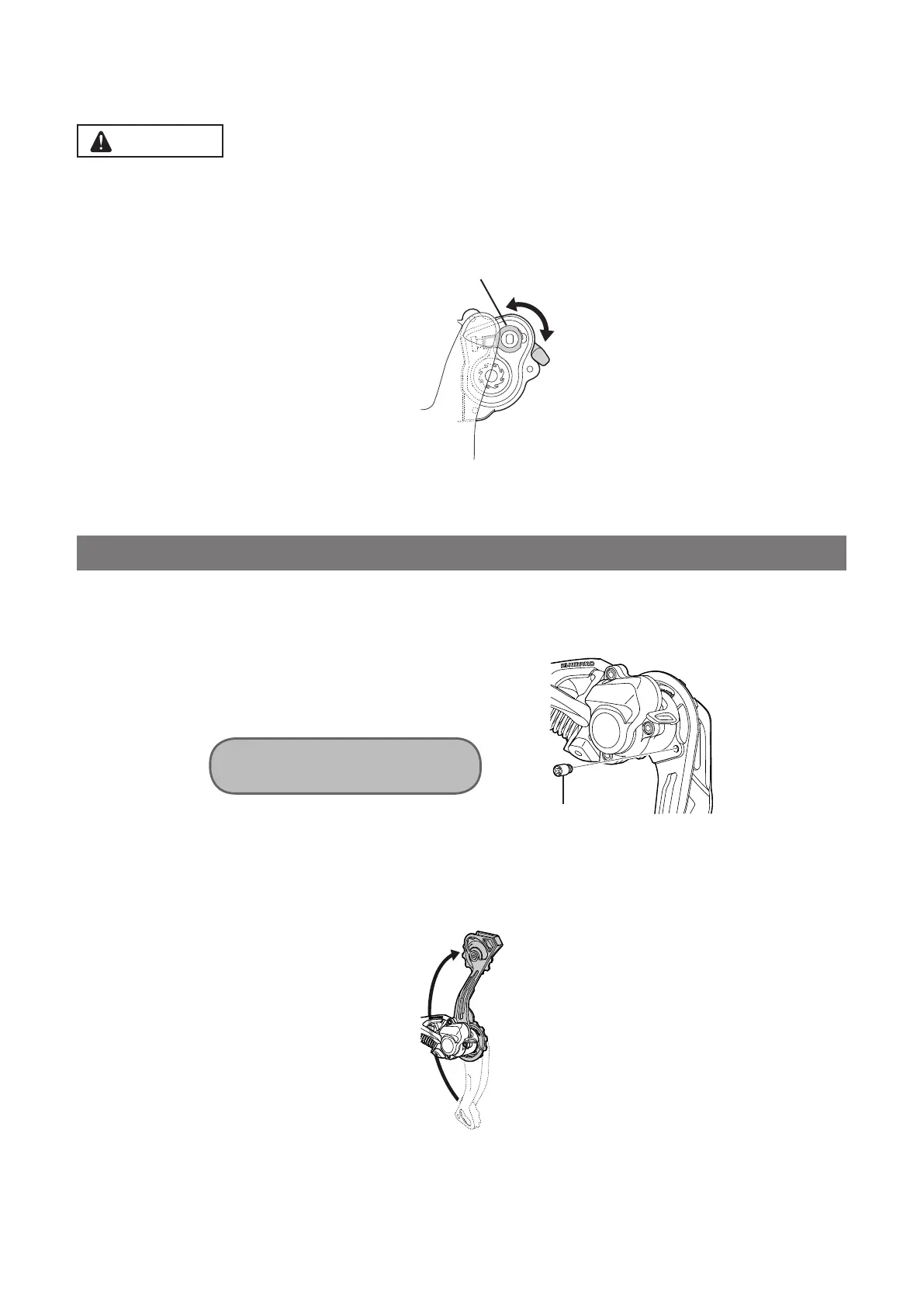

Replacing the plate and the plate tension spring (except RD-M986)
CAUTION
•
Always ensure that the lever switch is in the OFF position before starting work.
•
If operating the lever switch while the plate unit cover is removed, press the friction unit with your finger so that it does not fly
out.
ON
Friction unit
OFF
Removing the plate and the plate tension spring
1.
Remove the plate stopper pin.
Plate stopper pin
Screwdriver #2
Tightening torque:
1.0 N·m {9 in. lbs.}
2.
Turn the plate to loosen the plate tension spring as shown in the illustration.
Note:
Steps 1 and 2 do not apply to RD-M4000 / RD-M3000.
To Next Page
