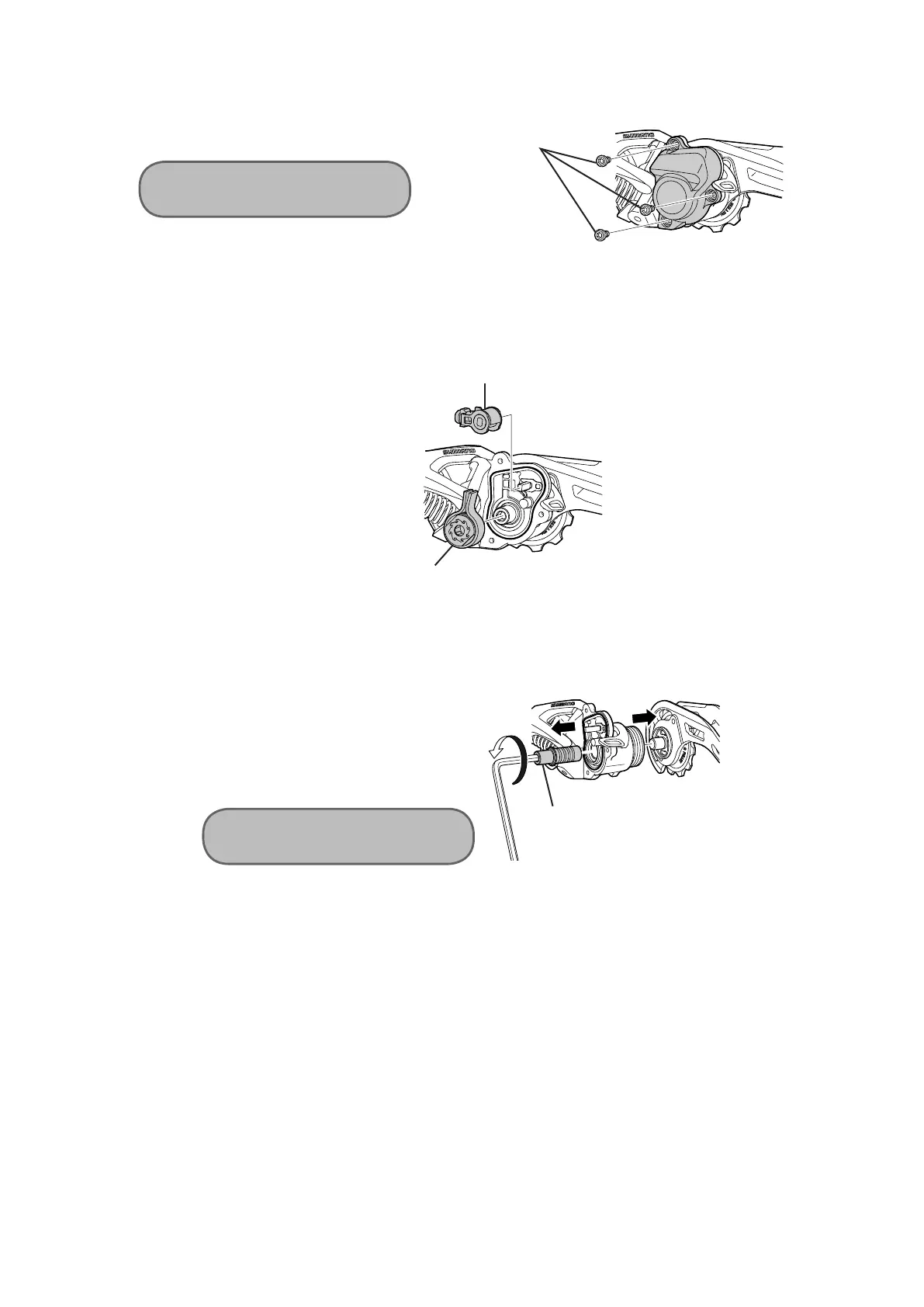

3. Remove the plate unit cover bolts.
2 mm Allen key
Tightening torque:
1.0 - 1.5 N·m {9 - 13 in. lbs.}
Plate unit cover bolt
4. Remove the cam unit and the chain stabilizer.
Cam unit
Chain stabilizer
5. Use a 4 mm Allen key to remove the plate axle.
Plate axle
Tightening torque:
8.0 - 10.0 N·m {70 - 87 in. lbs.}
