Reassembly
Carry out the removal procedure in reverse.
Note:
•
Apply grease to the plate axle.
•
When reassembling, insert the end of the plate tension spring into the groove in the plate.
Plate tension
spring
DO NOT apply grease.
If the outer surface of the
roller clutch with non
groove part gets grease on
it, it will slip and the friction
function will not work.
Apply grease.
•
Grease number:
DURA-ACE grease
(Y04110000)
Plate axle
•

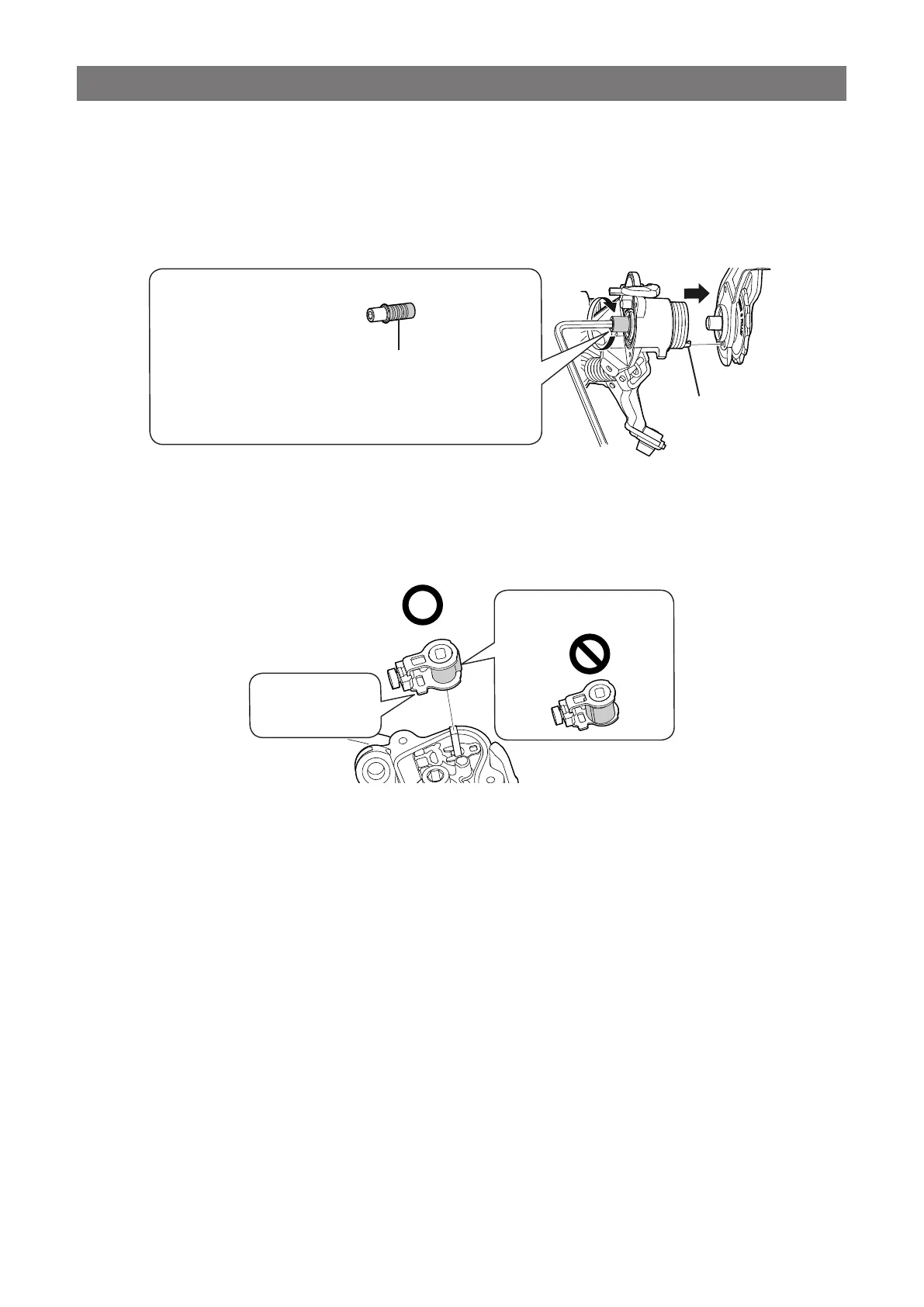

Set the cam unit as shown in the illustration.
Set with the
projection facing
down.
Set with the uneven side
to the right.
