16
5.

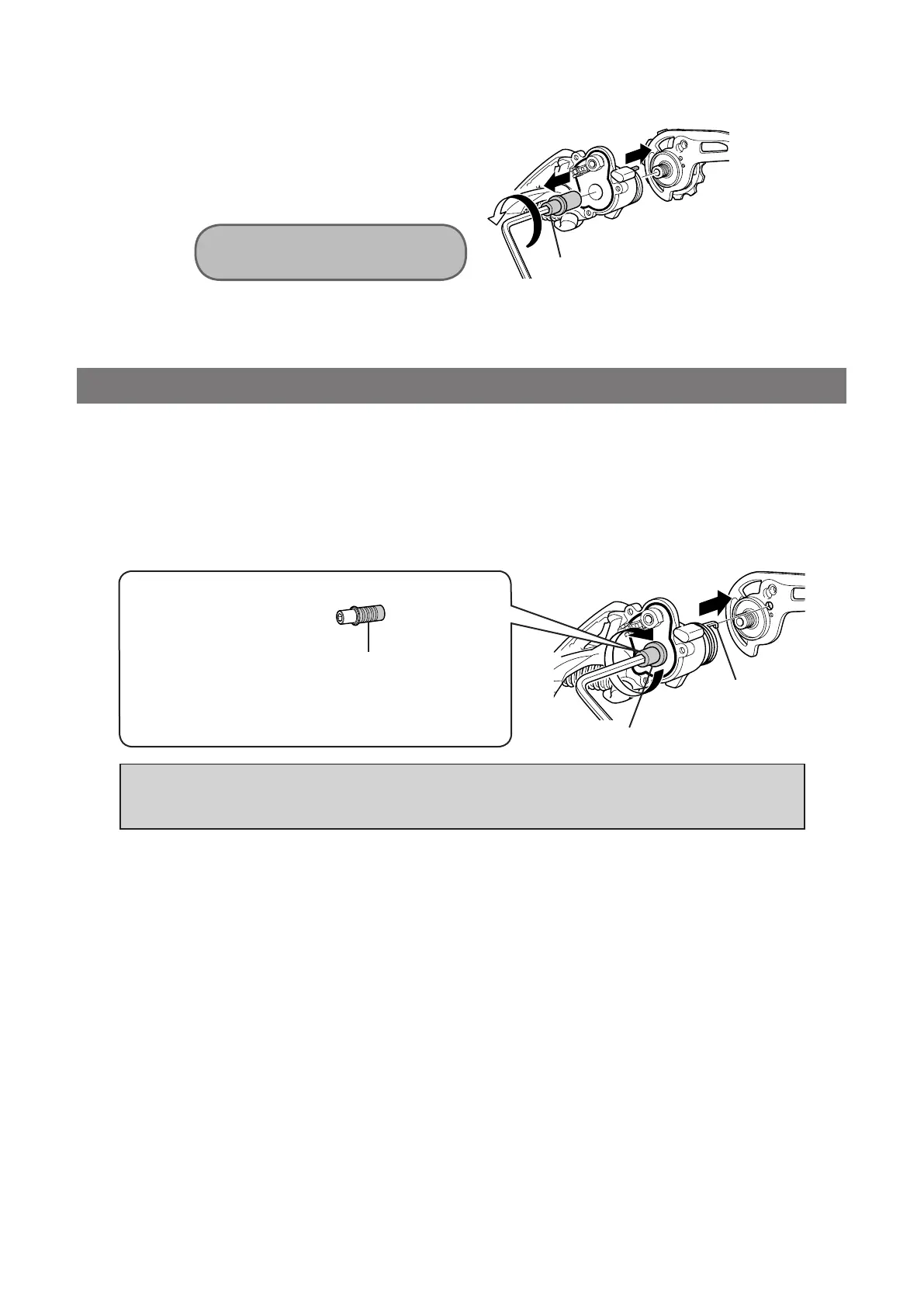

Use a 4 mm Allen key to remove the plate axle.
Plate axle
Tightening torque:
8.0 - 10.0 N·m {70 - 87 in. lbs.}
Reassembly
Carry out the removal procedure in reverse.
Note:
•
Apply grease to the plate axle.
•
When reassembling, insert the end of the plate tension spring into the groove in the plate.
DO NOT apply grease.
If the outer surface of the
roller clutch with non
groove part gets grease on
it, it will slip and the friction
function will not work.
Apply grease.
•
Grease number:
DURA-ACE grease
(Y04110000)
Plate axle
Be sure to install the switch stabilizer. If you try to operate the lever switch without the
switch stabilizer installed, it will damaged the product.
Plate tension
spring
Plate axle
To Next Page
