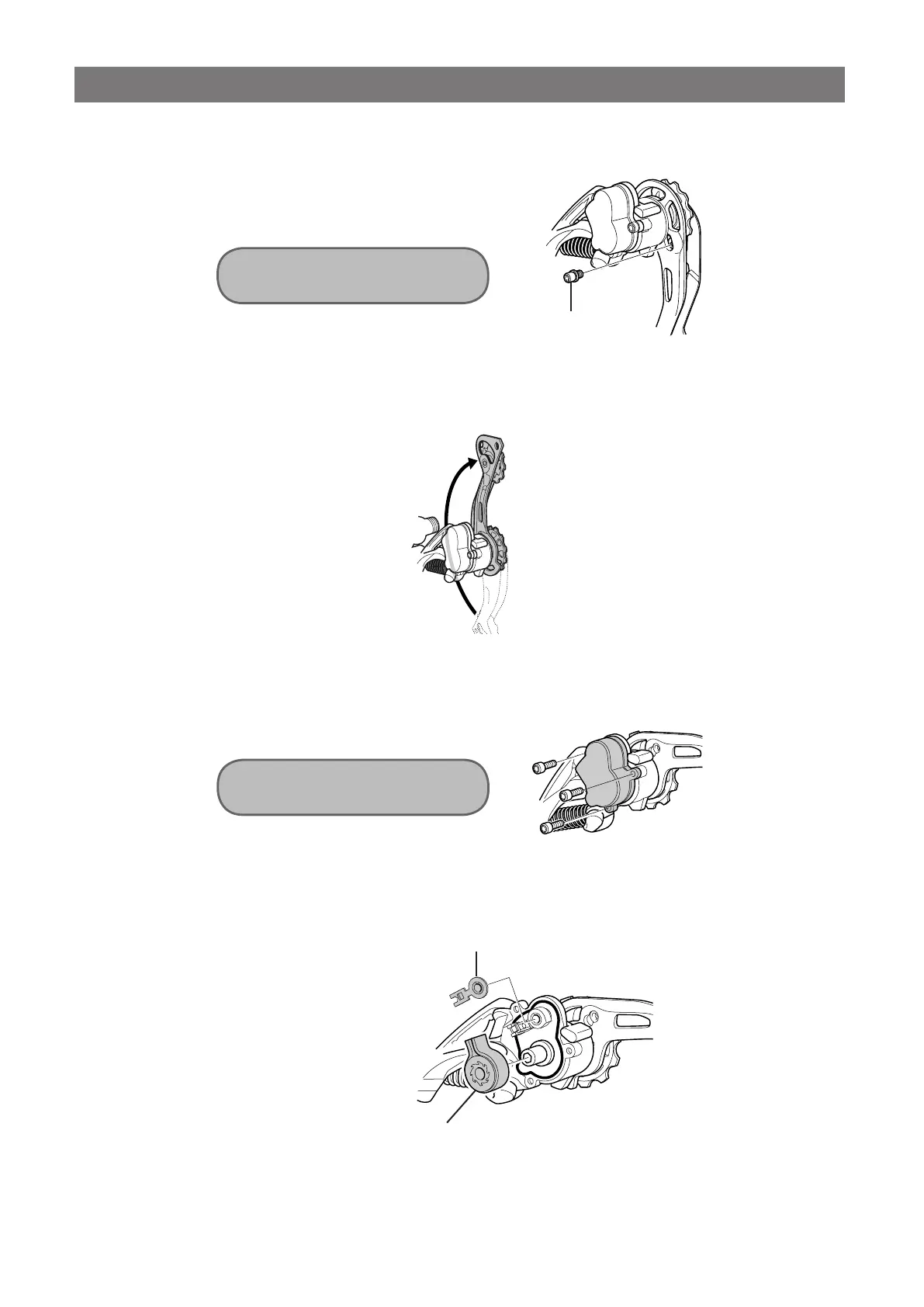

Removing the plate and the plate tension spring
1. Remove the plate stopper pin.
Plate stopper pin
Screwdriver #2
Tightening torque:
1.0 N·m {9 in. lbs.}
2. Turn the plate to loosen the plate tension spring as shown in the illustration.
3. Remove the plate unit cover bolts.
2 mm Allen key
Tightening torque:
1.0 - 1.5 N·m {9 - 13 in. lbs.}
4. Remove the switch stabilizer and the chain stabilizer.
Switch stabilizer
Chain stabilizer
