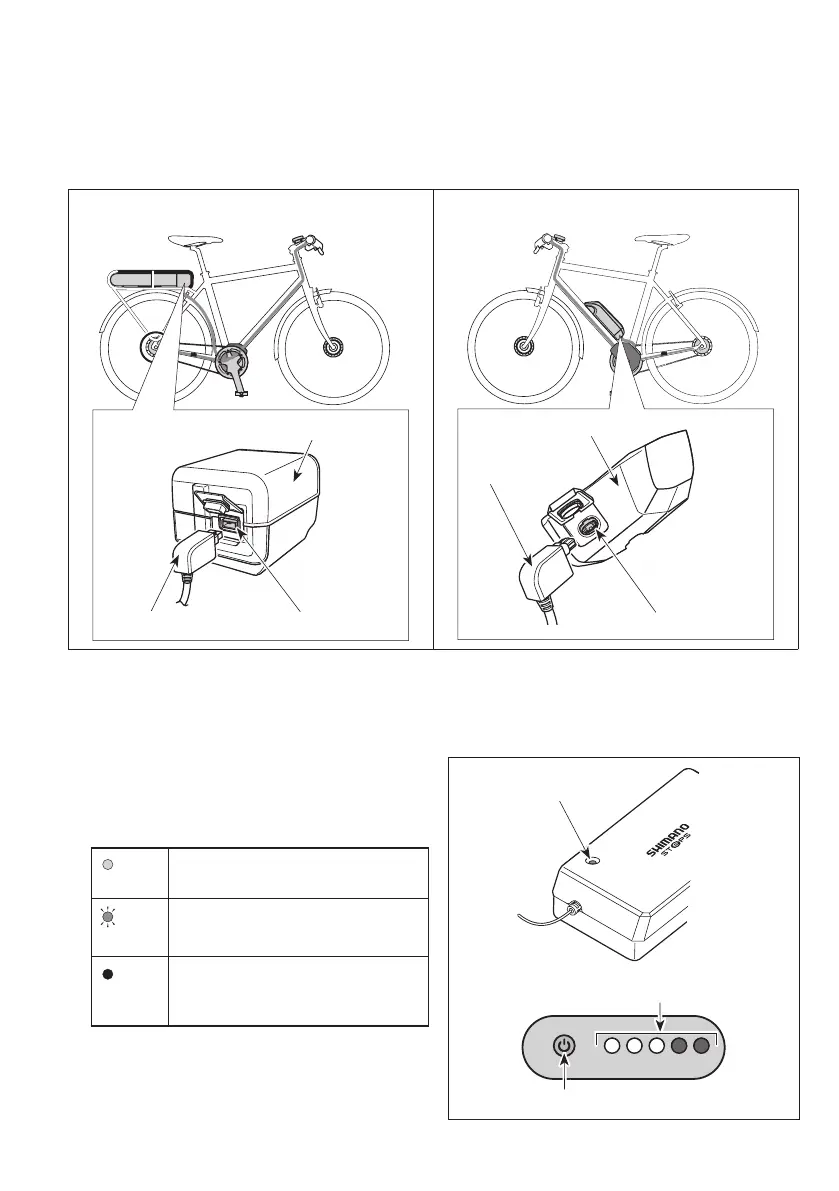

Charging the battery while installed onto the bicycle
< EC-E6000 >
1. Insert the battery charger power plug into the outlet.
2. Insert the charging plug into the battery mount charger connector.
* Place the battery charger main body on a steady surface such as the floor before charging.
<BT-E6000>
Battery mount
Charger connector
Charging plug
<BT-E6010>
Battery mount
Battery mount
Charging plug
Charger connector
 About battery and charger displays
After charging has started, the LED lamp on the charger
lights up.
You can check the current charging status on the battery
level lamp located on the battery.
Lights up
Charging (Within 1 hour after the
completion of charging)
Flashing
Charging error
Turned
off
Battery disconnected
(1 hour or more after the completion of
charging)
Charger LED lamp
Battery level lamp indication
Power button
