SHIMGE PW - Page 10

5
6
17
AWZB Series
1
3
2
4
10
11
12
14
13
15
16
18
19
20
22
24
25
21
23
26
27
28
29

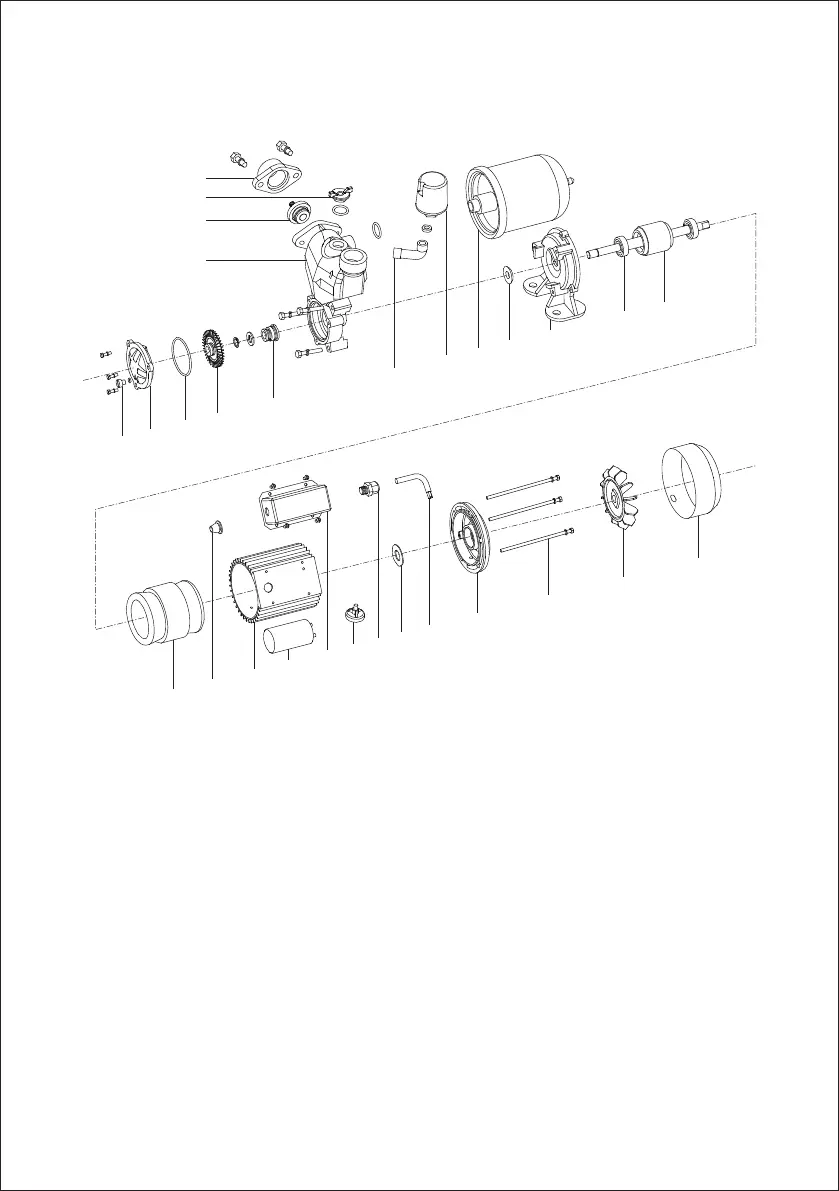

1 Inlet
2 Vent Cock
3 Check Valve
4 Pump Body
5 Drain Screw
6 Pump Cover
7 O-ring
8 Impeller
9 Mechanical Seal
10 Elbow
11 Pressure Switch
12 Pressure Tank
13 Water Deflector
14 Connector
15 Bearing
16 Rotor
17 Stator
18 Cable Sheath
19 Stator Housing
20 Capacitor
21 Terminal Box
22 Foot
23 Cable Lock
24 Wavy Spring
25 Cable
26 Rear Cover
27 Hexagon Head Bolts
28 Fan
29 Fan housing
