SHIMGE PW - Page 9

7
4
2
1
5
8
9
12
14
13
15
16
17
18
20
19
22
23
21
24
26
27
28
29
31
32
10
11
30

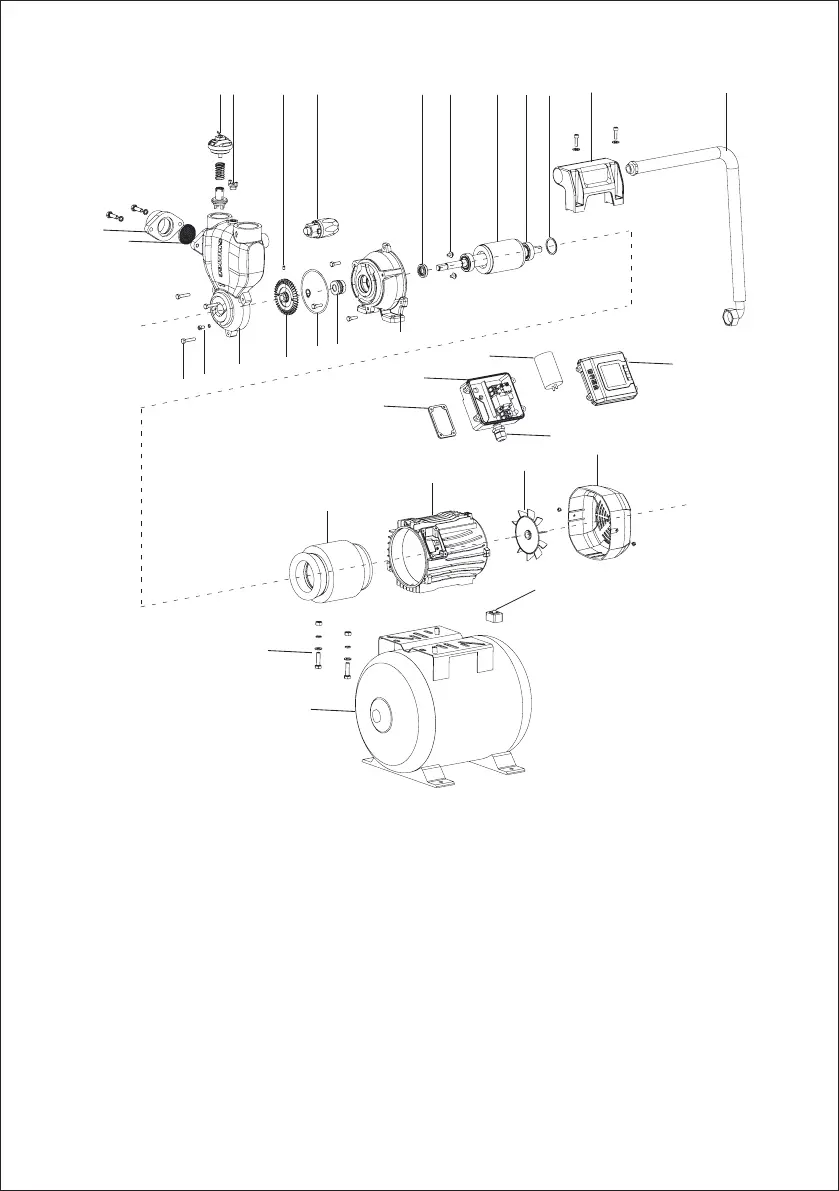

PW-ZL Series
7
25
6
3
1 Flow Switch
2 Vent Cock
3 Set Screw
4 Pressure Switch
5 Water Deflector
6 Combination Screws
7 Rotor
8 Bearing
9 Wavy Spring
10 Handle
11 Metal Hose
12 Connector
13 Mechanical Seal
14 O-ring
15 Impeller
16 Pump Body
17 Slotted Cheese
Head Screws
18 Hexagon Head
Bolts
19
20 Inlet
21 Capacitor
22 Control Box
23 Rubber Washer
24 Control Box Cover
2 Cable Lock5
26 Stator
27 Stator Housing
2 Fan8
29 Fan Housing
30 Foot
32 Pressure Tank
Filter
31 Hexagon Head
Bolts
