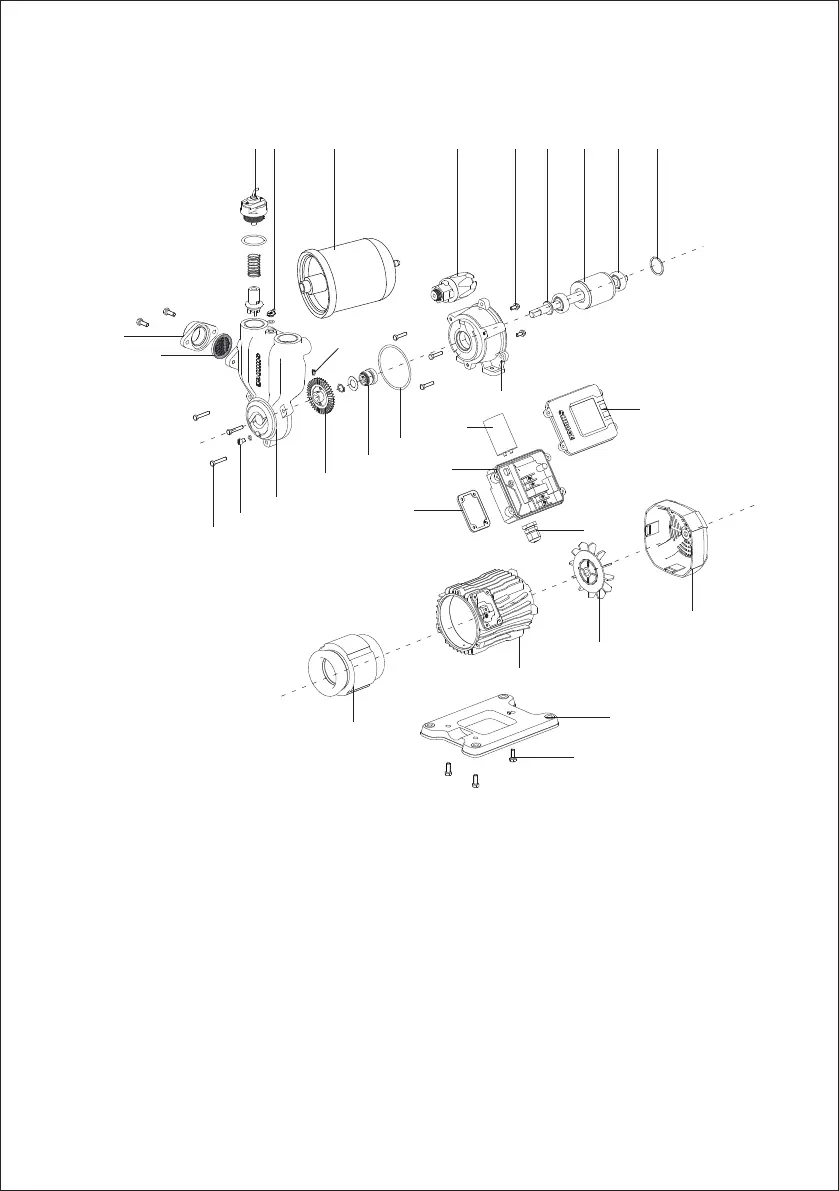

SHIMGE PW - Page 8

1 2
3
4
5
6 7 8 9
10
11
12
13
14
15
16
17
18
20
21
22
23
24
19
25
26
27
28
29
30
1 Flow Switch
2 Vent Cock
3 Pressure Tank
4 Pressure Switch
5 Combination Screws
6 Water Deflector
7 Rotor
8 Bearing
9 Wavy Spring
10 Connector
11 O-ring
12 Mechanical Seal
13 Impeller
14 Pump Body
15 Slotted Cheese
Head Screws
16 Hexagon Head
Bolts
17 Filter
18 Inlet
19 Set Screw
20 Capacitor
21 Control Box
22 Rubber Washer
23 Control Box Cover
24 Cable Lock
25 Fan Housing
26 Fan
27 Stator Housing
28 Stator
29 Base
30 Hexagon Head
Bolts
PW-Z Series
