27(77)

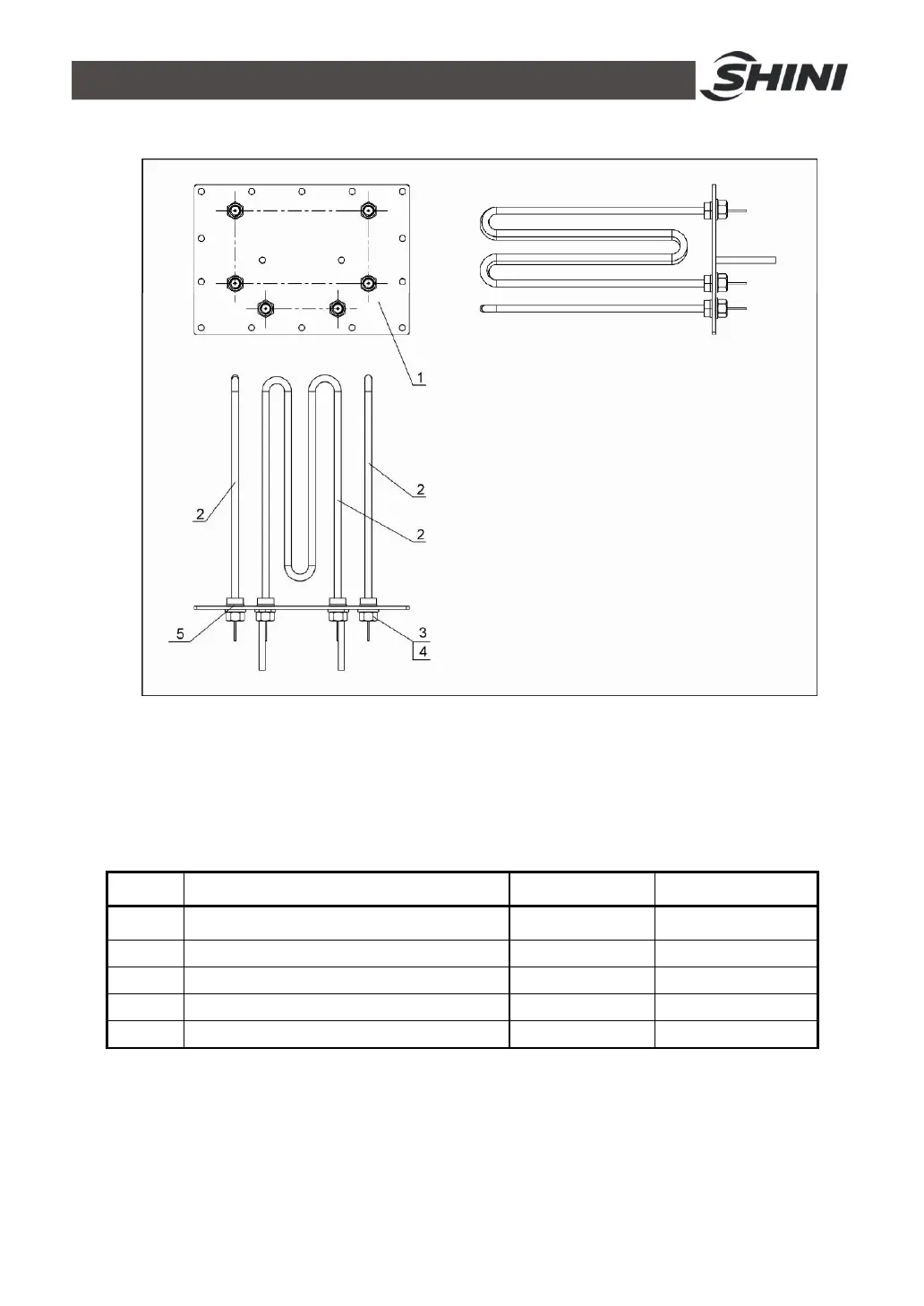

2.2.7 Pipe Heater Assembly Drawing (STM-607W/O)

Remarks: Please refer to material list 2.2.8 for specific explanation of the arabic numbers in parts

drawing.

Picture 2-5：Pipe Heater Assembly Drawing (STM-607W/O)

2.2.8 Pipe Heater Parts List(STM-607W/O)

Table 2-4：Pipe Heater Parts List (STM-607W/O)

No.

Name Quantity Parts No.

1 Pipe heater mounting plate

1 -

2 Pipe heater 3 BH70060700350

3 Pipe heater nut 6 YW09001100300

4 Flat washer M12 6 YW66163000000

5 Pipe heater graphite washer** 6 YR20607240000

* means possible broken parts. ** means easy broken part. and spare backup is suggested.

Please confirm the version of manual before placing the purchase order to guarantee that the item

number of the spare part is in accordance with the real object.
