28(77)
2.2.9 Pipe Heater Assembly Drawing(STM-907W/O)
Remarks: Please refer to material list 2.2.10 for specific explanation of the arabic numbers in parts
drawing.

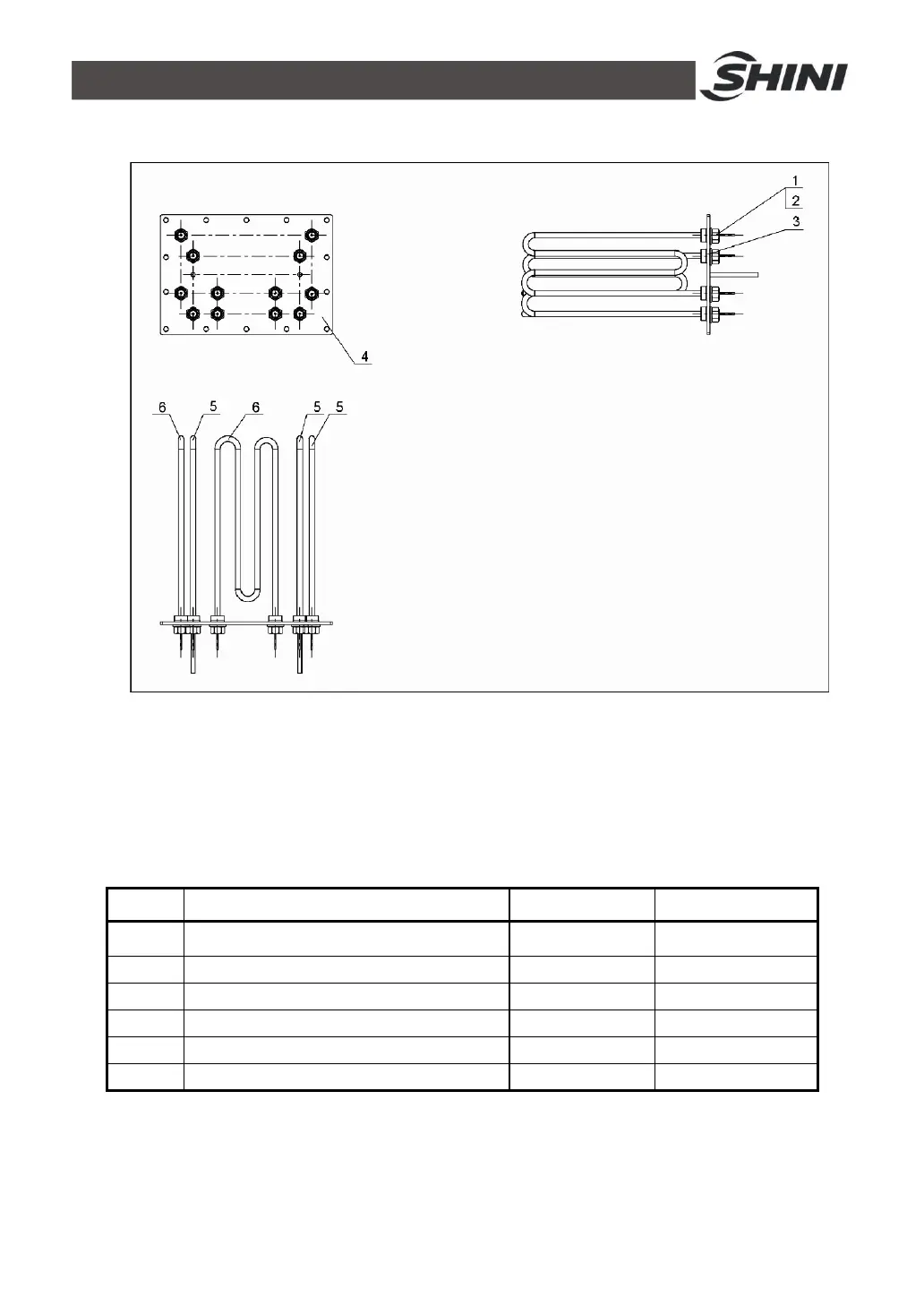

Picture 2-6：Pipe Heater Assembly Drawing (STM-907W/O)
2.2.10 Pipe Heater Parts List (STM-907W/O)
Table 2-5：Pipe Heater Parts List (STM-907W/O)
No.
Name Quantity Parts No.
1 Pipe heater nut
12 BH10060702010
2 Flat washer 12 12 YW66122400000
3 Pipe heater graphite washer ** 12 YR20607240000
4 Pipe heater mounting plate 1 -
5 Pipe heater 2 3 BH70090700150
6 Pipe heater 1 3 -
* means possible broken parts. ** means easy broken part. and spare backup is suggested.
Please confirm the version of manual before placing the purchase order to guarantee that the item
number of the spare part is in accordance with the real object.
