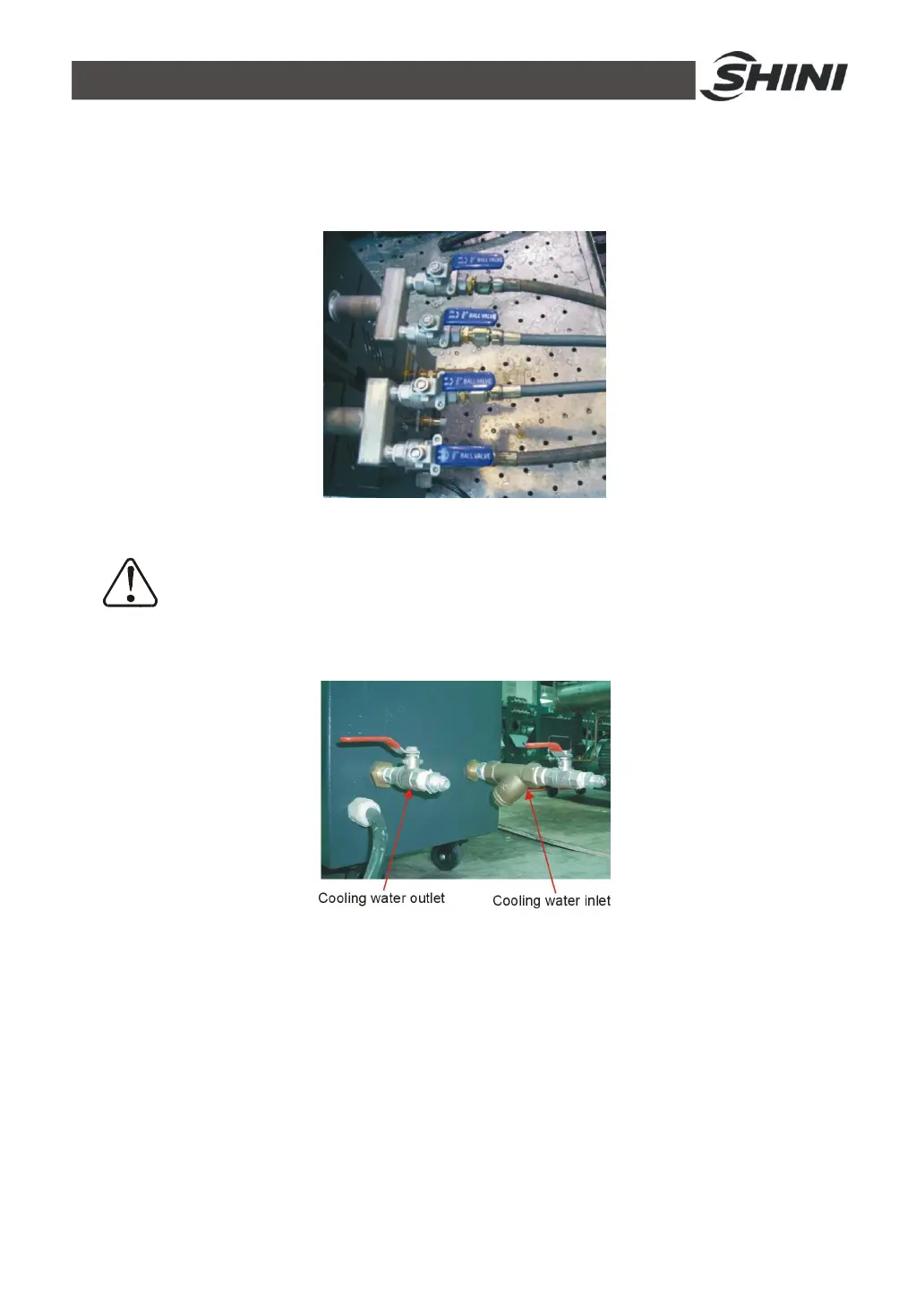

Picture 3-2：Mould and Water Coupling 1
2) Unused mould couplings can be connected with each other by a teflon pipe,
as shown in.
Picture 3-3：Mould and Water Coupling 2
Note!
Cooling water inlet and outlet as shown by the picture 3-4.
Picture 3-4：Mould and Water Coupling 3
3) Connect cooling water inlet with water supply and cooling water outlet with a
drainage pipe. After that, turn on water supply.
3.3 Power Supply
Make sure that power supply is the same as required before installation.
Mould heater are generally set to be used with 3Ф 400VAC power supply or
other specifications according to customers' requirement.
