Shop fox D4902 - Assembly

-10-
Model D4902 (For Machines Mfd. Since 11/18)
SETUP
Assembly
To assemble tenoning jig, do these steps:
1. Attach clamp brace to back of side support using (1)
M10-1.5 x 20 cap screw with 10mm lock washer, and
(1) M10-1.5 x 25 cap screw with 10mm lock washer,
as shown in Figure 2.
Note: These cap screws are different lengths and
must be installed in the correct holes, as shown in
Figure 2.

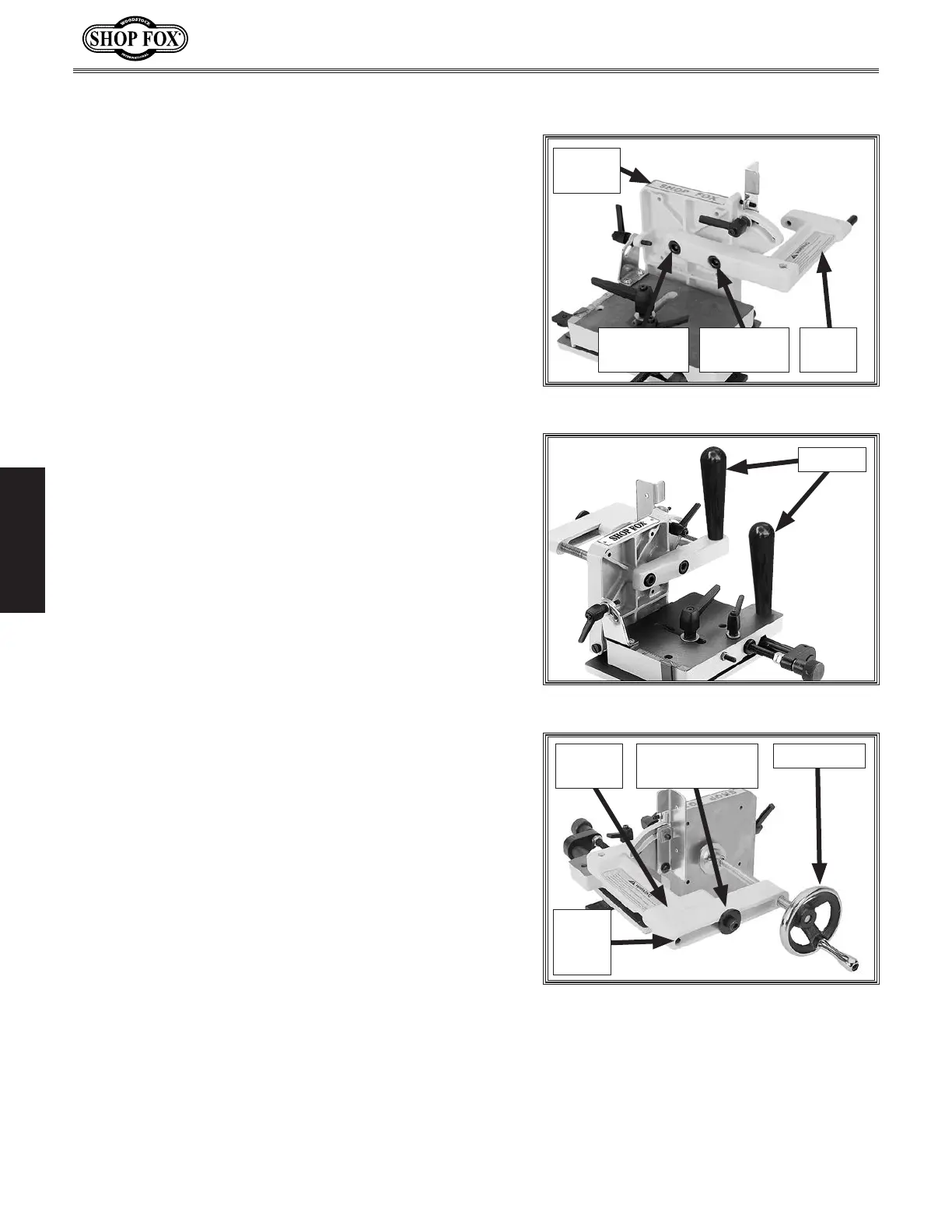

Figure 2. Clamp brace installed.
Side
Support
25mm Cap
Screw
20mm Cap
Screw
Clamp
Brace
Figure 3. Handles installed.
Handles
Figure 4. Clamp bracket and handwheel
installed.
Clamp
Brace
Rod
HandwheelClamp
Bracket
Cap Screw &
Fender Washer
2. Install handles into threaded holes on clamp brace
and slide plate, as shown in Figure 3.
3. Slide clamp bracket over clamp brace rod, as shown
in Figure 4, then secure it with (1) M8-1.25 x 50 cap
screw and (1) 8mm fender washer.
4. Align set screw in hub of handwheel (see Figure 4)
with flat of clamp shaft, then slide handwheel onto
shaft and tighten set screw.
