-11-
Model D4902 (For Machines Mfd. Since 11/18)
SETUP

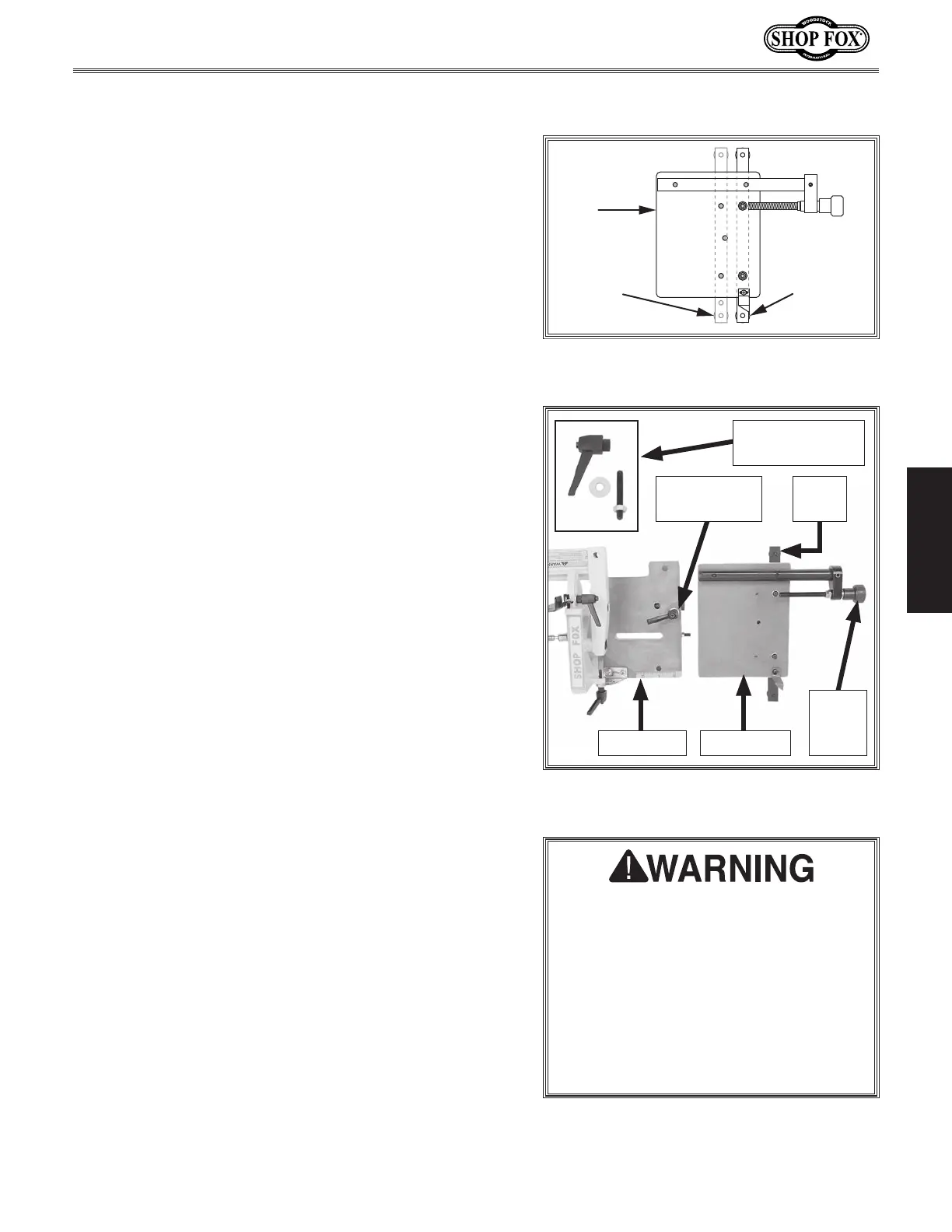

Re-Mounting Guide Bar
The guide bar can be mounted to the slide plate in two
positions (see Figure 5), depending on the distance
between the left-hand miter slot of the table and the
blade. The jig ships with the guide bar mounted in the
outward position. If the jig needs to be farther from the
blade, you will need to mount the guide bar in the inward
position.
Guide Bar
Inward
Mounting
Position
Slide
Plate
Guide Bar
Outward
Mounting
Position
Figure 5. Guide bar mounted to slide
plate.
The jig must be mounted on the table
so that the side support cannot come
in contact with the blade. The jig side
support must stay at least
1
⁄2" away
from the blade at all times during
operation. If the side support should
make contact with the blade during
operation, serious personal injury
could result. At best, the blade and jig
will be damaged.
To re-mount guide bar in inward position, do these
steps:
1. Remove slide plate lock lever and flat washer, then
un-thread the M8-1.25 x 55 set screw the lock lever
was attached to (see Figure 6).
Note: The set screw will fall between the slide and
base plates and will be accessible in the following
steps.
2. Loosen micro-adjust lock lever, then rotate micro-
adjust knob counterclockwise to force slide plate to
move and separate from micro-adjust leadscrew, as
shown in Figure 6.
Figure 6. Slide plate and base plates
separated.
Slide Plate Lock
Lever & Parts
Base Plate Slide Plate
Micro-
Adjust
Knob
Micro-Adjust
Lock Lever
Guide
Bar
To Next Page
