-7-
Model D4902 (For Machines Mfd. Since 11/18)
SETUP
Unpacking
SETUP

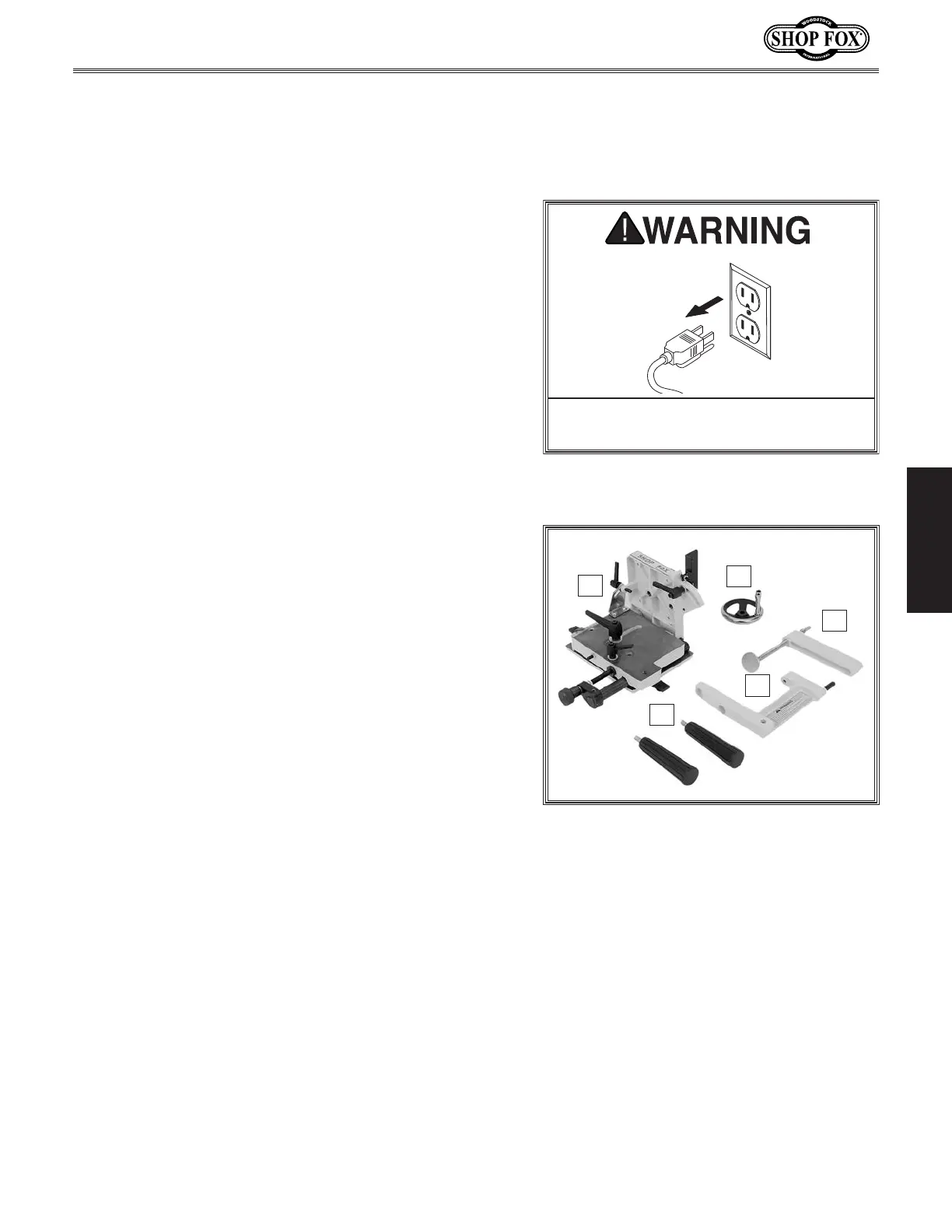

Figure 1. Model D4902 inventory.
A
B
C
D
E
Keep machine disconnected from
power until instructed otherwise.
This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.
Inventory (Figure 1) Qty
A. Tenoning Jig Assembly ....................................1
B. Clamp Handwheel .........................................1
C. Clamp Shoe & Bracket ....................................1
D. Clamp Brace ................................................1
E. Handles ......................................................2
Hardware & Tools (not shown) Qty
• Lock Washers 10mm .......................................2
• Fender Washer 8mm ......................................1
• Cap Screw M8-1.25 x 50 ..................................1
• Cap Screw M10-1.5 x 25 ..................................1
• Cap Screw M10-1.5 x 20 ..................................1
• Hex Wrenches 2.5, 3, 4, 6, 8mm ................ 1 Each
Inventory
The following is a list of items shipped with your machine.
Before beginning setup, lay these items out and inventory
them.
Note:
If you cannot find an item on this list, carefully
check around/inside the machine and packaging materials.
Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.
Needed for Setup
The following items are needed, but not included, for the
setup/assembly of this machine.
Description Qty
• Square 90° ..................................................1
• Shop Rags & Solvent .......................... As Needed
• Phillips Screwdriver #2 ...................................1
• Hex Wrench
3
⁄16" ...........................................1
• Open-End Wrench 8mm ...................................1
• Open-End Wrench 10mm .................................1
• Machinist's Square .........................................1
