-3-
Model D4902 (For Machines Mfd. Since 11/18)
INTRODUCTION
The D4902 Tenoning Jig is designed to work with most
table saws. Use the table saw requirements listed below
to verify that your table saw will work with the tenoning
jig.
Table Saw Miter Slot .................. Standard
3
⁄4" w/T-Slot
Distance from Miter Slot Center to Blade:
Minimum ..................................................... 3
3
⁄4"
Maximum .................................................... 6
3
⁄4"
Table Saw Requirements

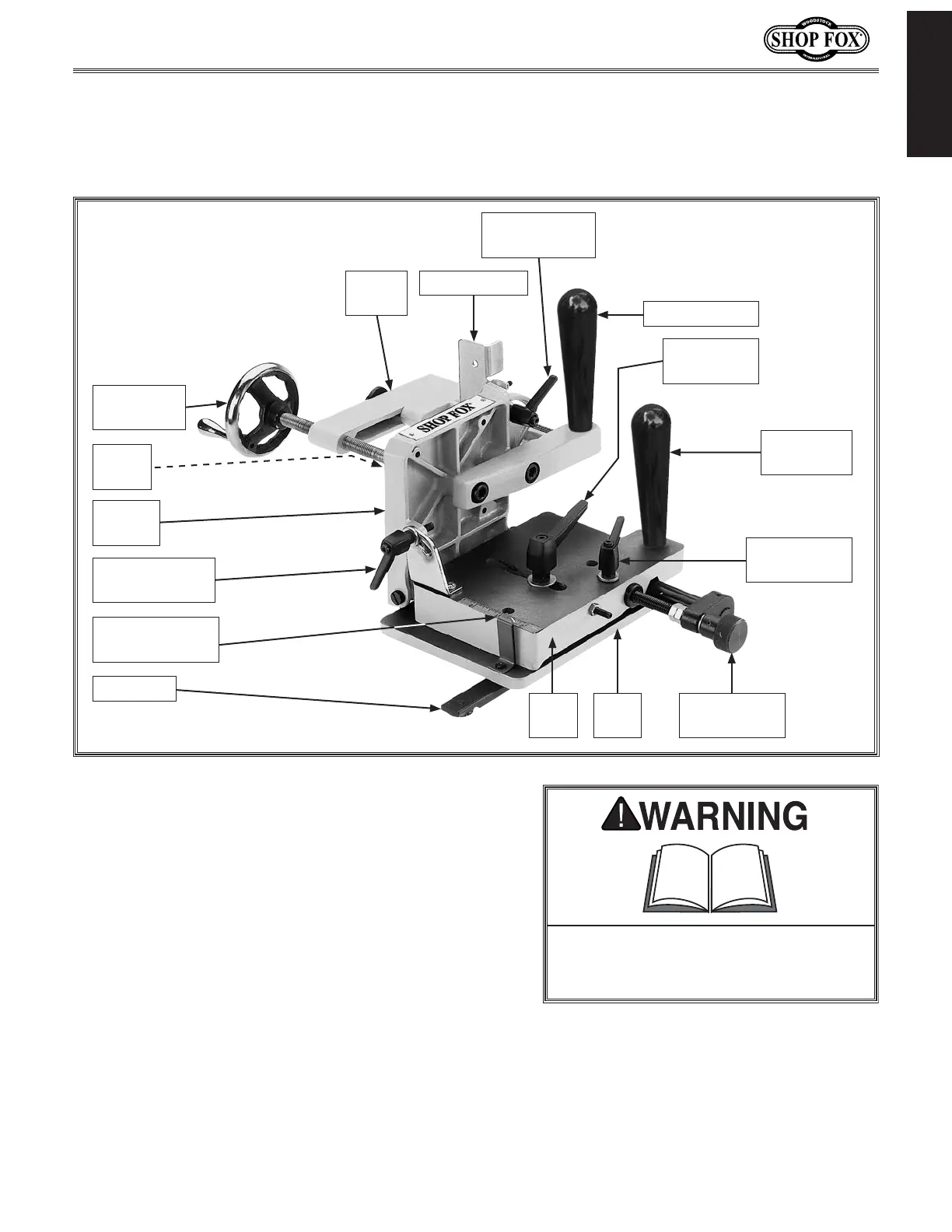

Identification
Become familiar with the names and locations of the controls and features shown below to better
understand the instructions in this manual.
To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.
Clamp
Handwheel
Side Support
Tilt Lock Lever
Back Support
Lock Lever
Guide Bar
Depth of Cut
Scale & Pointer
Clamp Handle
Slide Plate
Lock Lever
Back SupportClamp
Brace
Clamp
Shoe
Side
Support
Micro-Adjust
Knob
Base
Plate
Slide
Plate
Micro-Adjust
Lock Lever
Slide Plate
Handle
