ADM-860C 04/14/086
External Read Jack for
Pushbutton Handle Plug
Pushbutton Reset Switch
10 Digit, 0.4" LCD Display
SHIFT Activates Upper Half of Keys
MODE Flow/Pres/Temp/VLG/AFP/Pitot/Abs
Battery Charger Jack
RS232 Serial Port Jack
UNITS English/Metric
GRN LED Indicates if charger is plugged in
CLEAR
Clear Memory/Trend
STORE Memory/Average/Total
READ Read/Halt Trend Readings
RCL
< Recall in Entry Order
= RCL Recall in Reverse Order
OFF
Power Off after Shift
ON Power On/Turn Light On & Off
Positive (+) Pressure Port
Negative (-) Pressure Port
Flaps Jack for FlowHood Flaps Plug
Threaded Insert for Attachment to FlowHood
with Captive Screw
Calibration Label with Serial Number & Date
Temperature Input Jack for TemProbe,
Retractile Cord or MultiTemp
Battery Compartment Cover - Remove the 8
Small Phillips Head Screws to Test or Replace
the Batteries (12 AA NICAD)
Four Large Phillips Head Screws That Hold
the Meter Case Together - DO NOT REMOVE

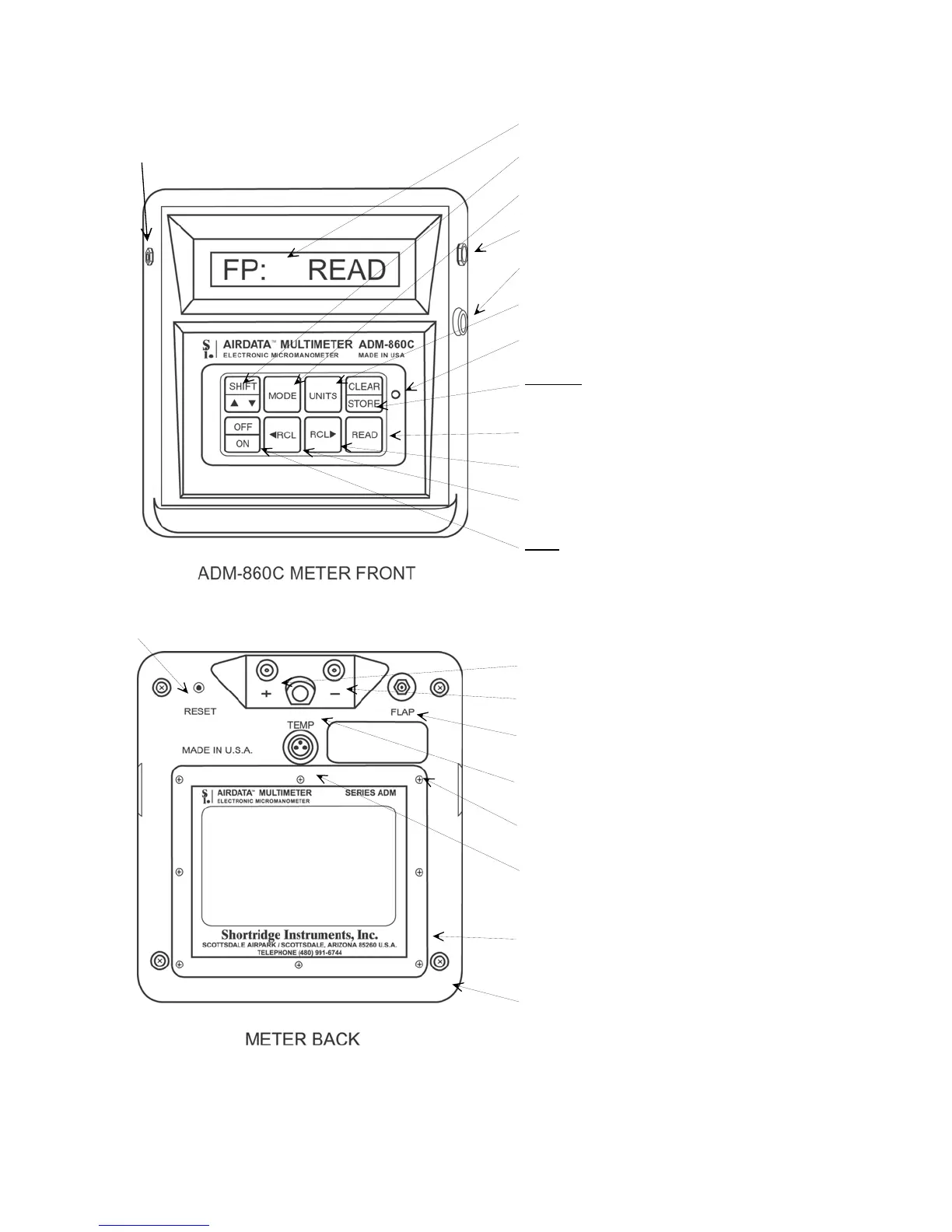

FIGURE 3.1 ADM-860C METER FRONT AND BACK
