ADM-870C 07/14/096
External Read Jack for
Pushbutton Handle Plug
Pushbutton Reset
10 Digit, 0.4" LCD Display
SHIFT Activates Upper Half of Keys
DENS
Local/Standard Density
MODE Flow/Press/Temp/VLG/AFP/Pitot
Battery Charger Jack
RS232 Serial Port Jack
UNITS
English/Metric
ASSOC Associated Press & Temp
GRN LED Indicates if charger is plugged in
CLEAR
Clear Memory/Auto/Trend
STORE Memory/Average/Total/Max/Min
AUTO
Automatic or TREND Readings
READ Read/Halt
RCL
< Recall in Entry Order
= RCL Recall in Reverse Order
OFF
Power Off after Shift
ON Power On/ Turn Light On & Off
Positive (+) Pressure Port
Negative (-) Pressure Port
Flaps Jack for FlowHood Flaps Plug
Threaded Insert for Attachment to FlowHood
with Captive Screw
Calibration Label with Serial Number & Date
Temperature Input Jack for TemProbe,
Retractile Cord or MultiTemp
Battery Compartment Cover - Remove the 8
Small Phillips Head Screws to Test or Replace the
Batteries (12 AA NICAD)
Four Large Phillips Head Screws That Hold
the Meter Case Together - DO NOT REMOVE

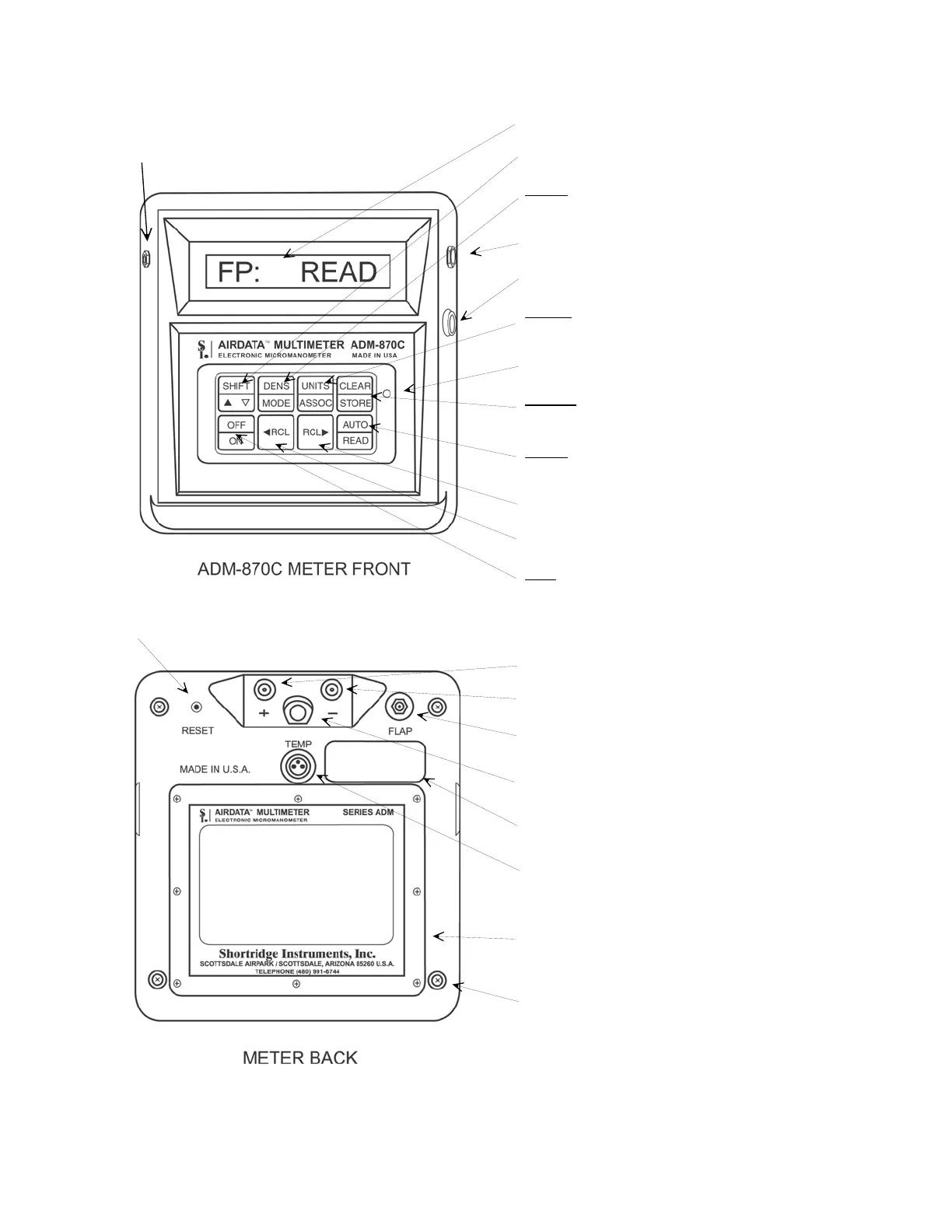

FIGURE 3.1 ADM-870C METER FRONT AND BACK
