SHOWTEC compact par 7 MKII User Manual

10
Ordercode: 42595
Compact Par 7 MKII
Multiple Compact Pars (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-p XLR cable to connect the Compact Par 7 MKII and other devices.
05) Link the units as shown in (figure 04), Connect a DMX signal cable from the first unit's DMX "out" socket
to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.

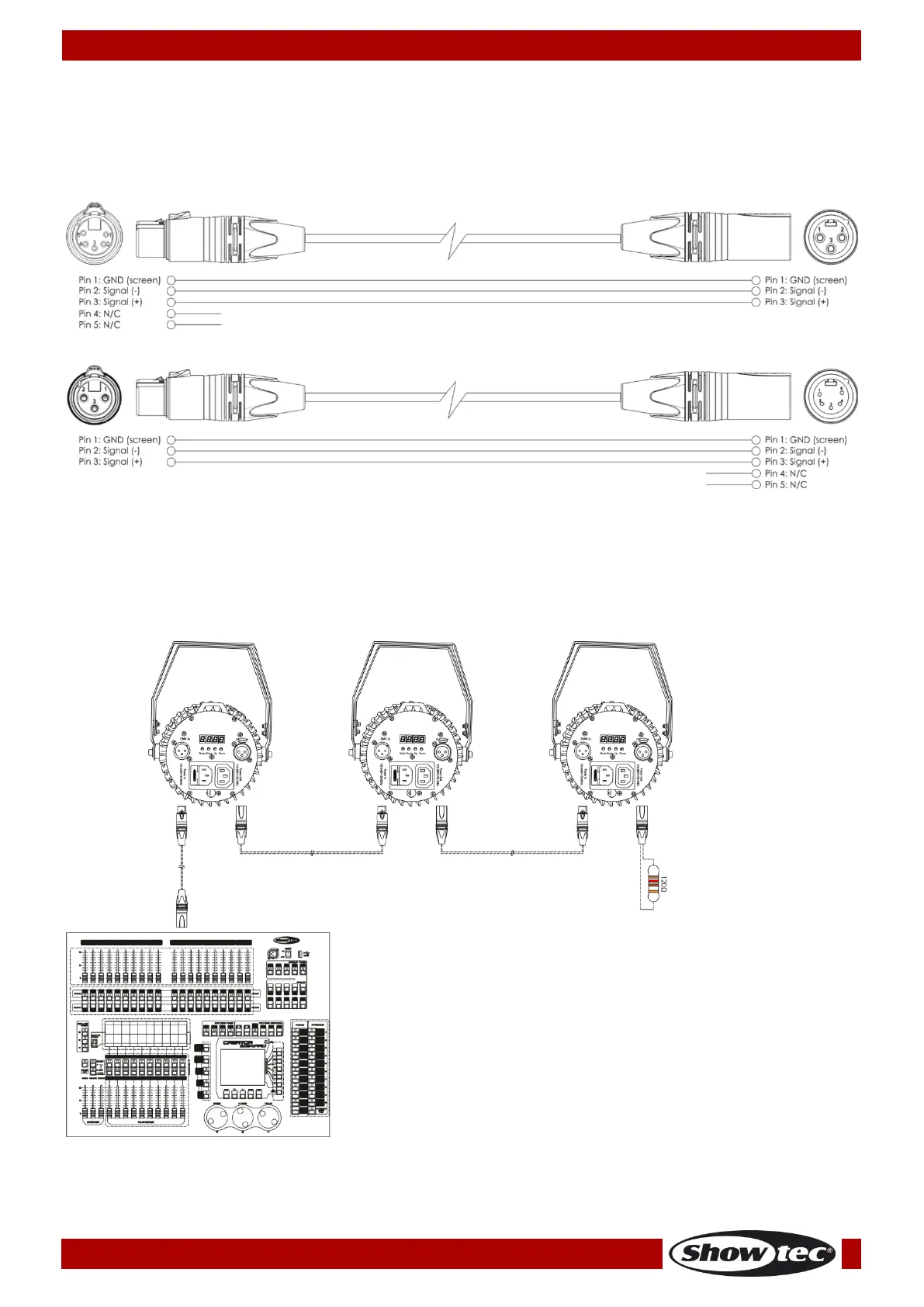

Multiple Compact Pars DMX Set Up
Fig. 04
Note : Link all cables before connecting electric power

SHOWTEC compact par 7 MKII Specifications

General

Brand	SHOWTEC
Model	compact par 7 MKII
Category	Flood Light
Language	English
