SHOWTEC compact par 7 MKII User Manual

8
Ordercode: 42595
Compact Par 7 MKII

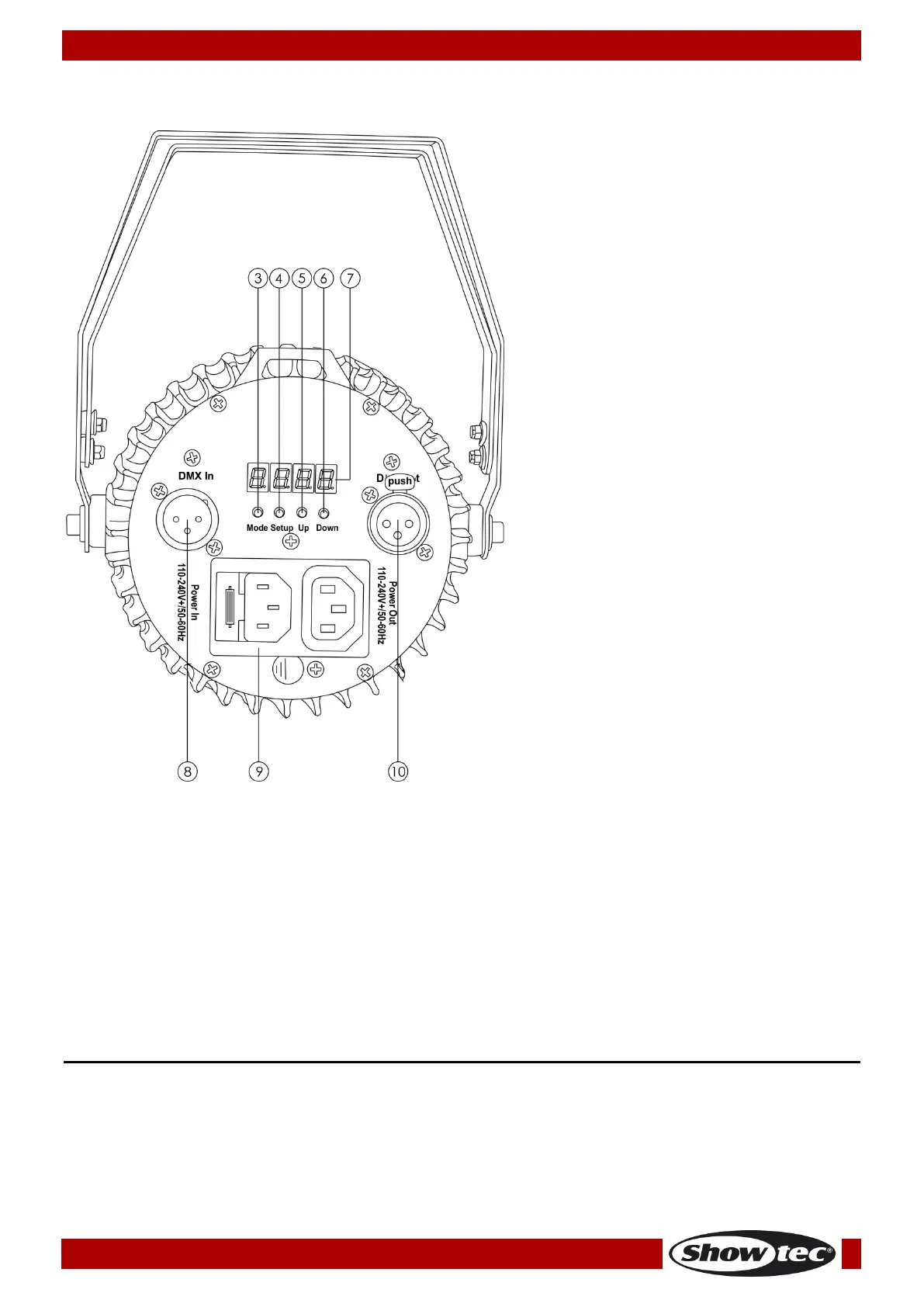

Backside
Fig.02
03) Mode Button
04) Setup Button
05) Up Button
06) Down Button
07) LCD Display
08) DMX signal connector (IN)
09) IEC powercable IN, IEC powercable OUT for linking and Fuse T1AL/250V
10) DMX signal connector (OUT)
NOTE: Knowledge of DMX is required to fully utilize this unit.
Installation
Remove all packing materials from the Compact Par 7 MKII. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

SHOWTEC compact par 7 MKII Specifications

General

Brand	SHOWTEC
Model	compact par 7 MKII
Category	Flood Light
Language	English
