14) Channel 5 circuit breaker
circuit breaker will cut off the power supply if the load current exceeds 10A
15) Channel 6 indicator
This indicator lights if there is no load connected
16) Channel 6 circuit breaker
circuit breaker will cut off the power supply if the load current exceeds 10A
17) DMX channel Dip switch
These switches are used to set the DMX start channel
18) Channel 1-6 dimmer control
Use to adjust the according dimmer level
19) Power switch

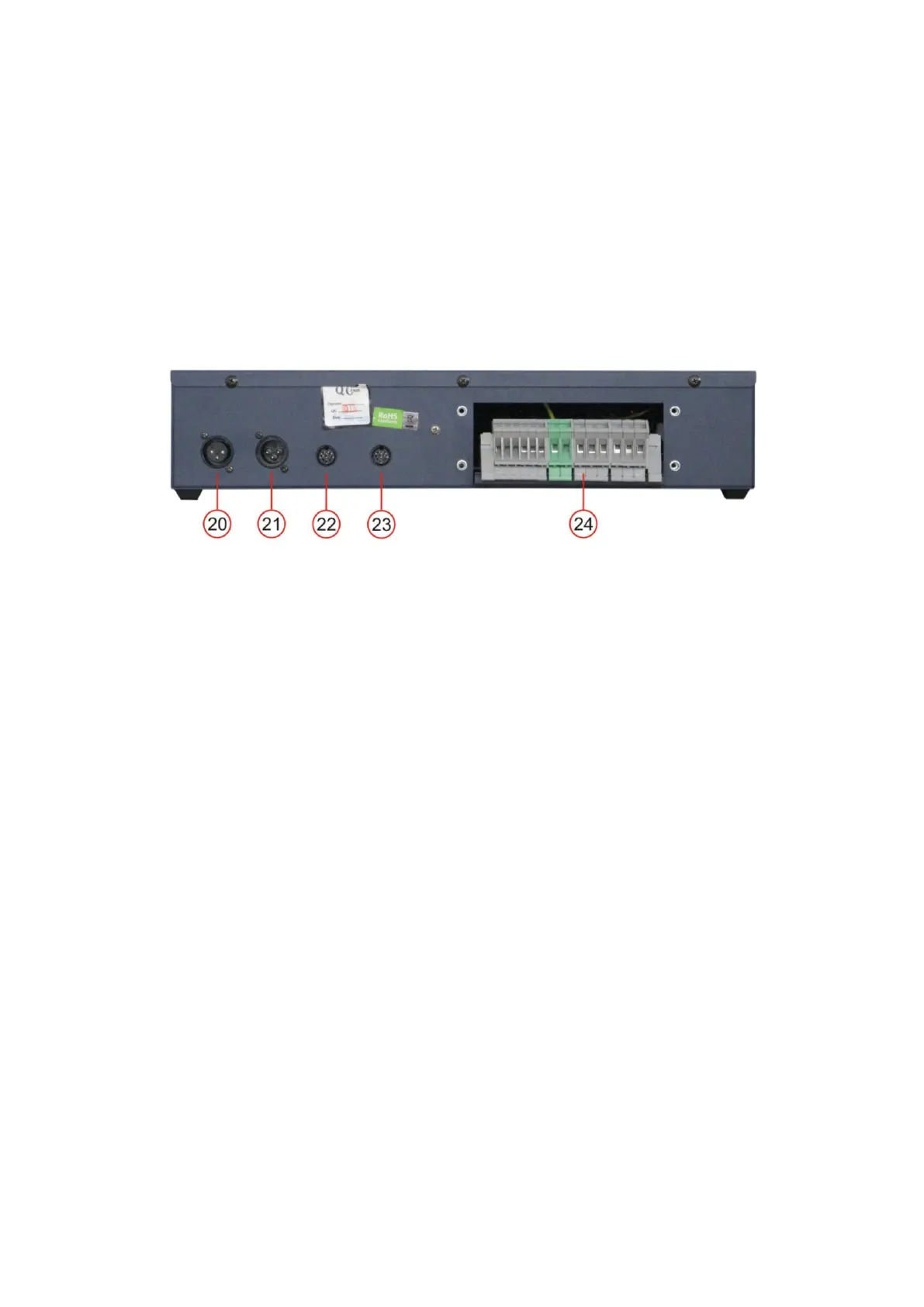

Backside
Fig. 2
20) 3-pin DMX output connector
21) 3-pin DMX input connector
22) ANALOG input port (8-pin DIN socket)
23) ANALOG output port (8-pin DIN socket)
24) Output wiring port
