Installation
Remove all packing materials from the D-Pack 6 Classic. Check that all foam and plastic padding is
removed. Screw the equipment into a 19" rack. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Fig. 3
Unplug the unit from mains before making any connections
Connecting the in and outputs

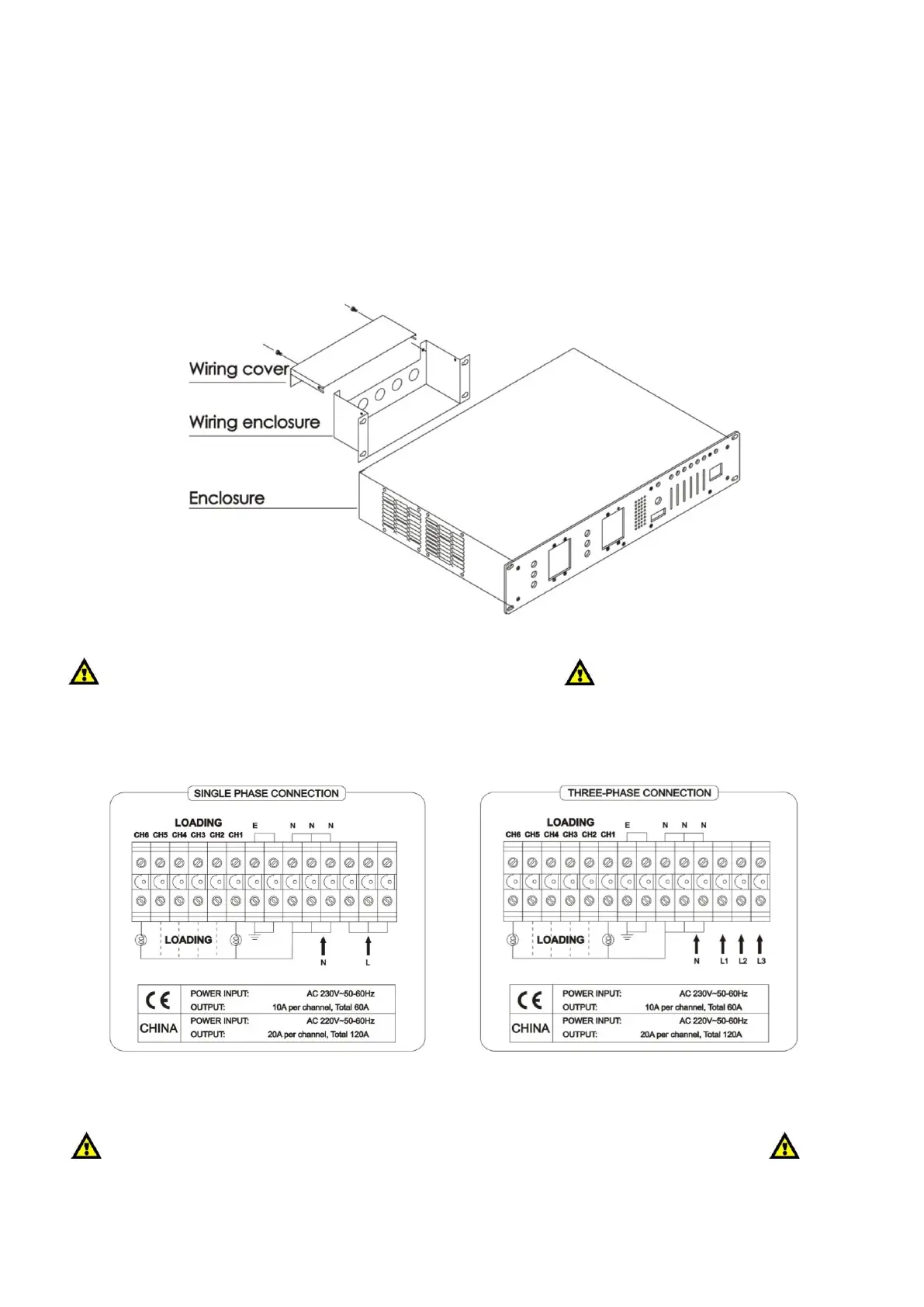

The terminal block is located behind the wiring enclosure/cover. For proper connections see figure 4.
Fig. 4
Make sure to mount the wiring enclosure/cover again before connecting to the mains
