SHOWTEC Kanjo Spot 10 V1 User Manual

9
Ordercode: 45010
Kanjo Spot 10
Installation
Remove all packing materials from the Kanjo Spot 10. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
Control Modes
There are 5 modes:
• Stand-alone (Auto)
• Manual
• Sound-controlled
• Master/Slave
• DMX-512 (11CH)
One Kanjo (Auto and Manual)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Kanjo is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 15 and 16 for more information about the Auto Mode and Manual Mode.
One Kanjo (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Kanjo will react to the beat of the
music. Please see page 15 for more information about the sound-control options.
Multiple Kanjos (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the Kanjo.

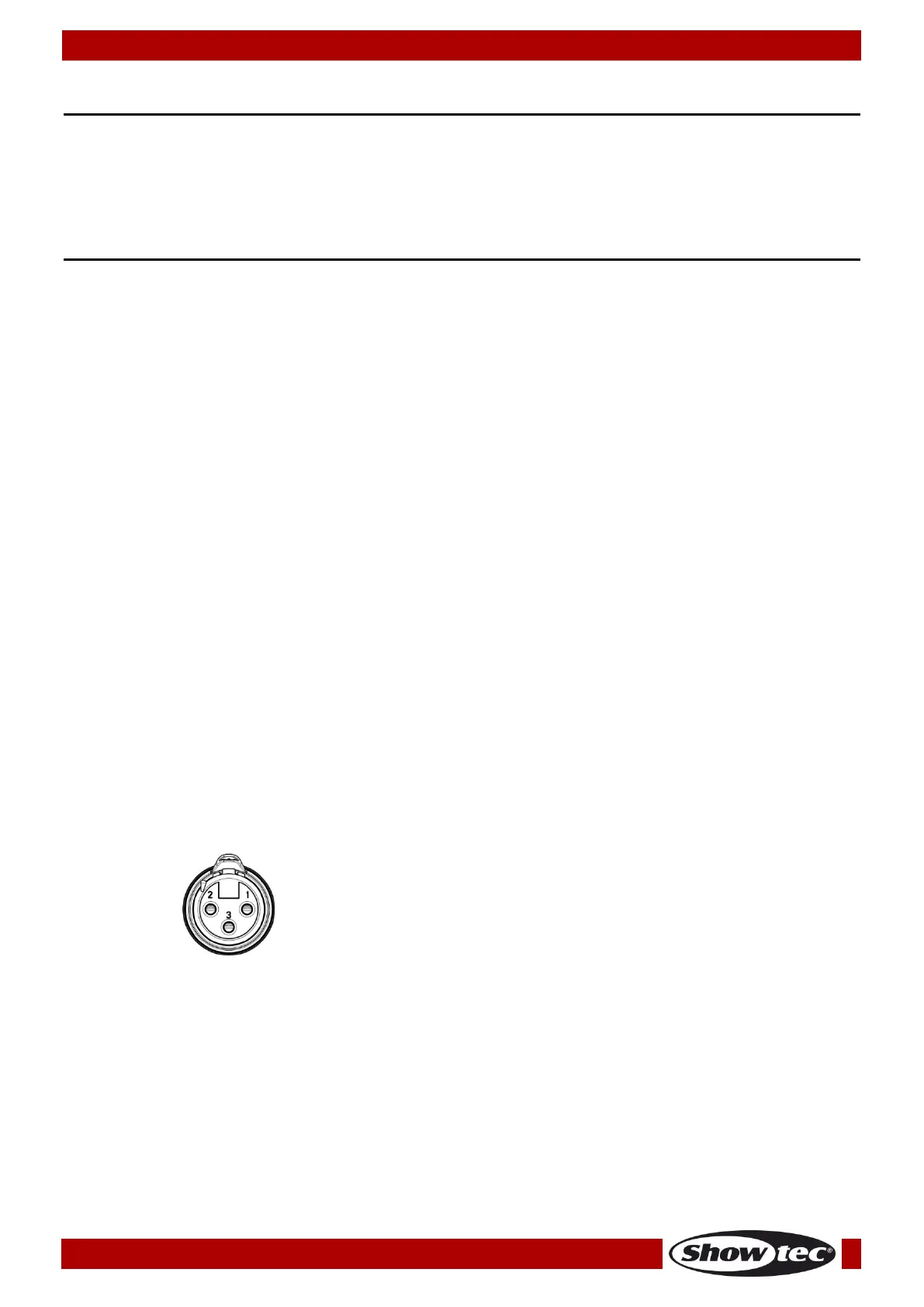

The pins:
01) Earth
02) Signal -
03) Signal +
03) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on page 15 (Auto Mode or
Sound-controlled Mode). This means that you can set your desired operation mode on the master
device and all slave devices will react the same as the master device.

SHOWTEC Kanjo Spot 10 V1 Specifications

General

Brand	SHOWTEC
Model	Kanjo Spot 10 V1
Category	Light Fixture
Language	English
