SHOWTEC Kanjo Spot 10 V1 User Manual

17
Ordercode: 45010
Kanjo Spot 10

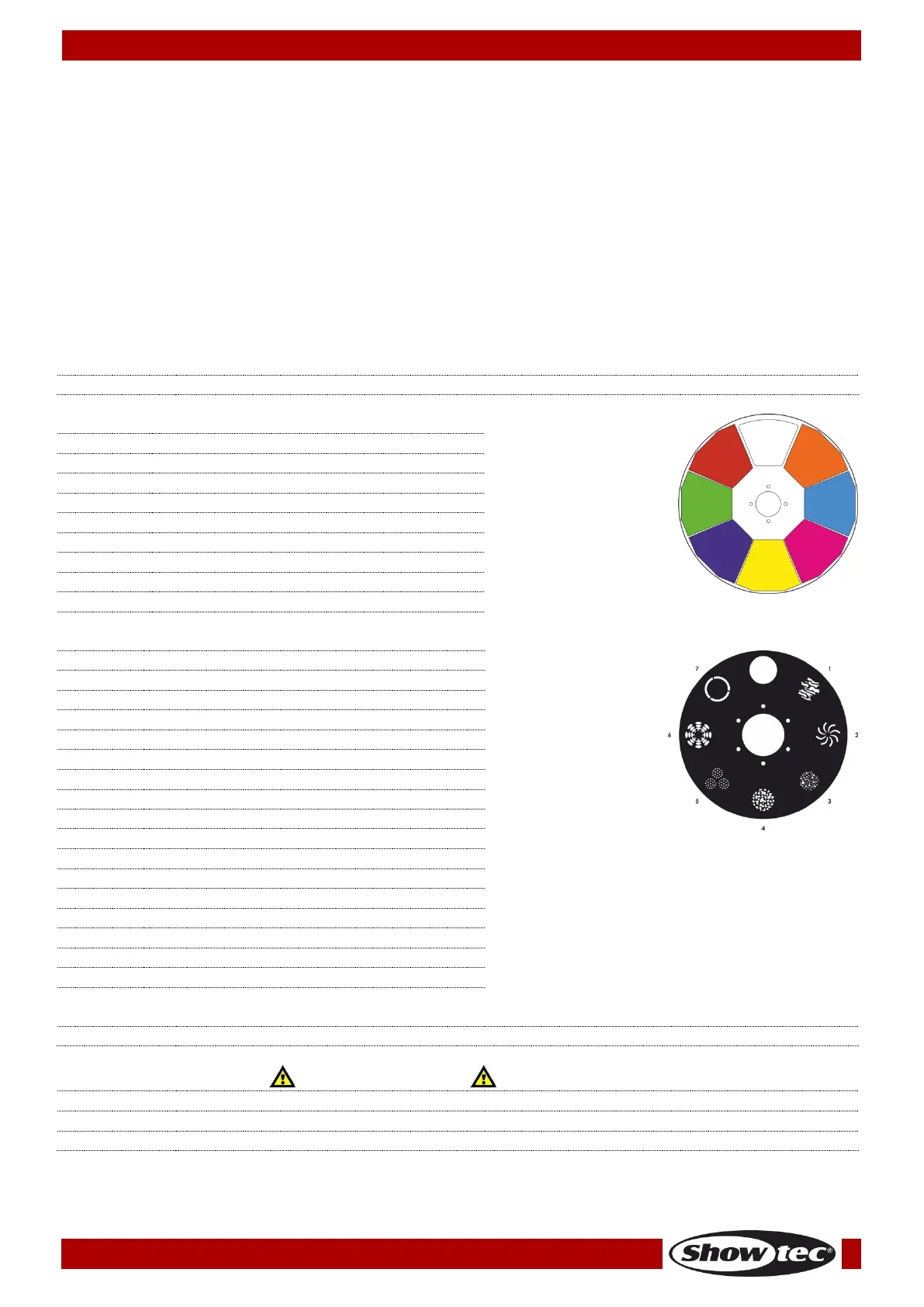

DMX Channels
8 channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 230° and stopped at any position you wish.
Channel 3 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 4 – Color Wheel
0-15
White
16-31
Red
32-47
Green
48-63
Blue
64-79
Yellow
80-95
Purple
96-111
Cyan
112-127
Orange
128-255
Color rotation, from slow to fast
Channel 5 – Static Gobo Wheel + Gobo shake
0-7
Off
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-127
Gobo rotation, from slow to fast
128-143
Not functional
144-159
Gobo 1 shake effect, from slow to fast
160-175
Gobo 2 shake effect, from slow to fast
176-191
Gobo 3 shake effect, from slow to fast
192-207
Gobo 4 shake effect, from slow to fast
208-223
Gobo 5 shake effect, from slow to fast
224-239
Gobo 6 shake effect, from slow to fast
240-255
Gobo 7 shake effect, from slow to fast
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to bright
Channel 7 – Strobe/Shutter Dimmer must be open
0-7
Off
8-127
Strobe ON, from slow to fast
128-255
Strobe auto effect, from slow to fast
