SHOWTEC LED Light Bar 16 - Connection with the Mains

Ordercode: 42198
LED Light Bar 16

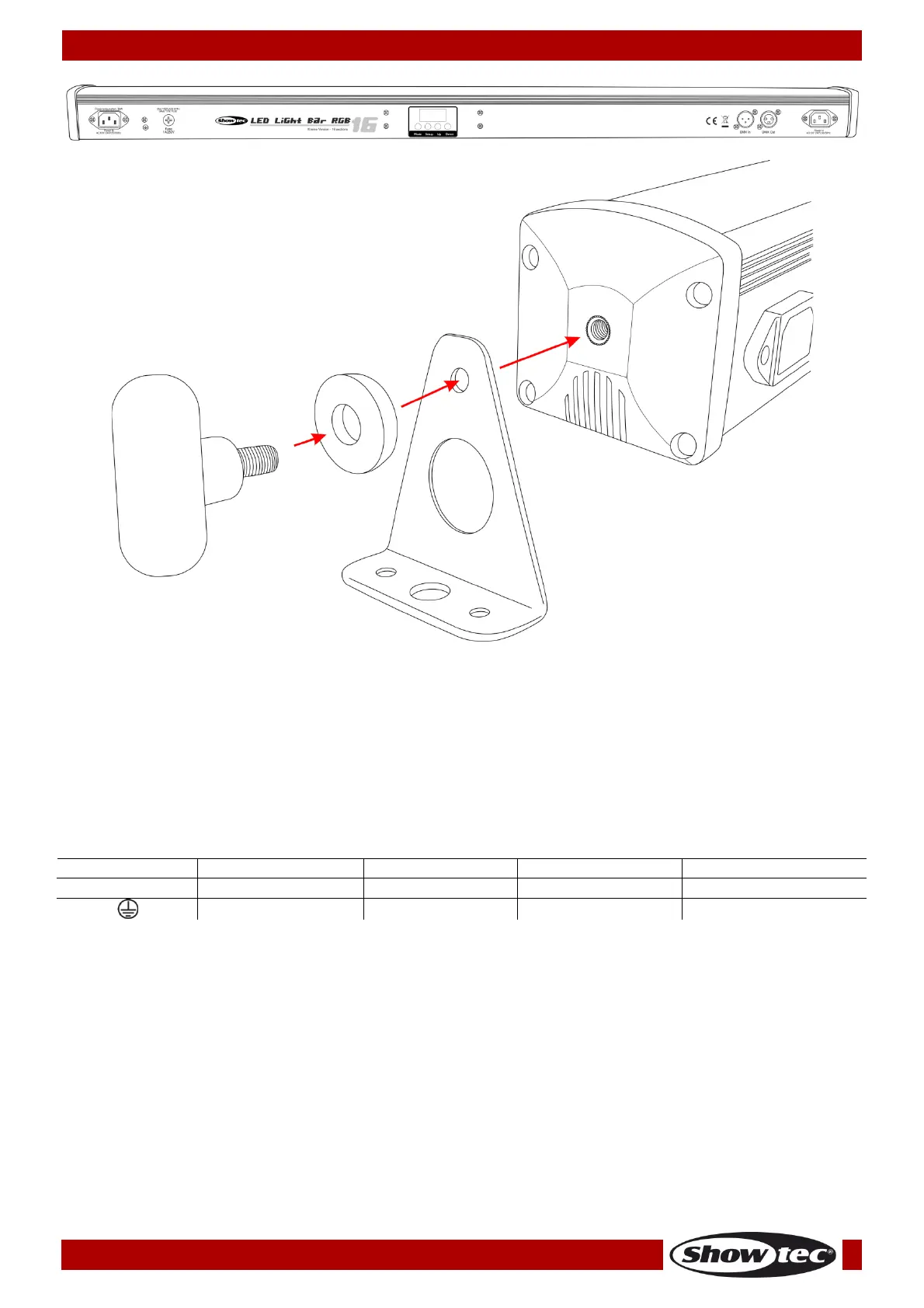

The LED Light Bar 16 can be placed on a flat stage floor or mounted to any kind of truss with the
mounting brackets and adjustment screws.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
