Description of the device
Features
The LED Light Bar 16 is a LED bar effect with high output and great effects.
• Input voltage: 100-240V, 60/50Hz
• Power consumption: 30W
• Light source: 240 x 10 mm RGB LED
• Output@2m: 613,3lux
• DMX channels: 3, 5, 6, 12, 24, 48
• Clear 4-digit LED display for easy setup
• Control modes: Built-in programs, Auto, Sound-controlled, Master/Slave, DMX-512 Mode, Static Color
• Control protocol: DMX-512
• 3-pin DMX signal connector IN/OUT
• Dimmer: 100%
• Strobe: 0-20Hz
• Beam Angle: 30°
• IP rating: IP20
• Housing: Metal & Flame retardant plastic
• Fuse: T1L/250V
• Dimensions: 1010 x 71 x 65 mm (LxWxH)
• Weight: 1,7 kg

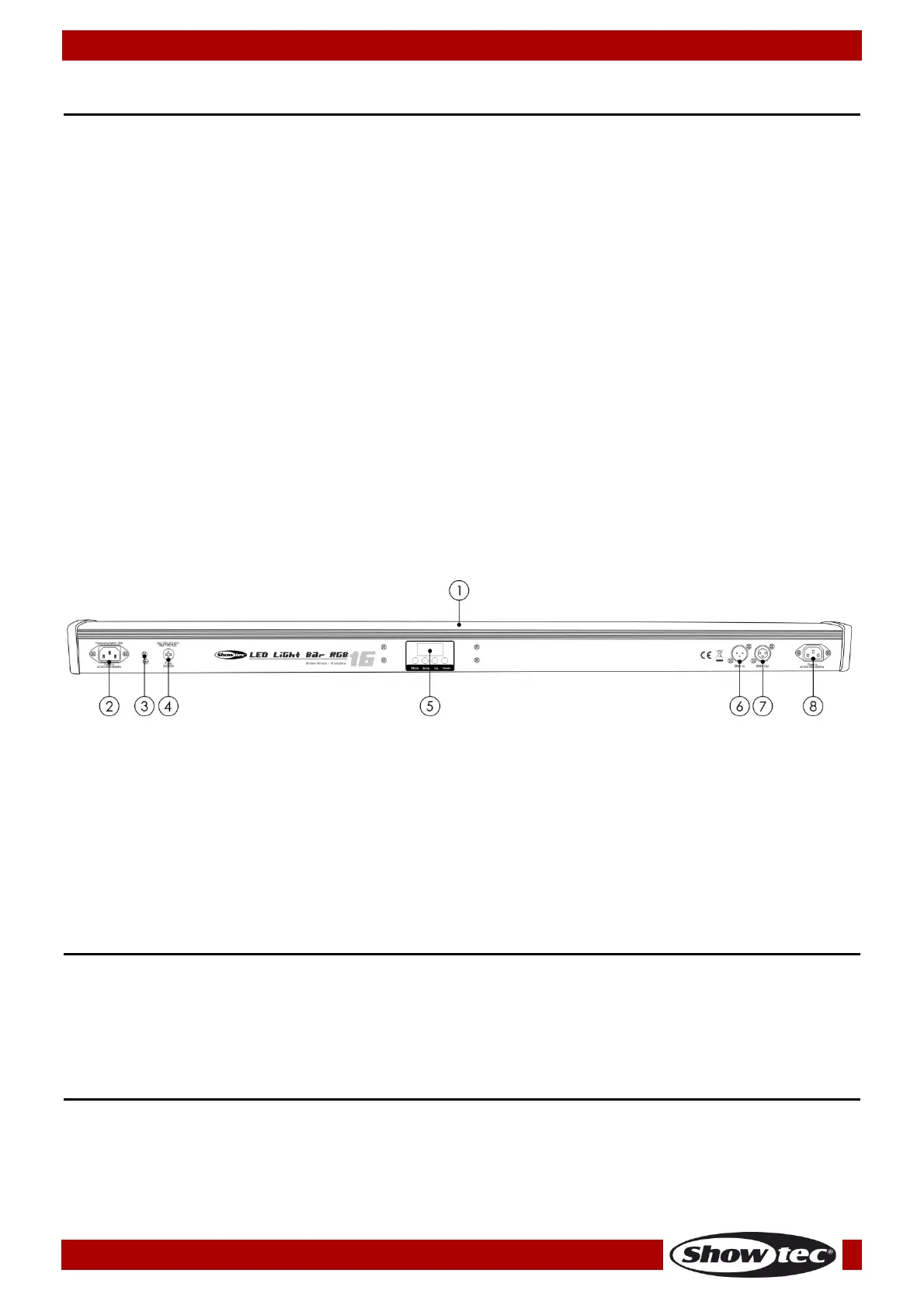

Overview
01) 240 x 10 mm RGB LED
02) IEC power connector 100-240V IN
03) Ground/earth connection
04) Fuse T1L/250V
05) 4-digit LED display + control buttons
06) 3-pin DMX signal connector IN
07) 3-pin DMX signal connector OUT
08) IEC power connector 100-240V OUT
Installation
Remove all packing materials from the LED Light Bar 16. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
